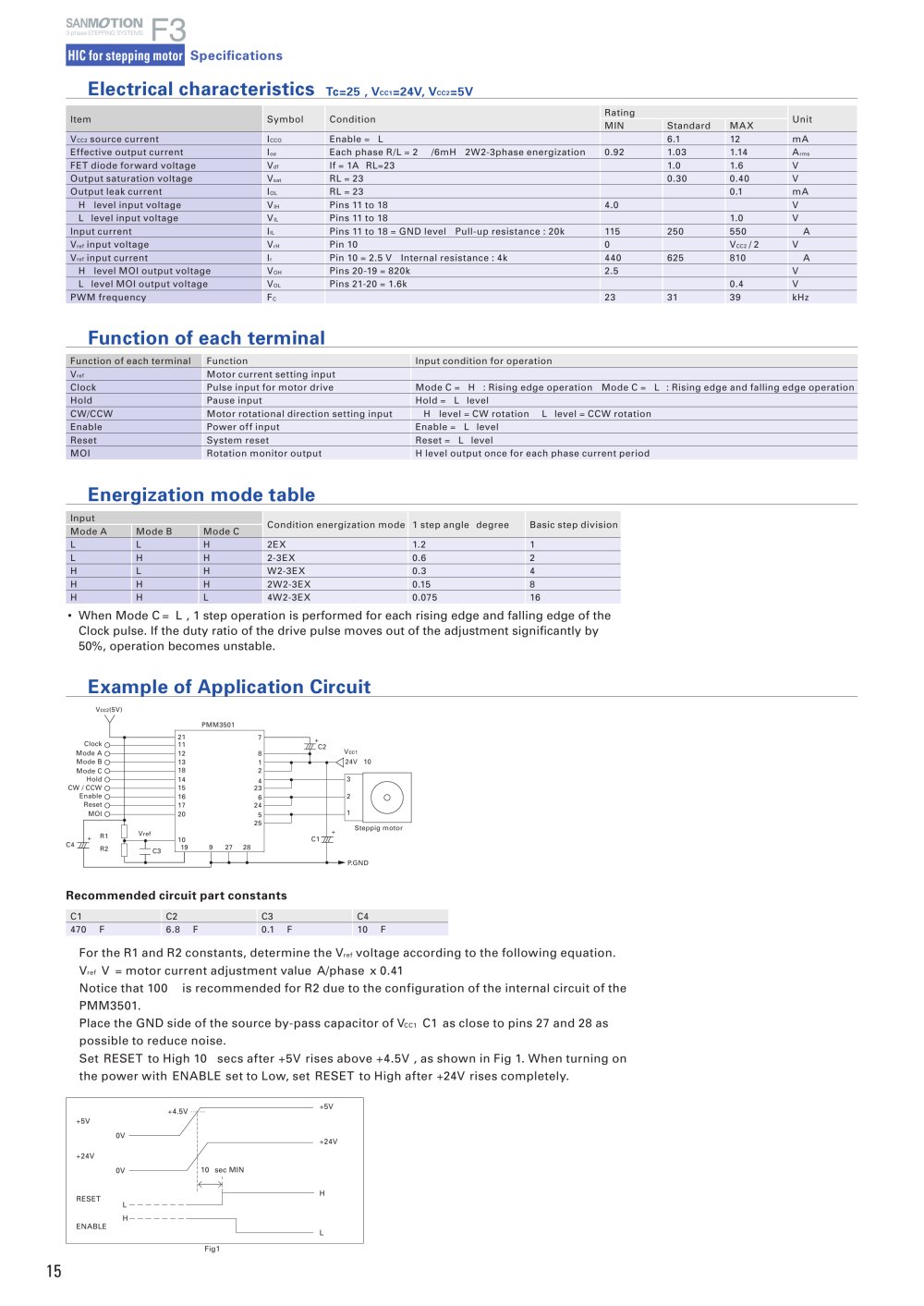

SANM0TION

3-phase STEPPING SYSTEMS

HIC for stepping motor

Specifications

■ Electrical characteristics ac=25°,Vm=24V, v«2=5v)


Item	Symbol	Condition	Rating min	Standard MAX ^nit
Vcc2 source current	Icco	Enable = "L"	-	6.1 12 mA
Effective output current	lo.	Each phase R/L = 2 G /6mH 2W2-3phase energization	0.92	1.03 1.14 Arms
FET diode forward voltage	Vdf	If = 1A(RL=23 G)	-	1.0 1.6 V
Output saturation voltage	Vsat	RL = 23 0	-	0.30 0.40 V
Output leak current	Iol	RL = 23 0	-	- 0.1 mA
"H" level input voltage	VlH	Pins 11 to 18	4.0	-- V
"L" level input voltage	Vil	Pins 11 to 18	-- 1.0 V
Input current	Iil	Pins 11 to 18 = GND level Pull-up resistance : 20k G	115	250 550 U A
Vref input voltage	VrH	Pin 10	0	- VCC2 /2 V
Vref input current	lr	Pin 10 = 2.5 V Internal resistance : 4k G	440	625 810 U A
"H" level MOI output voltage	Voh	Pins 20-19 = 820k G	2.5	-- V
"L" level MOI output voltage	Vol	Pins 21-20 = 1.6k G	-	- 0.4 V
PWM frequency	Fc	-	23	31 39 kHz

■ Function of each terminal

Function of each terminal Function

Input condition for operation

Vr,f

Motor current setting input

Mode C = "H" : Rising edge operation Mode C = "L" : Rising edge and falling edge operation

Pulse input for motor drive

Clock

Hold = "L" level

Hold

Pause input

"H" level = CW rotation "L" level = CCW rotation

CW/CCW

Motor rotational direction setting input

Enable = "L" level

Enable

Power off input

Reset = "L" level

Reset

System reset

MOI

Rotation monitor output

H level output once for each phase current period

■ Energization mode table


Input Mode A Mode B Mode C	Condition energization mode	1 step angle (degree)	Basic step division
LL H 2EX		1.2	1
LH H	2-3EX	0.6	2
HL H	W2-3EX	0.3	4
HH H	2W2-3EX	0.15	8
HH L	4W2-3EX	0.075	16

When Mode C = "L", 1 step operation is performed for each rising edge and falling edge of the Clock pulse. If the duty ratio of the drive pulse moves out of the adjustment significantly by 50%, operation becomes unstable.

Example of Application Circuit

Vcc2(5V)

PMM3501

Clock o— Mode A Ci-Mode B Ci-Mode C O-Hold O-CW / CCW O-Enableo-Reset o— MOI O-

__i Vor

-•-1-•—<] 24V+109Í.

Steppig motor

Vref

9 27 28

Recommended circuit part constants

c1_c2_c3_c4_

470 U F6.8 U F0.1 U F10 U F

• For the R1 and R2 constants, determine the Vref voltage according to the following equation. Vre(V)= motor current adjustment value(A/phase)x 0.41

Notice that 100 G is recommended for R2 due to the configuration of the internal circuit of the PMM3501.

• Place the GND side of the source by-pass capacitor of Vcd(C1)as close to pins 27 and 28 as possible to reduce noise.

• Set"RESET"to High 10usecs after"+5V"rises above"+4.5V", as shown in Fig 1. When turning on the power with"ENABLE"set to Low, set"RESET"to High after"+24V"rises completely.


		+4.5V -,		+5V
"+5V "		/
	0V -	/
			/	+24V
"+24V "		_/	/
	0V -	-⁷	10usec MIN
"RESET"			" Ì-	H
	l---	------	-
	H---	______
"enable'
				- l

Fig1
