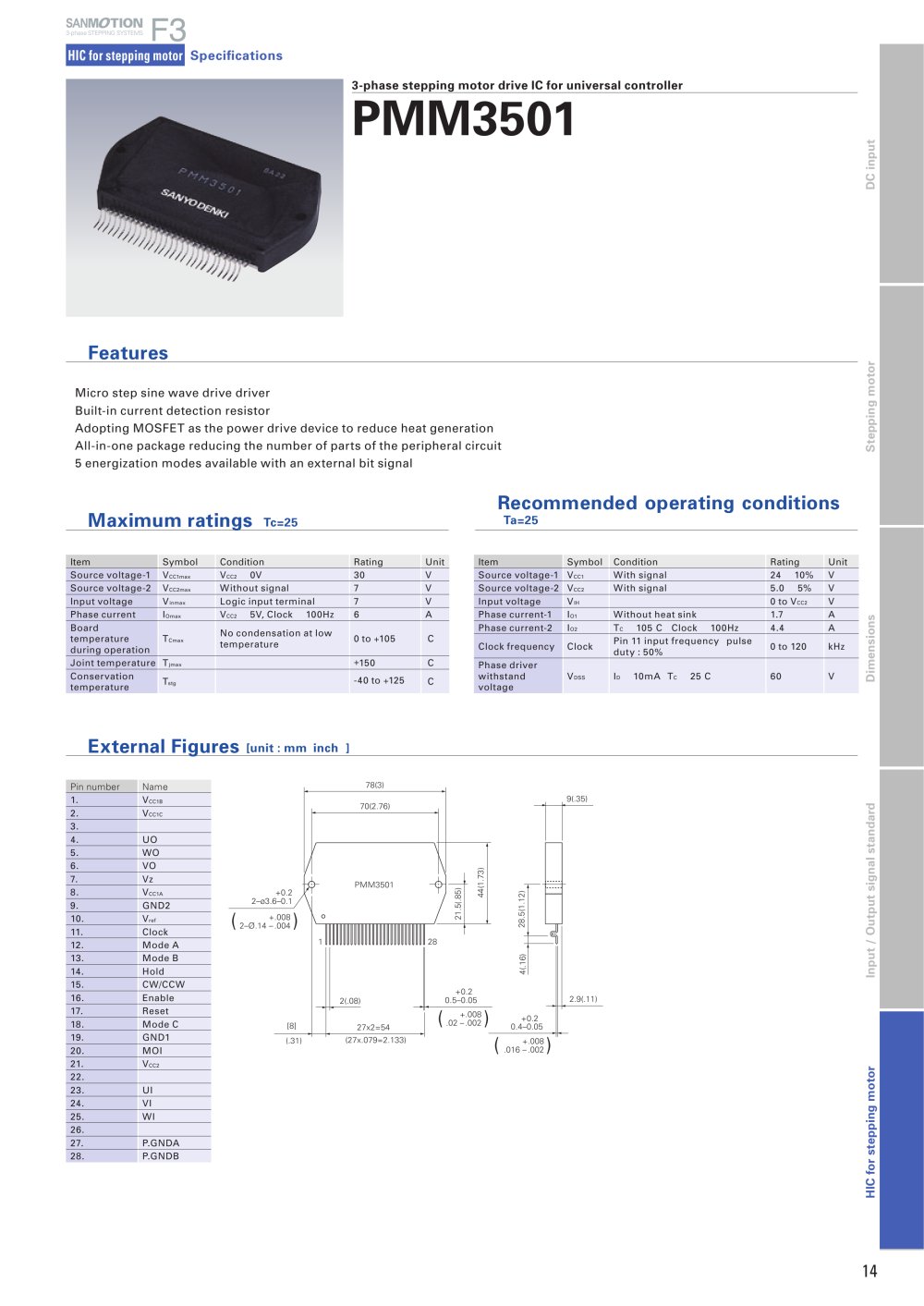

SANM0TION

3-phase STEPPING SYSTEMS

HIC for stepping motor

Specifications

3-phase stepping motor drive IC for universal controller

PMM3501

u p _in

I Features

• Micro step sine wave drive driver

• Built-in current detection resistor

• Adopting MOSFET as the power drive device to reduce heat generation •All-in-one package reducing the number of parts of the peripheral circuit

• 5 energization modes available with an external bit signal

g _pi

operating conditi

Recommended

(Ta=25°)

I Maximum ratings ac=25°)


Item	Symbol	Condition	Rating	Unit	Item	Symbol	Condition	Rating	Unit
Source voltage-1	VcC1max	VcC2 = 0V	30	V	Source voltage-1	Vcci	With signal	24 ± 10%	V
Source voltage-2	VcC2max	Without signal	7	V	Source voltage-2	Vcc2	With signal	5.0 ± 5%	V
Input voltage	Vmmax	Logic input terminal	7	V	Input voltage	Vih	_	0 to VCC2	V
Phase current	lömax	Vcc2 = 5V, Clock Ê 100Hz	6	A	Phase current-1	loi	Without heat sink	1.7	A
Board		No condensation at low temperature			Phase current-2	Io2	Tc = 105"C. Clock Ê 100Hz	4.4	A
temperature during operation	Tcmax	No condensation at low temperature	0 to +105	"C	Clock frequency	Clock	Pin 11 input frequency (pulse duty : 50%)	0 to 120	kHz
Joint temperature	T,max	—	+150	"C	Phase driver
Conservation	Ts«	_	-40 to +125	"C	withstand	Vdss	Id = 10mA (Tc = 25"C)	60	V

temperature

voltage

■ External Figures [unit : mmcinch ) ]

78(3)

9( 35)

70(2.76)

pmm3501

s t

u p

+0 2 2-03 6-0 1 ,

+ 008 ) , 2-0 1 4 - 00 4 )

IIIIHIIHIIIIIHIIHIII

_ut p

+0 2 0 5-0 05

2.9(.11)

2(.08)

/ + 008 \ ( 02 - 002 )

+0 2 0 4-0 05

27x2=54

(27x079 = 2 133)

/ + 008 \ ( 016- 002 )

.31)

m g _in _pi
