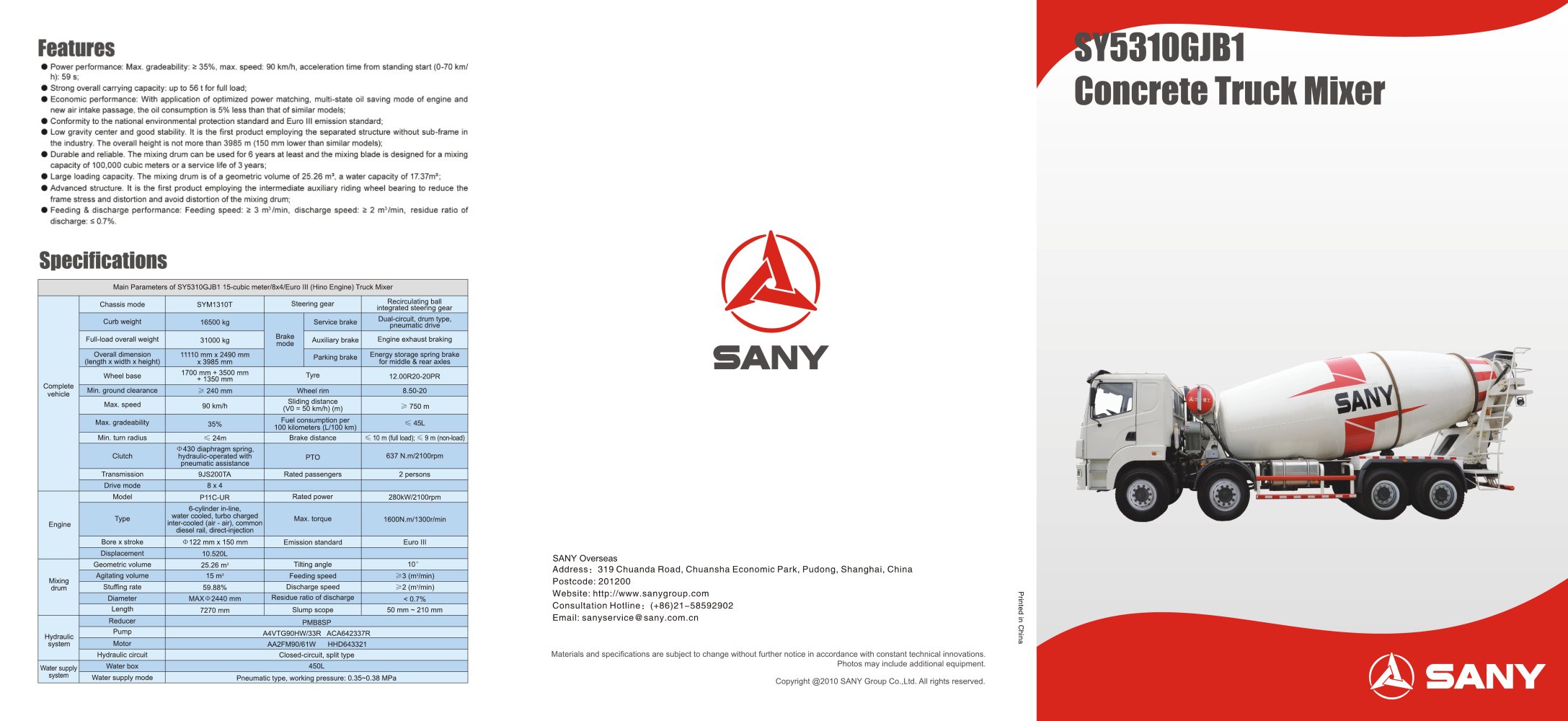

Features • Power performance: Max. gradeability; s 35%, max. speed: 90 knVh, accélération time from standing start (0-70 km/ h): 59 a; • Strong overall carrying capacity: up to 561 for full load; • Economie performance: With application of optimized power malching, multi-state oil saving mode of engine and new air intake passage: the oil consumption is 5% less than that of similar modeîs; • Confcrmity tothe national environ m entai protection standard and Euro III émission standard; • Low gravity center and geod stability, It is the first product employing the separated structure without sub-frame in the industry. The overall height is not more than 3985 m (150 mm lowerthan similar models); • Durable and reliable. The mixing drum can be used for 6 years at least and the mixing blade is designed for a mixing capacity of 100,000 cubic meters or a service life cf 3 years; • Large loading capacity. The mixing drum is of a géométrie volume of 25.26 m3, a water capacity of 17.37m3; • Advanced structure, It is the first product employing the intermediate auxiliary riding wheel bearing to reduce the frame stress and distortion and avoid distortion of the mixing drum; • Feeding & discharge performance: Feeding speed: > 3 m'/min, discharge speed: > 2 m3/min, residue ratio of discharge: s 0,7%. SY5310GJB1 Concrète Truck Mixer Spécifications Main Parametersof SY5310GJB1 15-cubic meter/8x4/Euro Il (Hino Engine) Truck Mixer Châssis mode SYM1310T Steering gear Recirculating bail integrated steering gear Curb weight 16500 kg Service brake Dual-circuit, drum type, pneumatic drive Full-load overall weight 31000 kg Brake mode Auxiliary brake Engine exhaust braking Overall dimension (length x width x height) 11110 mm x 2490 mm x 3985 mm Parking brake Energy storage spring brake for middle & rear axles Complète vehicle Wheel base 1700 mm + 3500 mm + 1350 mm Tyre 12.00R20-20PR Min. ground clearance S; 240 mm Wheel rim 8.50-20 Max. speed 90 km/h Sliding distance (V0 = 50 km/h) (m) =s750m Max. gradeability 35% Fuel consumption per 100 kilometers (L/100 km) sï 45L Min. tu m radius s:;: 24m Brake distance ^ 10 m (full load); =S 9 m (non-load) Clutch O430 diaphragm spring, hydraulic-operated with pneumatic assistance PTO 637 N.m/2100rpm Transmission 9JS200TA Rated passengers 2 persons Drive mode 8x4 Model P11C-UR Rated power 280kW/2100rpm Engine Type 6-cylinder in-line, water cooled, turbo charged inter-cooled (air - air), common diesel rail, direct-injection Max. torque 1600N.m/1300r/min Bore x stroke <t>122 mm x 150 mm Emission standard Euro III Displacement 10.520L Géométrie volume 25.26 m3 Tilting angle 10° Mixing drum Agitating volume 15 m3 Feeding speed 3=3 (m3/min) Stuffing rate 59.88% Discharge speed 5=2 (m3/min) Diameter MAX O 2440 mm Residue ratio of discharge < 0.7% Length 7270 mm Slump scope 50 mm -210 mm Reducer PMB8SP Hydraulic System Pump A4VTG90HW/33R ACA642337R Motor AA2FM90/61W HHD643321 Hydraulic circuit Closed-circuit, split type Water supply Water box 450L System Water supply mode Pneumatic type, working pressure: 0.35-0.38 MPa SANY Overseas Address: 319 Chuanda Road, Chuansha Economie Park, Pudong, Shanghai, China Postcode: 201200 Website: http://www.sanygroup.com Consultation Hotline: (+86)21-58592902 Email: sanyservice@sany.com.cn CD a. O 3 EU Materials and spécifications are subject to change without further notice in accordance with constant technical innovations. Photos may include additional equipment. <$)SANY Copyright @2010 SANY Group Co.,Ltd. AN rights reserved.
