Parallel Index Catalog - 16451 Flange Type PL/EL-Parallel Indexing Model

?

Flange Type PL/EL

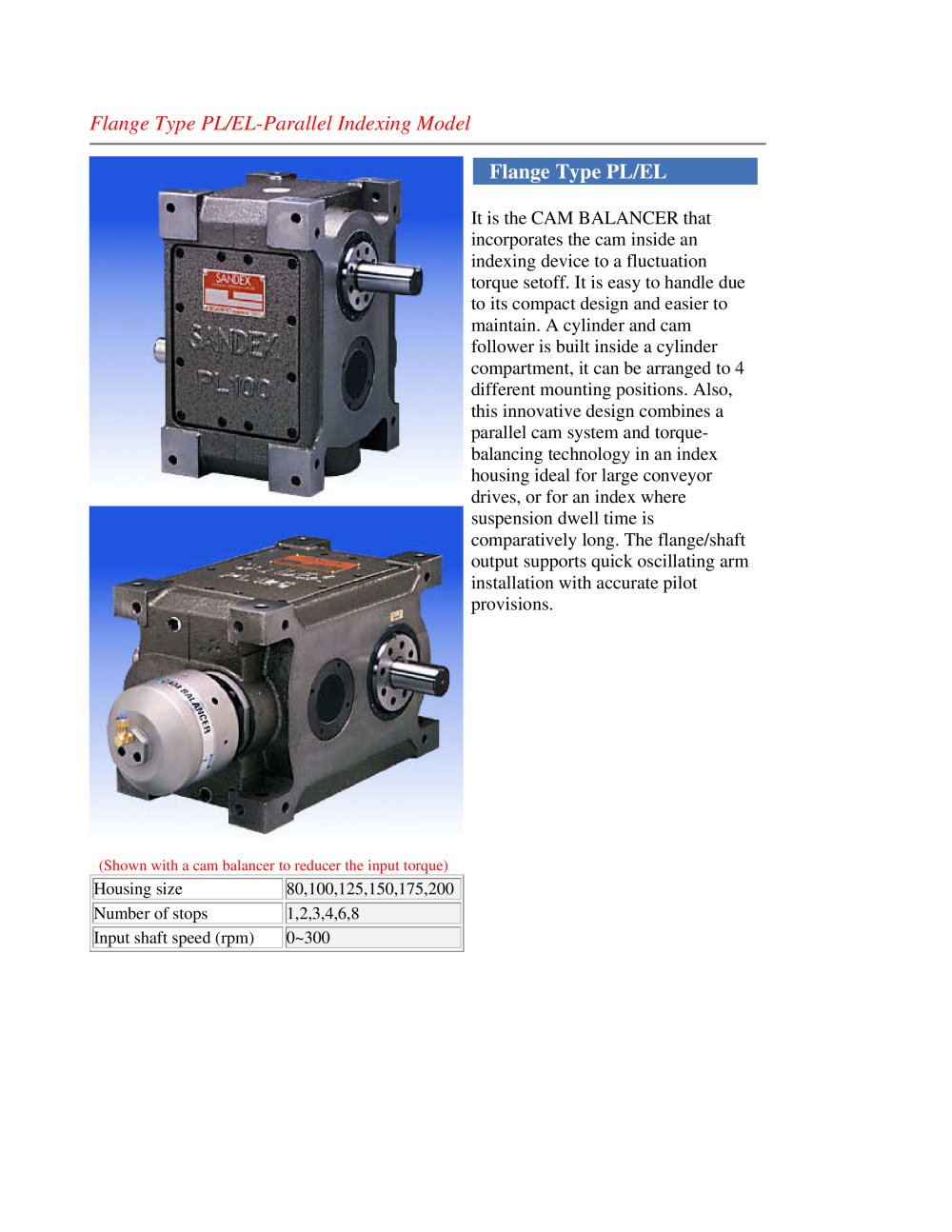

? It is the CAM BALANCER that incorporates the cam inside an indexing device to a fluctuation torque setoff. It is easy to handle due to its compact design and easier to maintain. A cylinder and cam follower is built inside a cylinder compartment, it can be arranged to 4 different mounting positions. Also, this innovative design combines a parallel cam system and torque- balancing technology in an index housing ideal for large conveyor drives, or for an index where suspension dwell time is comparatively long. The flange/shaft output supports quick oscillating arm installation with accurate pilot provisions.

(Shown with a cam balancer to reducer the input torque) Housing size ? 80,100,125,150,175,200 ? Number of stops ? 1,2,3,4,6,8 ?

?

Input shaft speed (rpm) ? 0~300 ?
