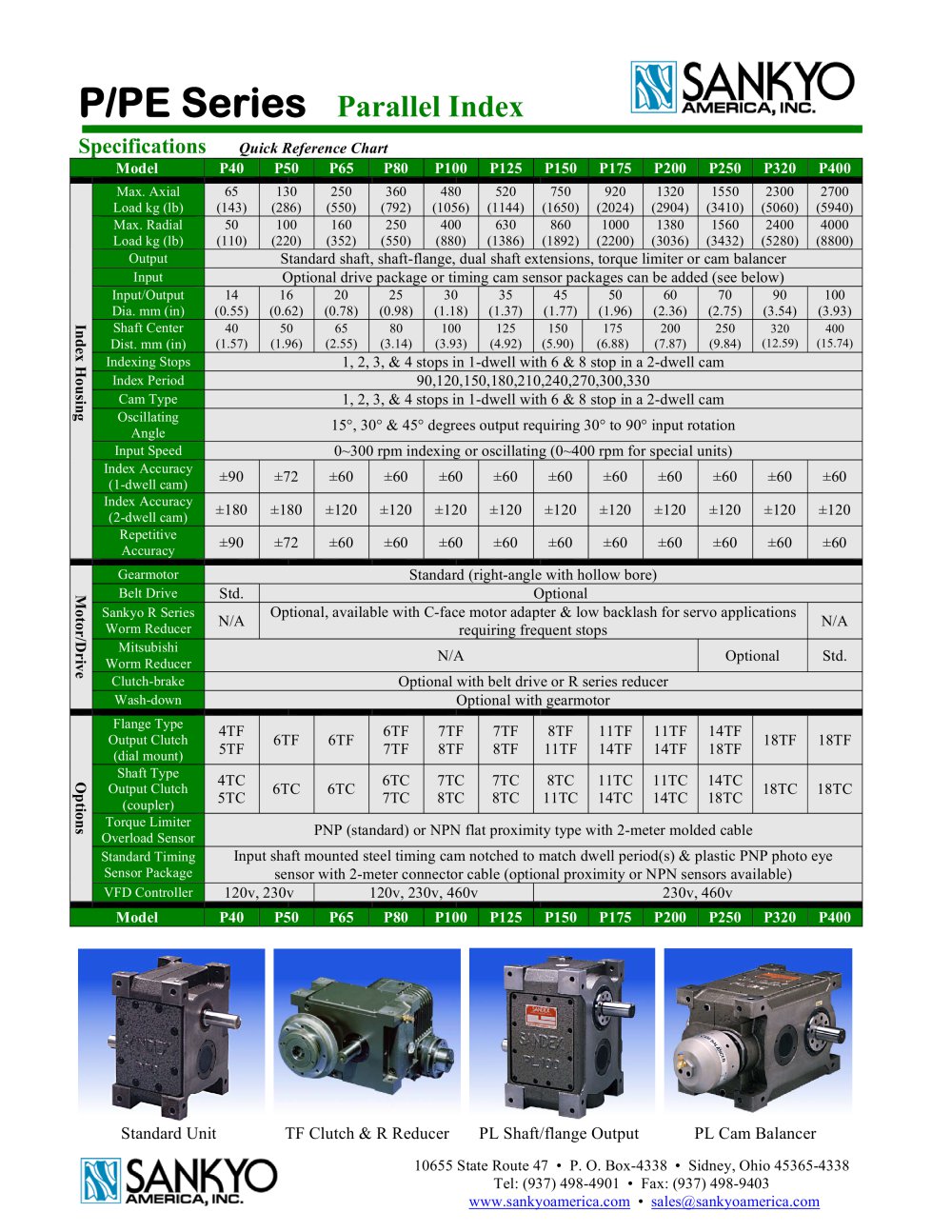

Parallel Indexing Model-Parallel Type P/E

? Parallel Type P/E The P series is the ideal indexing unit for high-speed applications requiring few stops, such as conveyors with relatively long feed pitches or long dwell periods. This single- dimensional indexing unit uses two parallel plate cams on the input shaft to impart intermittent motions to the followers on a spider located on the output shaft. The input and output shafts are parallel. It is easy to produce drives with any small number of stops, such as 1, 2, or 3. This mechanism possesses the same superior characteristics of our roller-gear cam type-indexing units. Sankyo's original uneven-pitch parallel cam increases load capacity and accuracy, making it possible to produce drives that was technically unfeasible in the past. The accuracy, speed, performance, and reliability make the P/E series the ideal intermittent indexing mechanism for today's industrial machinery. Features ? Standard models range in size from 40 to 400mm (input to output shaft center distances). ? Suitable for equipment with a low number of stops (1 to 8 stops).
(Shown with R reducer installed, input & output clutches) ? The input and output shafts are parallel.
Housing size 40,50,65,80,100,125,150, 175,200,250,320,400 ? Can be installed in a variety of positions and mounting orientations for use in many different applications.
Type PNumber of stops 1,2,3,4,6,8 Type EOscillating angle (deg) 15,30,45 ? The E series output oscillates in 15 to 45 degree increments.
Input shaft speed (rpm) 0~300
