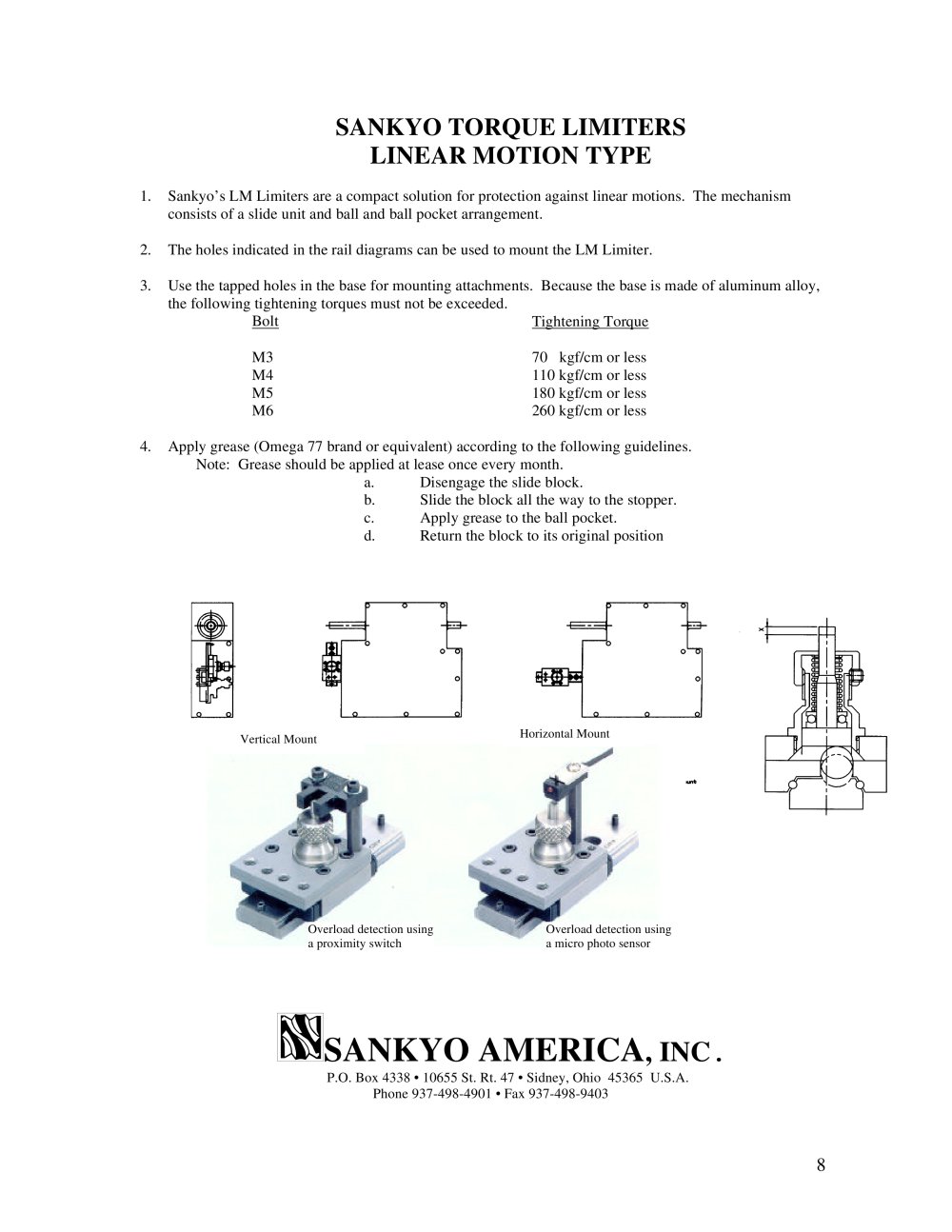

SANKYO TORQUE LIMITERSLINEAR MOTION TYPE

1.Sankyo’s LM Limiters are a compact solution for protection against linear motions. The mechanism consists of a slide unit and ball and ball pocket arrangement.2.The holes indicated in the rail diagrams can be used to mount the LM Limiter. 3.Use the tapped holes in the base for mounting attachments. Because the base is made of aluminum alloy,the following tightening torques must not be exceeded.Bolt Tightening Torque M370kgf/cm or less M4110 kgf/cm or less M5180 kgf/cm or lessM6260 kgf/cm or less4.Apply grease (Omega 77 brand or equivalent) according to the following guidelines.Note:Greaseshould be applied at lease once every month.a.Disengage the slide block.b.Slide the block all the way to the stopper.c.Apply grease to the ball pocket. d.Return the block to its original position
