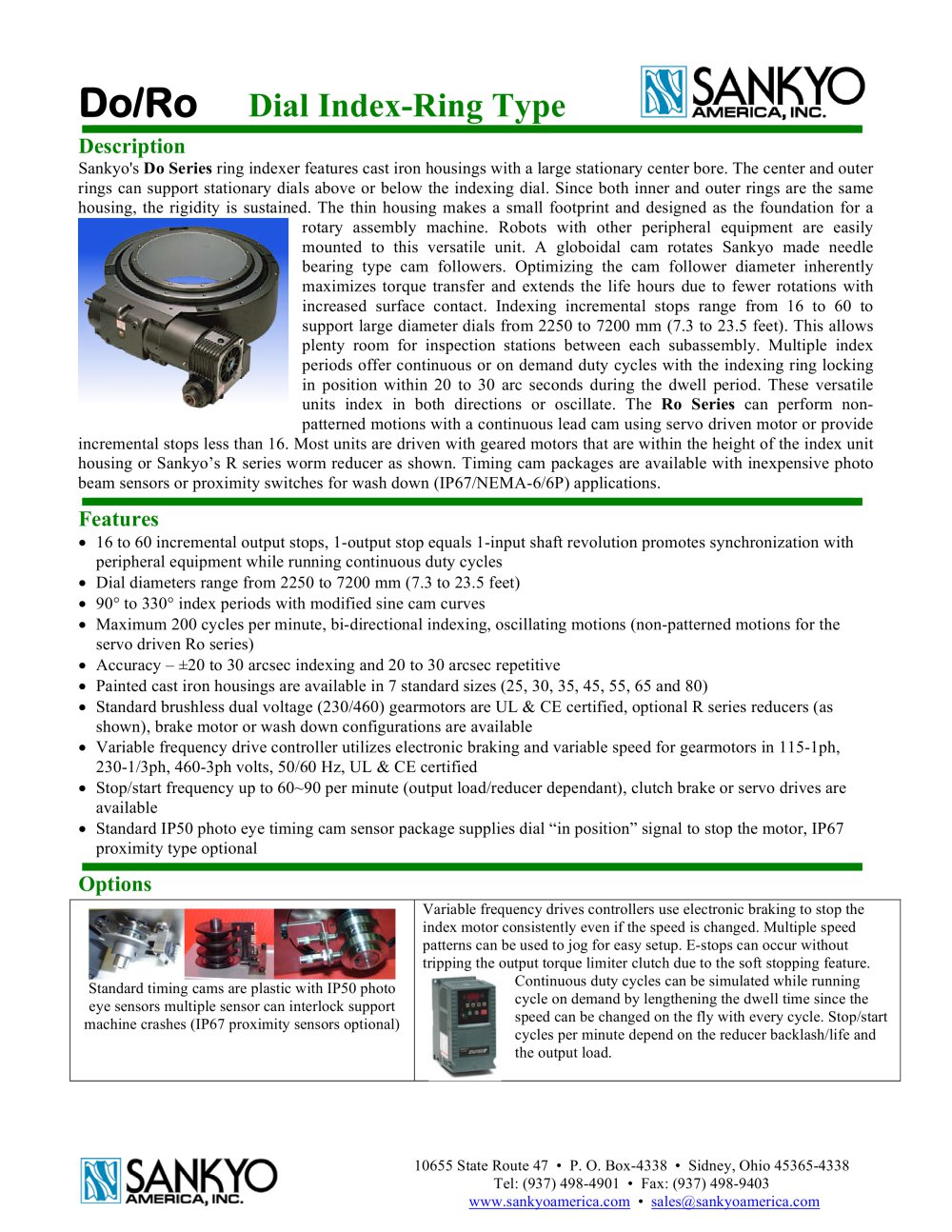

Do Series (Ring Type)

? The Do series is the latest addition to the Sankyo line of indexing devices. This index is based on the roller gear cam technology and dynamically; it is the best mechanism available. The Do series features a unique ring-shaped output shaft consisting of a large diameter ring and a center bore arranged in an extremely thin housing. The large center bore provides easy installation of peripheral equipment.

Features

? ? Seven standard ranging from 310 to 1100 mm bore (250 to 800 mm shaft centers) 30Do and Reducer R65 with clutch/brake option ? Standard stop ranges from 16 to 60 or constant lead cam with servomotor ? Extremely thin compact design ? ? Stationary flanges on both sides of the indexing flange for easy integration
Housing size ?
25, 30, 35, 45, 55, 65, 80 ? ? Compatible with R series reducer with clutch and brake option as shown or 56C frame motor adapter
Number of stops ?
16, 18, 20, 24, 30, 32, 36, 40, 48,60 ?
Input shaft speed (rpm) ?
0 ~ 200 ? ???????????????????
???????? ?
