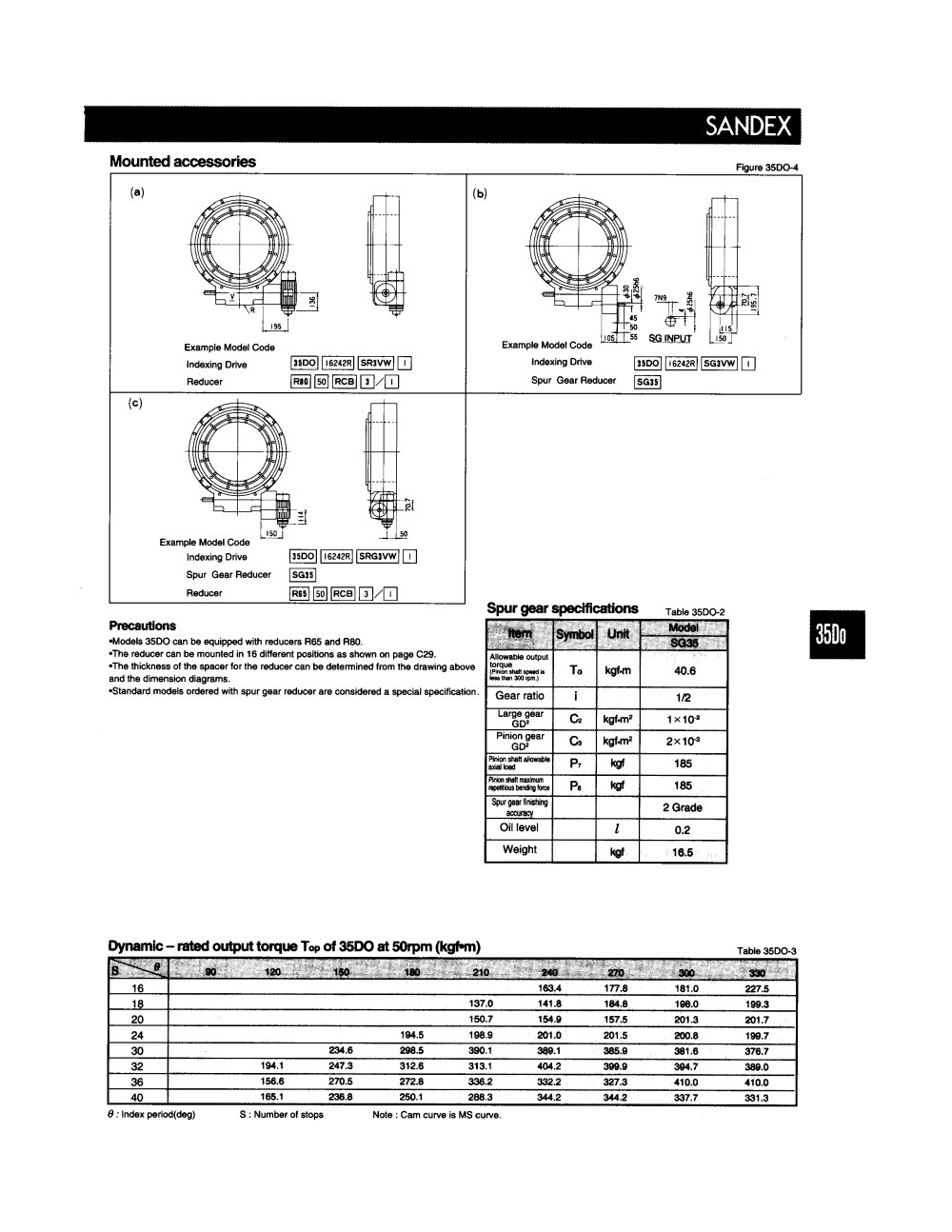

SANDEX

Mounted accessories

Figure 35DO-4

(a)

(b)

as;

4Ë' «

m SG INPUT I 150

Example Model Code Indexing Drive

Example Model Code

3SDO i6242r SR3VW i

35DO (6242r SG3VW i

Indexing Drive Reducer [jwo] \so\ |rcb| |T|/(T|

Spur Gear Reducer | SG351

(c)

Example Model Code Indexing Drive Spur Gear Reducer Reducer

35DO i6242r SRG3VW i

SG35

[rsF| [so] |rcb| |T|/|T|

Spur gear specifications

Table 35DO-2


tteffl	Symbol	Unit	Modal
tteffl	Symbol	Unit	SQ35
Allowable output torque (Pinion shaft speed is less than 300 rpm.J	To	kgf.m	40.6
Gear ratio	i		1/2
Large gear GD^a		ivyw 1 r	1 X10"²
Pinion gear GD²	Co	kgtm*	2X10³
Pinion shaft allowable axial load	P7	kg»	185
Pinion shaft maximum repetitious bending force	CL	kgf	185
Spur gear finishing accuracy			2 Grade
Oil level		I	0.2
Weight		kgf	16.5

Precautions

•Models 3SDO can be equipped with reducers R65 and R80.

•The reducer can be mounted in 16 different positions as shown on page C29.

•The thickness of the spacer for the reducer can be determined from the drawing above

and the dimension diagrams.

•Standard models ordered with spur gear reducer are considered a special specification.

Dynamic - rated output torque Top of 35DO at 50rpm (kgftn)

$: Index period(deg) S : Number of stops Note : Cam curve is MS curve.
