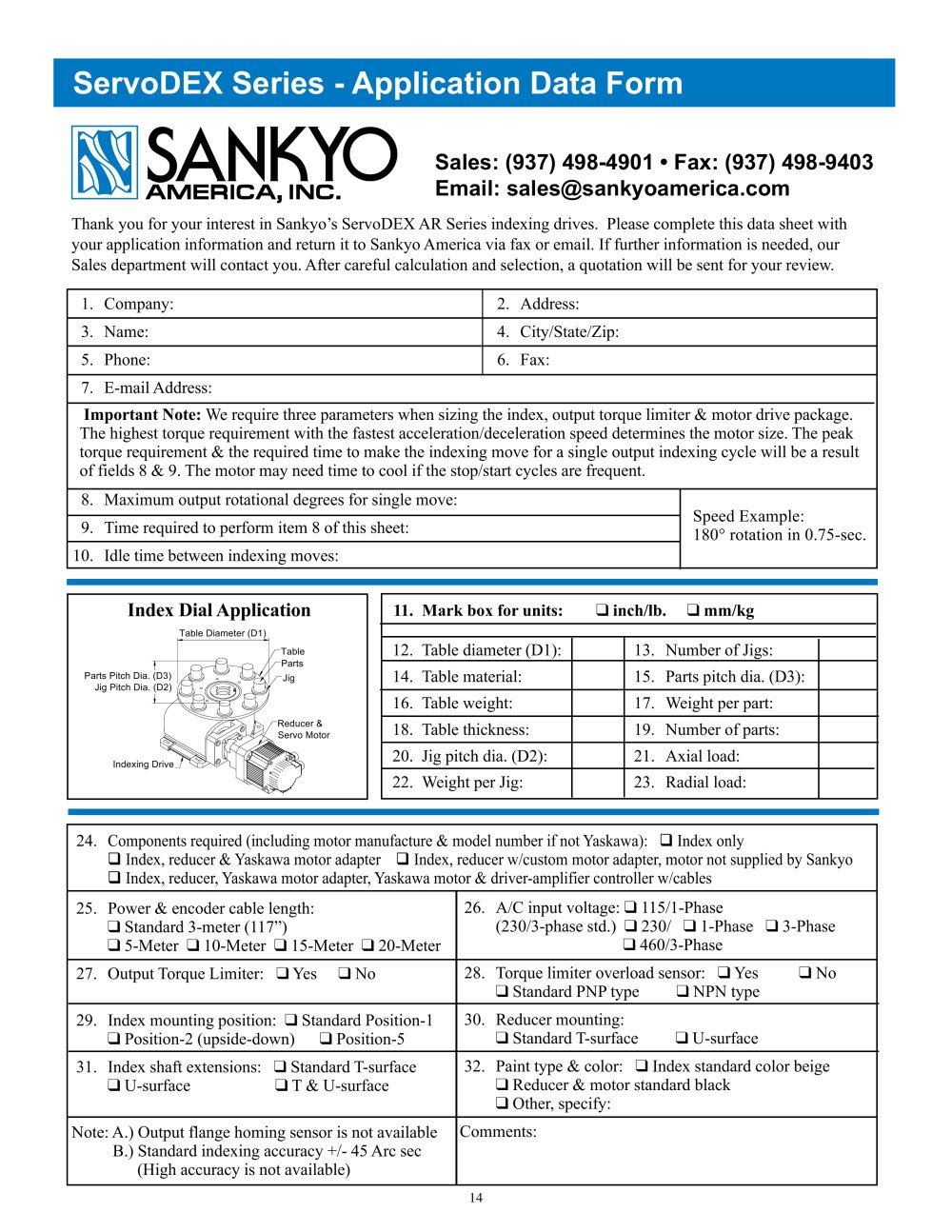

| | | ServoDEX Series - Application Data Form | | |
| | | |
| | | SANKYO AMERICA, INC. | | |
| | | Sales: (937) 498-4901 • Fax: (937) 498-9403 Email: sales@sankyoamerica.com | | |
| | | |
| | | |
| | | Thank you for your interest in Sankyo's ServoDEX AR Series indexing drives. Please complete this data sheet with your application information and return it to Sankyo America via fax or email. If further information is needed, our Sales department will contact you. After careful calculation and selection, a quotation will be sent for your review. | | |
| | | |
| | | | | | | | | | | 1. Company: | 2. Address: | | | | 3. Name: | 4. City/State/Zip: | | | | 5. Phone: | 6. Fax: | | | | 7. E-mail Address: | | | | Important Note: We require three parameters when sizing the index, output torque limiter & motor drive package. The highest torque requirement with the fastest acceleration/deceleration speed determines the motor size. The peak torque requirement & the required time to make the indexing move for a single output indexing cycle will be a result of fields 8 & 9. The motor may need time to cool if the stop/start cycles are frequent. | | | | 8. Maximum output rotational degrees for single move: | Speed Example: 180° rotation in 0.75-sec. | | | | 9. Time required to perform item 8 of this sheet: | | | | 10. Idle time between indexing moves: | | | | | | | | | | |
| | | |
| | | | | | | | | | | | 11. Mark box for units: □ inch/lb. □ mm/kg | | | | | | | | 12. Table diameter (D1): | | 13. Number of Jigs: | | | | | 14. Table material: | | 15. Parts pitch dia. (D3): | | | | | 16. Table weight: | | 17. Weight per part: | | | | | 18. Table thickness: | | 19. Number of parts: | | | | | 20. Jig pitch dia. (D2): | | 21. Axial load: | | | | | 22. Weight per Jig: | | 23. Radial load: | | | | | | | | | | | | |
| | | | | | | | | | | Index Dial Application | | | | | Table Diameter (D1) | | | | | | | Table | | | | Parts Pitch Dia. (D3) Jig Pitch Dia. (D2) | | ^Parts | | | | X | -Sii | /^Reducer & Servo Motor | | | | Indexing Drive. | | | | | | | | | | | | |
| | | |
| | | |
| | | | | | | | | | 24. Components required (including motor manufacture & model number if not Yaskawa): □ Index only □ Index, reducer & Yaskawa motor adapter □ Index, reducer w/custom motor adapter, motor not supplied by Sankyo □ Index, reducer, Yaskawa motor adapter, Yaskawa motor & driver-amplifier controller w/cables | | | | 25. Power & encoder cable length: □ Standard 3-meter (117") □ 5-Meter □ 10-Meter □ 15-Meter □ 20-Meter | 26. A/C input voltage: □ 115/1-Phase (230/3-phase std.) □ 230/ □ 1-Phase □ 3-Phase □ 460/3-Phase | | | | 27. Output Torque Limiter: □ Yes □ No | 28. Torque limiter overload sensor: □ Yes □ No □ Standard PNP type □ NPN type | | | | 29. Index mounting position: □ Standard Position-1 □ Position-2 (upside-down) □ Position-5 | 30. Reducer mounting: □ Standard T-surface □ U-surface | | | | 31. Index shaft extensions: □ Standard T-surface □ U-surface □ T & U-surface | 32. Paint type & color: □ Index standard color beige □ Reducer & motor standard black □ Other, specify: | | | | Note: A.) Output flange homing sensor is not available B.) Standard indexing accuracy +/- 45 Arc sec (High accuracy is not available) | Comments: | | | | | | | | | |
| | | |
| | | 14 | | |
| | | |
| | | | | | | | | | | | | | | | | | | |
