Specifications of geared motor

Table 9AD-2


Code	Motor Power (kW)	Actual Gear Ratio ( i )	Output Shaft Speed NM(rpm)		Output Allowable Torque TR(N-m)		Moment of inertia jM(kg-m²)	Weight (kg)
230V	Motor Power (kW)	Actual Gear Ratio ( i )	50Hz	60Hz	50Hz	60Hz	Moment of inertia jM(kg-m²)	Weight (kg)
GM0.2-20BS-9AD	0.2	20	75	90	22.5	18.6	0.81X10^-3	9.8
GM0.2-25BS-9AD		25	60	72	27.4	23.5
GM0.2-30BS-9AD		30	50	60	33.3	27.4
GM0.2-40BS-9AD		40	37.5	45	44.1	37.2
GM0.2-50BS-9AD		50	30	36	55.9	46.1
GM0.4-10BS-9AD	0.4	10	150	180	22.5	18.6	0.98X10^-3	10.2
GM0.4-15BS-9AD		15	100	120	33.3	27.4
GM0.4-20BS-9AD		20	75	90	44.1	37.2
GM0.4-25BS-9AD		25	60	72	55.9	46.1
GM0.4-30BS-9AD		30	50	60	66.6	55.9
GM0.4-40BS-9AD		40	37.5	45	84.3	70.6
GM0.4-50BS-9AD		50	30	36	106.0	88.2

ng cam-Photo switch

Torque limiter mounting specifications(option)

Figure 9AD-3

Figure 9AD-4

, (192) ,

2-M4

(8)M8-1.25

Sensor Model EE-SX672(OMRON) Connector Model EE-1001

Example Model Code

Timing Cam-Photo Switch | TC | - |T~1 - 9AD

Example Model Code Indexing Drive

Torque Limiter

9AD|-|02338R|-

"91 [TATD - [201 RL1

L3VW 1

Precautions

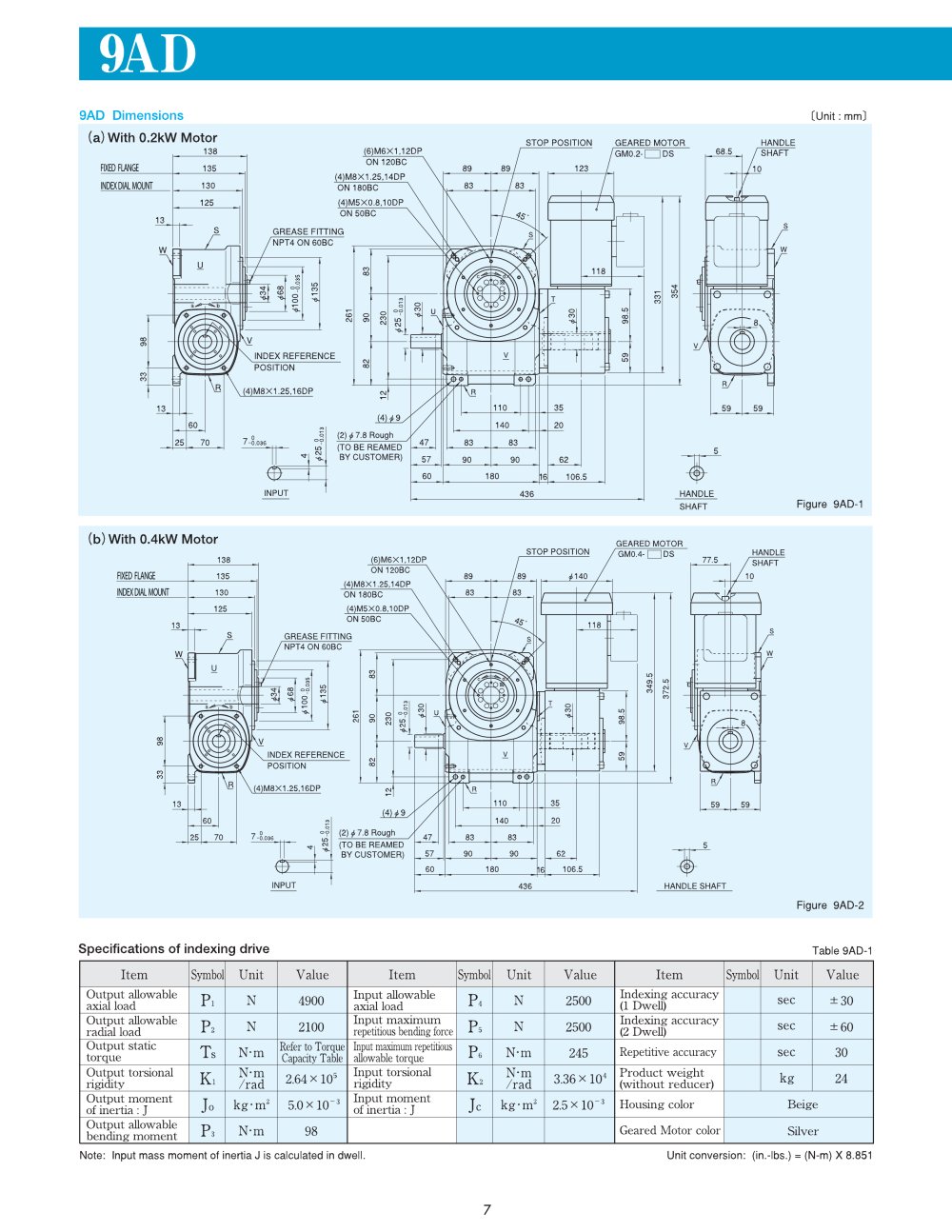

•The dimension drawing (Figure 9AD-1, 9AD-2) shows the standard mounting position for the geared motor. •Model 9AD can be equipped with 0.2kW and 0.4kW motor. Note,when using the 0.4kW motor, the motor will protrude beyond the indexer flange. •Model 9AD can be equipped with torque limiter 9TAD. •Up to 3 sets of timing cams and photo switches can be added as necessary. •The timing cam can be freely adjusted to any period( a )below 180°.

Standard input shaft(T surface side)

Locations of oil plug, etc., and oil capacity

Figure 9AD-7

Mounting position

2 5

A-A¹

Location

Figure 9AD-5

100

Output fixed flange specifications

<i>34,2 ±o.i5, Fixed flange

Oil capacity(a)!

0.5

0.9

1.0

Precautions

•Each point indicated in the mounting positions shown in Figure 9AD-7 represents (starting at top) the

oil plug (PT3/8) , oil level (VA-01) , and drain (PT3/8) .

•The mounting positions correspond to code i for the indexing drives.

•The oil capacities indicated in Figure 9AD-7 are given in general figures and will differ according to the profile of the cam and the number of cam followers.

(Through W surface)

Figure 9AD-6
