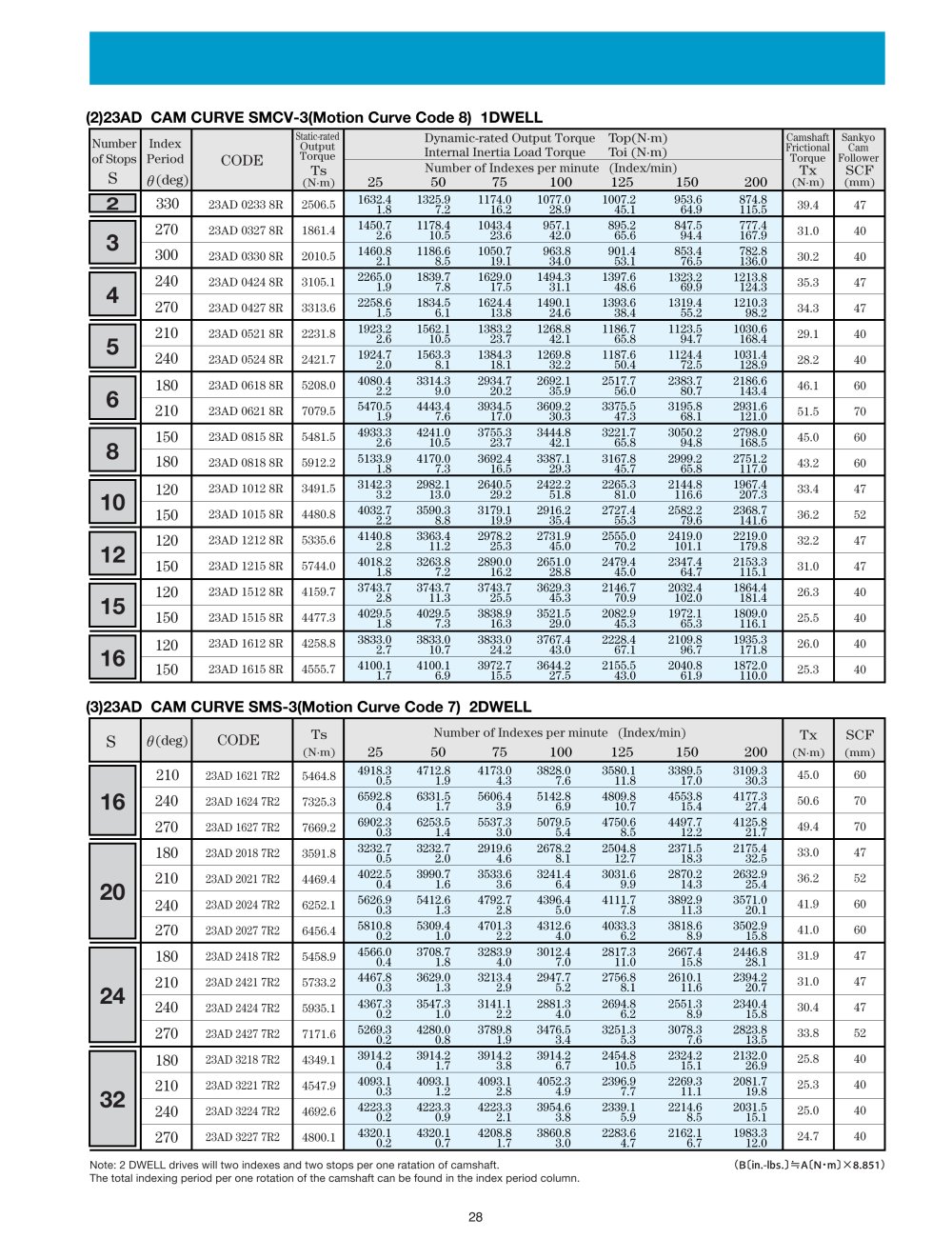

| | | (2)23AD CAM CURVE SMCV-3(Motion Curve Code 8) 1DWELL | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | Number of Stops | Index Period | CODE | Static-rated Output Torque Ts | | Dynamic-rated Output Torque Internal Inertia Load Torque | Top(N-m) Toi (N-m) | | Camshaft Frictional Torque Tx | Sankyo Cam Follower SCF | | | | | Number of Indexes per minute | (Index/min) | | | | | S | 0(deg) | | (N-m) | 25 | 50 | 75 | 100 | 125 | 150 | 200 | (N-m) | (mm) | | | | 2 | | 330 | 23AD 0233 8R | 2506.5 | 1632.4 1.8 | 1325.9 7.2 | 1174.0 16.2 | 1077.0 28.9 | 1007.2 45.1 | 953.6 64.9 | 874.8 115.5 | 39.4 | 47 | | | | 3 | 270 | 23AD 0327 8R | 1861.4 | 1450.7 2.6 | 1178.4 10.5 | 1043.4 23.6 | 957.1 42.0 | 895.2 65.6 | 847.5 94.4 | 777.4 167.9 | 31.0 | 40 | | | | 300 | 23AD 0330 8R | 2010.5 | 1460.8 2.1 | 1186.6 8.5 | 1050.7 19.1 | 963.8 34.0 | 901.4 53.1 | 853.4 76.5 | 782.8 136.0 | 30.2 | 40 | | | | 4 | 240 | 23AD 0424 8R | 3105.1 | 2265.0 1.9 | 1839.7 7.8 | 1629.0 17.5 | 1494.3 31.1 | 1397.6 48.6 | 1323.2 69.9 | 1213.8 124.3 | 35.3 | 47 | | | | 270 | 23AD 0427 8R | 3313.6 | 2258.6 1.5 | 1834.5 6.1 | 1624.4 13.8 | 1490.1 24.6 | 1393.6 38.4 | 1319.4 55.2 | 1210.3 98.2 | 34.3 | 47 | | | | 5 | 210 | 23AD 0521 8R | 2231.8 | 1923.2 2.6 | 1562.1 10.5 | 1383.2 23.7 | 1268.8 42.1 | 1186.7 65.8 | 1123.5 94.7 | 1030.6 168.4 | 29.1 | 40 | | | | 240 | 23AD 0524 8R | 2421.7 | 1924.7 2.0 | 1563.3 8.1 | 1384.3 18.1 | 1269.8 32.2 | 1187.6 50.4 | 1124.4 72.5 | 1031.4 128.9 | 28.2 | 40 | | | | 6 | 180 | 23AD 0618 8R | 5208.0 | 4080.4 2.2 | 3314.3 9.0 | 2934.7 20.2 | 2692.1 35.9 | 2517.7 56.0 | 2383.7 80.7 | 2186.6 143.4 | 46.1 | 60 | | | | 210 | 23AD 0621 8R | 7079.5 | 5470.5 1.9 | 4443.4 7.6 | 3934.5 17.0 | 3609.2 30.3 | 3375.5 47.3 | 3195.8 68.1 | 2931.6 121.0 | 51.5 | 70 | | | | 8 | 150 | 23AD 0815 8R | 5481.5 | 4933.3 2.6 | 4241.0 10.5 | 3755.3 23.7 | 3444.8 42.1 | 3221.7 65.8 | 3050.2 94.8 | 2798.0 168.5 | 45.0 | 60 | | | | 180 | 23AD 0818 8R | 5912.2 | 5133.9 1.8 | 4170.0 7.3 | 3692.4 16.5 | 3387.1 29.3 | 3167.8 45.7 | 2999.2 65.8 | 2751.2 117.0 | 43.2 | 60 | | | | 10 | 120 | 23AD 1012 8R | 3491.5 | 3142.3 3.2 | 2982.1 13.0 | 2640.5 29.2 | 2422.2 51.8 | 2265.3 81.0 | 2144.8 116.6 | 1967.4 207.3 | 33.4 | 47 | | | | 150 | 23AD 1015 8R | 4480.8 | 4032.7 2.2 | 3590.3 8.8 | 3179.1 19.9 | 2916.2 35.4 | 2727.4 55.3 | 2582.2 79.6 | 2368.7 141.6 | 36.2 | 52 | | | | 12 | 120 | 23AD 1212 8R | 5335.6 | 4140.8 2.8 | 3363.4 11.2 | 2978.2 25.3 | 2731.9 45.0 | 2555.0 70.2 | 2419.0 101.1 | 2219.0 179.8 | 32.2 | 47 | | | | 150 | 23AD 1215 8R | 5744.0 | 4018.2 1.8 | 3263.8 7.2 | 2890.0 16.2 | 2651.0 28.8 | 2479.4 45.0 | 2347.4 64.7 | 2153.3 115.1 | 31.0 | 47 | | | | 15 | 120 | 23AD 1512 8R | 4159.7 | 3743.7 2.8 | 3743.7 11.3 | 3743.7 25.5 | 3629.3 45.3 | 2146.7 70.9 | 2032.4 102.0 | 1864.4 181.4 | 26.3 | 40 | | | | 150 | 23AD 1515 8R | 4477.3 | 4029.5 1.8 | 4029.5 7.3 | 3838.9 16.3 | 3521.5 29.0 | 2082.9 45.3 | 1972.1 65.3 | 1809.0 116.1 | 25.5 | 40 | | | | 16 | 120 | 23AD 1612 8R | 4258.8 | 3833.0 2.7 | 3833.0 10.7 | 3833.0 24.2 | 3767.4 43.0 | 2228.4 67.1 | 2109.8 96.7 | 1935.3 171.8 | 26.0 | 40 | | | | 150 | 23AD 1615 8R | 4555.7 | 4100.1 1.7 | 4100.1 6.9 | 3972.7 15.5 | 3644.2 27.5 | 2155.5 43.0 | 2040.8 61.9 | 1872.0 110.0 | 25.3 | 40 | | | | 3)23AD CAM CURVE SMS-3(Motion Curve Code 7) 2DWELL | | | | | | | | | | | | | | S | (deg) | CODE | Ts | | Number of Indexes per minute (Index/min) | | Tx | SCF | | | | (N-m) | 25 | 50 | 75 | 100 | 125 | 150 | 200 | (N-m) | (mm) | | | | | 210 | 23AD 1621 7R2 | 5464.8 | 4918.3 0.5 | 4712.8 1.9 | 4173.0 4.3 | 3828.0 7.6 | 3580.1 11.8 | 3389.5 17.0 | 3109.3 30.3 | 45.0 | 60 | | | | 16 | 240 | 23AD 1624 7R2 | 7325.3 | 6592.8 0.4 | 6331.5 1.7 | 5606.4 3.9 | 5142.8 6.9 | 4809.8 10.7 | 4553.8 15.4 | 4177.3 27.4 | 50.6 | 70 | | | | | 270 | 23AD 1627 7R2 | 7669.2 | 6902.3 0.3 | 6253.5 1.4 | 5537.3 3.0 | 5079.5 5.4 | 4750.6 8.5 | 4497.7 12.2 | 4125.8 21.7 | 49.4 | 70 | | | | | 180 | 23AD 2018 7R2 | 3591.8 | 3232.7 0.5 | 3232.7 2.0 | 2919.6 4.6 | 2678.2 8.1 | 2504.8 12.7 | 2371.5 18.3 | 2175.4 32.5 | 33.0 | 47 | | | | 20 | 210 | 23AD 2021 7R2 | 4469.4 | 4022.5 0.4 | 3990.7 1.6 | 3533.6 3.6 | 3241.4 6.4 | 3031.6 9.9 | 2870.2 14.3 | 2632.9 25.4 | 36.2 | 52 | | | | 240 | 23AD 2024 7R2 | 6252.1 | 5626.9 0.3 | 5412.6 1.3 | 4792.7 2.8 | 4396.4 5.0 | 4111.7 7.8 | 3892.9 11.3 | 3571.0 20.1 | 41.9 | 60 | | | | | 270 | 23AD 2027 7R2 | 6456.4 | 5810.8 0.2 | 5309.4 1.0 | 4701.3 2.2 | 4312.6 4.0 | 4033.3 6.2 | 3818.6 8.9 | 3502.9 15.8 | 41.0 | 60 | | | | | 180 | 23AD 2418 7R2 | 5458.9 | 4566.0 0.4 | 3708.7 1.8 | 3283.9 4.0 | 3012.4 7.0 | 2817.3 11.0 | 2667.4 15.8 | 2446.8 28.1 | 31.9 | 47 | | | | 24 | 210 | 23AD 2421 7R2 | 5733.2 | 4467.8 0.3 | 3629.0 1.3 | 3213.4 2.9 | 2947.7 5.2 | 2756.8 8.1 | 2610.1 11.6 | 2394.2 20.7 | 31.0 | 47 | | | | 240 | 23AD 2424 7R2 | 5935.1 | 4367.3 0.2 | 3547.3 1.0 | 3141.1 2.2 | 2881.3 4.0 | 2694.8 6.2 | 2551.3 8.9 | 2340.4 15.8 | 30.4 | 47 | | | | | 270 | 23AD 2427 7R2 | 7171.6 | 5269.3 0.2 | 4280.0 0.8 | 3789.8 1.9 | 3476.5 3.4 | 3251.3 5.3 | 3078.3 7.6 | 2823.8 13.5 | 33.8 | 52 | | | | | 180 | 23AD 3218 7R2 | 4349.1 | 3914.2 0.4 | 3914.2 1.7 | 3914.2 3.8 | 3914.2 6.7 | 2454.8 10.5 | 2324.2 15.1 | 2132.0 26.9 | 25.8 | 40 | | | | 32 | 210 | 23AD 3221 7R2 | 4547.9 | 4093.1 0.3 | 4093.1 1.2 | 4093.1 2.8 | 4052.3 4.9 | 2396.9 7.7 | 2269.3 11.1 | 2081.7 19.8 | 25.3 | 40 | | | | 240 | 23AD 3224 7R2 | 4692.6 | 4223.3 0.2 | 4223.3 0.9 | 4223.3 2.1 | 3954.6 3.8 | 2339.1 5.9 | 2214.6 8.5 | 2031.5 15.1 | 25.0 | 40 | | | | | 270 | 23AD 3227 7R2 | 4800.1 | 4320.1 0.2 | 4320.1 0.7 | 4208.8 1.7 | 3860.8 3.0 | 2283.6 4.7 | 2162.1 6.7 | 1983.3 12.0 | 24.7 | 40 | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Note: 2 DWELL drives will two indexes and two stops per one ratation of camshaft. (BCin.-lbsJ^ACN-m] X8.851) The total indexing period per one rotation of the camshaft can be found in the index period column. | | |
| | | |
| | | 28 | | |
| | | |
| | | | | | | | | | | |
