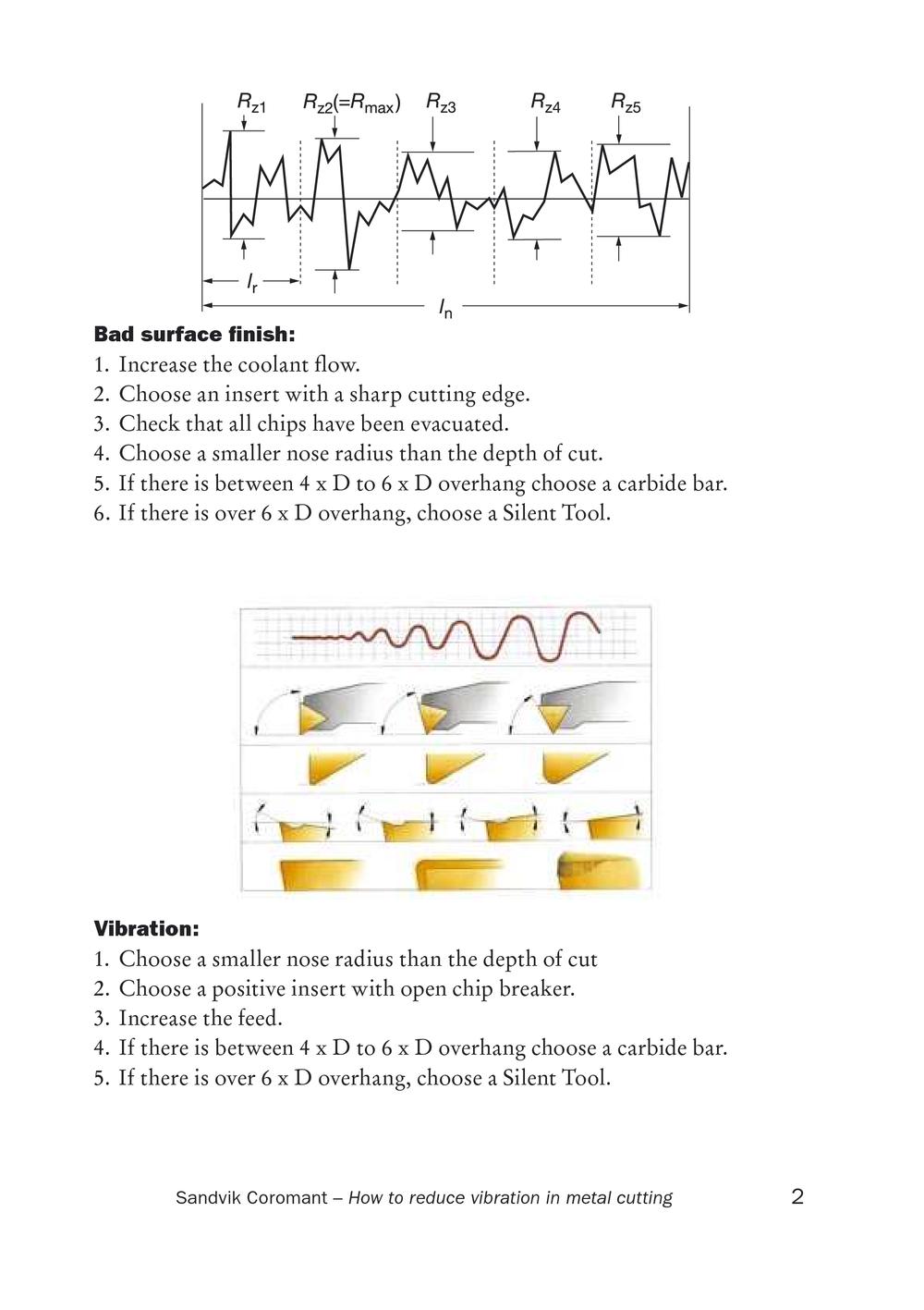

					^Rz1 fiz2(=ftmax) ^Rz3 ^Rz4 ^Rz5

			Bad surface finish: 1. Increase the coolant flow. 2. Choose an insert with a sharp cutting edge. 3. Check that all chips have been evacuated. 4. Choose a smaller nose radius than the depth of cut. 5. If there is between 4 x D to 6 x D overhang choose a carbide bar. 6. If there is over 6 x D overhang, choose a Silent Tool.

		Vibration: 1. Choose a smaller nose radius than the depth of cut 2. Choose a positive insert with open chip breaker. 3. Increase the feed. 4. If there is between 4 x D to 6 x D overhang choose a carbide bar. 5. If there is over 6 x D overhang, choose a Silent Tool.

									2
				Sandvik Coromant - How to reduce vibration in metal cutting					2
