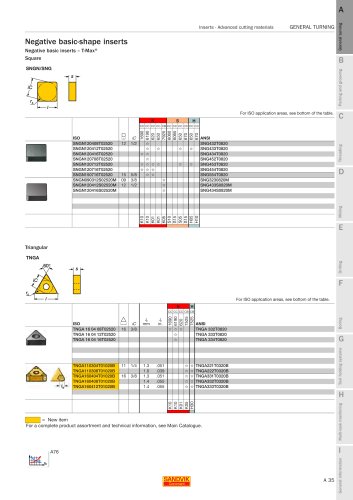

Inserts - Advanced cutting materials GENERAL TURNING
GENERAL TURNING Inserts - Advanced cutting materials
Negative basic-shape inserts
Negative basic inserts – T-Max®
Square
Triangular
SNGN/SNG
For ISO application areas, see bottom of the table.
K S H
ISO J iC
CC CC CC CC CB CC CC CC CC CC CC
ANSI
1690
6190
620
650
7925
6060
6065
650
670
650
670
SNGN120408T02520 12 1/2 . SNG432T0820
SNGN120412T02520 . . . . SNG433T0820
SNGN120416T02520 . . SNG434T0820
SNGN120708T02520 . SNG452T0820
SNGN120712T02520 . . . . . . SNG453T0820
SNGN120716T02520 . . . SNG454T0820
SNGN150716T02520 15 5/8 . . SNG554T0820
SNGN090312S02520M 09 3/8 . SNG3230820M
SNGN120412S02520M 12 1/2 . SNG433S0820M
SNGN120416S02520M . SNG434S0820M
K10
K10
K01
K01
K05
S10
S15
S05
S15
H05
H10
TNGA
For ISO application areas, see bottom of the table.
K H
ISO D iC
la
mm
la
in.
CC CC CC CB CB
ANSI
1690
6190
620
7525
7525
TNGA 16 04 08T02520 16 3/8 . . . TNGA 332T0820
TNGA 16 04 12T02520 . TNGA 333T0820
TNGA 16 04 16T02520 . TNGA 334T0820
TNGA110304T01020B 11 1/4 1.3 .051 . . TNGA221T0320B
TNGA110308T01020B 1.0 .039 . . TNGA222T0320B
TNGA160404T01020B 16 3/8 1.3 .051 . . TNGA331T0320B
TNGA160408T01020B 1.4 .055 . . TNGA332T0320B
TNGA160412T01020B 1.4 .055 . . TNGA333T0320B
K10
K10
K01
K05
H30
= New item
For a complete product assortment and technical information, see Main Catalogue.
A76

Supplement 10.2
