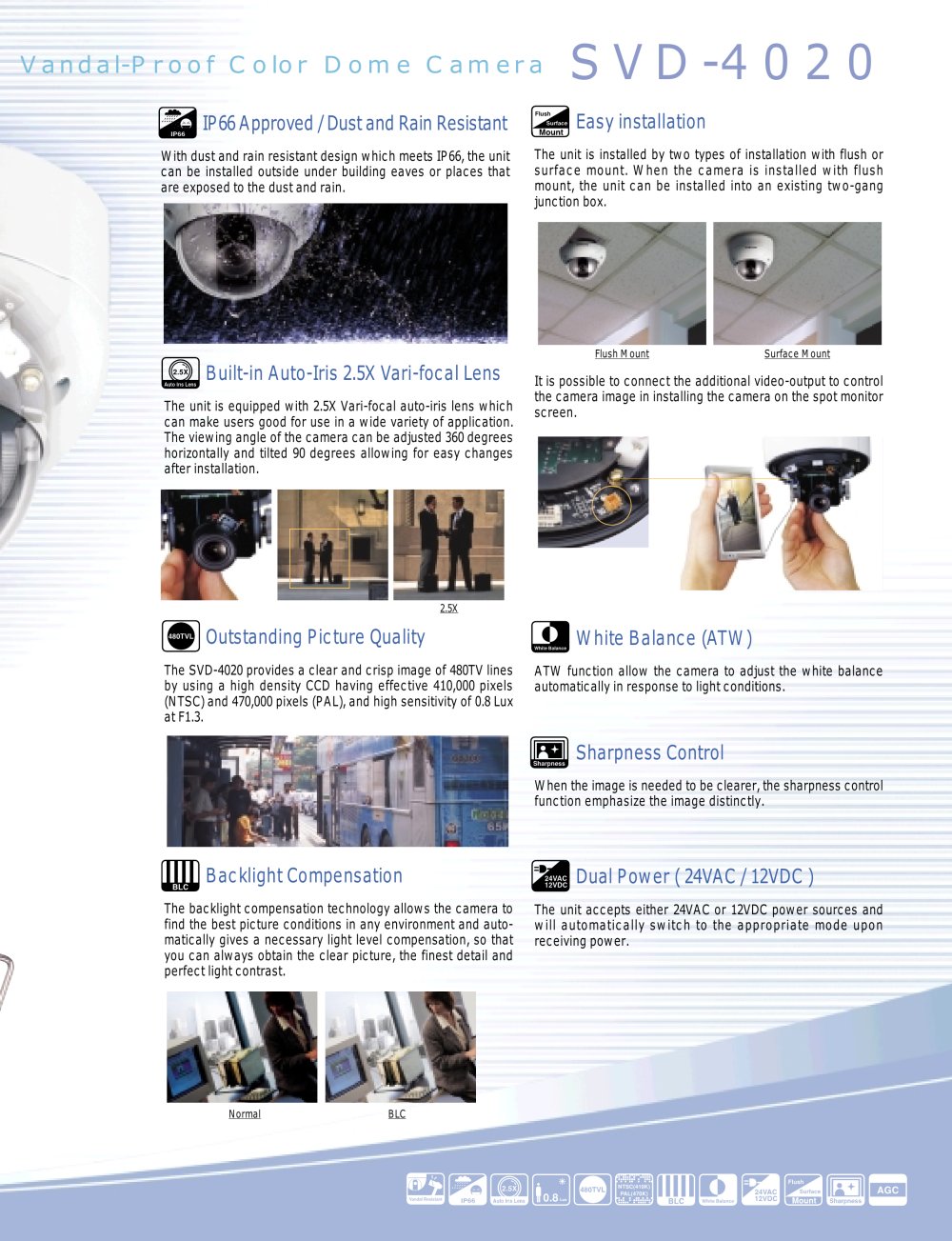

Vandal-Proof Color Dome Camera

Vandal-Proof Color Dome Camera - 22698 SVD-4020

IP66 Approved / Dust and Rain Resistant
Flush Easy installation
With dust and rain resistant design which meets IP66, the unitcan be installed outside under building eaves or places that are exposed to the dust and rain. The unit is installed by two types of installation with flush or surface mount. When the camera is installed with flush mount, the unit can be installed into an existing two-gang junction box. It is possible to connect the additional video-output to controlthe camera image in installing the camera on the spot monitor screen. Flush Mount Surface Mount 2.5X Built-in Auto-Iris 2.5X Vari-focal Lens
The unit is equipped with 2.5X Vari-focal auto-iris lens which can make users good for use in a wide variety of application. The viewing angle of the camera can be adjusted 360 degrees horizontally and tilted 90 degrees allowing for easy changesafter installation. 2.5X Outstanding Picture Quality White Balance (ATW)
The SVD-4020 provides a clear and crisp image of 480TV linesby using a high density CCD having effective 410,000 pixels (NTSC) and 470,000 pixels (PAL), and high sensitivity of 0.8 Lux at F1.3. ATW function allow the camera to adjust the white balanceautomatically in response to light conditions. Sharpness Control
When the image is needed to be clearer, the sharpness control function emphasize the image distinctly. Backlight Compensation Dual Power ( 24VAC / 12VDC )
The backlight compensation technology allows the camera to find the best picture conditions in any environment and auto- matically gives a necessary light level compensation, so that you can always obtain the clear picture, the finest detail andperfect light contrast. The unit accepts either 24VAC or 12VDC power sources and will automatically switch to the appropriate mode upon receiving power. Normal BLC Flush 2.5X NTSC(410K)PAL(470K) 0.8 AGC
