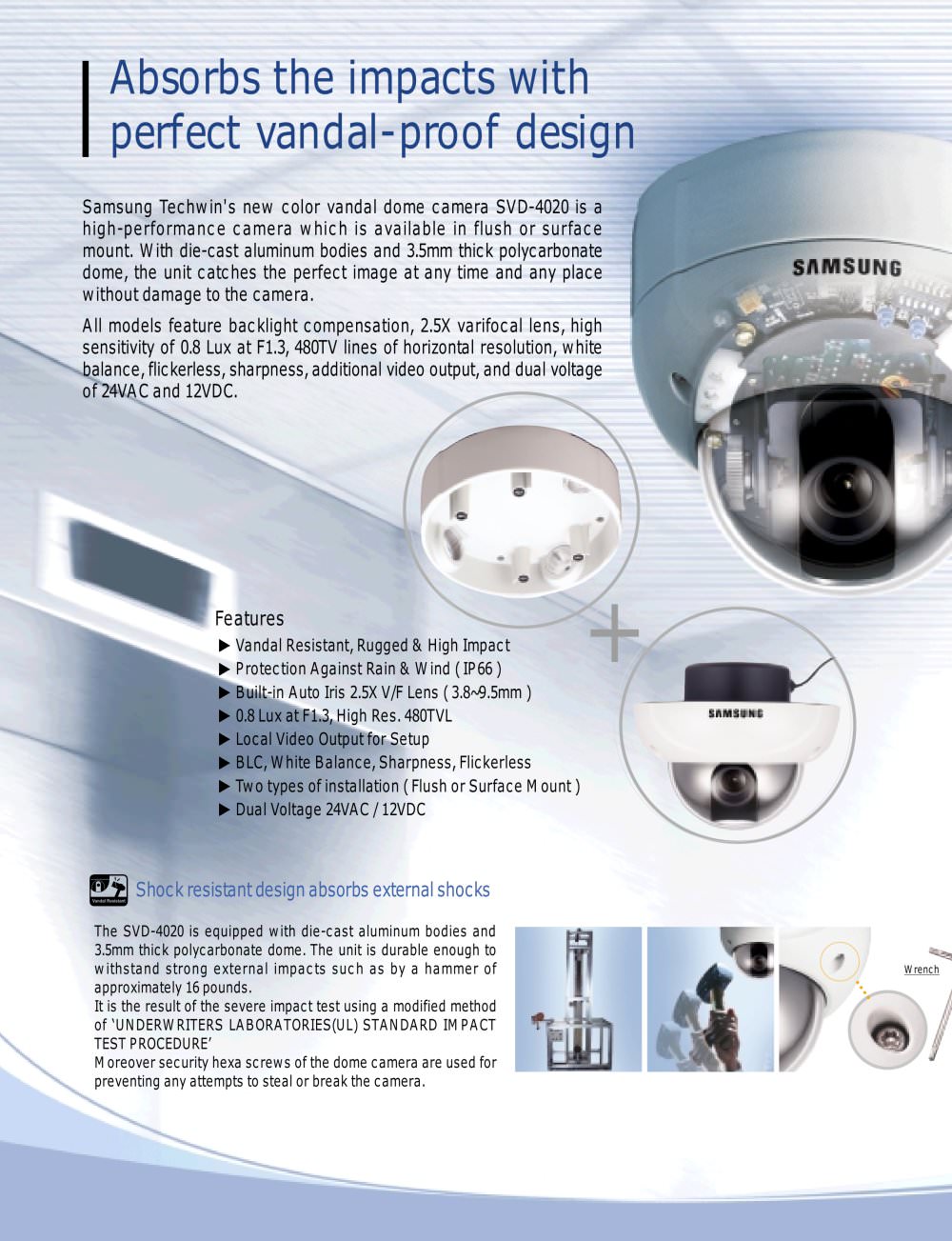

Absorbs the impacts with perfect vandal-proof design

Samsung Techwin's new color vandal dome camera SVD-4020 is ahigh-performance camera which is available in flush or surface mount.With die-cast aluminum bodies and 3.5mm thick polycarbonatedome, the unit catches the perfect image at any time and any place without damage to the camera. All models feature backlight compensation, 2.5X varifocal lens, highsensitivity of 0.8 Lux at F1.3, 480TV lines of horizontal resolution, white balance, flickerless, sharpness, additional video output, and dual voltage of 24VAC and 12VDC.

Features

Vandal Resistant, Rugged & High Impact Protection Against Rain & Wind ( IP66 ) Built-in Auto Iris 2.5X V/F Lens ( 3.8~9.5mm ) 0.8 Lux at F1.3, High Res. 480TVL

Vandal-Proof Color Dome Camera - 22698 +

Local Video Output for Setup BLC, White Balance, Sharpness, Flickerless Two types of installation ( Flush or Surface Mount ) Dual Voltage 24VAC / 12VDC

Shock resistant design absorbs external shocks

The SVD-4020 is equipped with die-cast aluminum bodies and3.5mm thick polycarbonate dome. The unit is durable enough to withstand strong external impacts such as by a hammer of approximately 16 pounds. It is the result of the severe impact test using a modified method of ‘UNDERWRITERS LABORATORIES(UL) STANDARD IMPACT TEST PROCEDURE’ Moreover security hexa screws of the dome camera are used for preventing any attempts to steal or break the camera. Wrench
