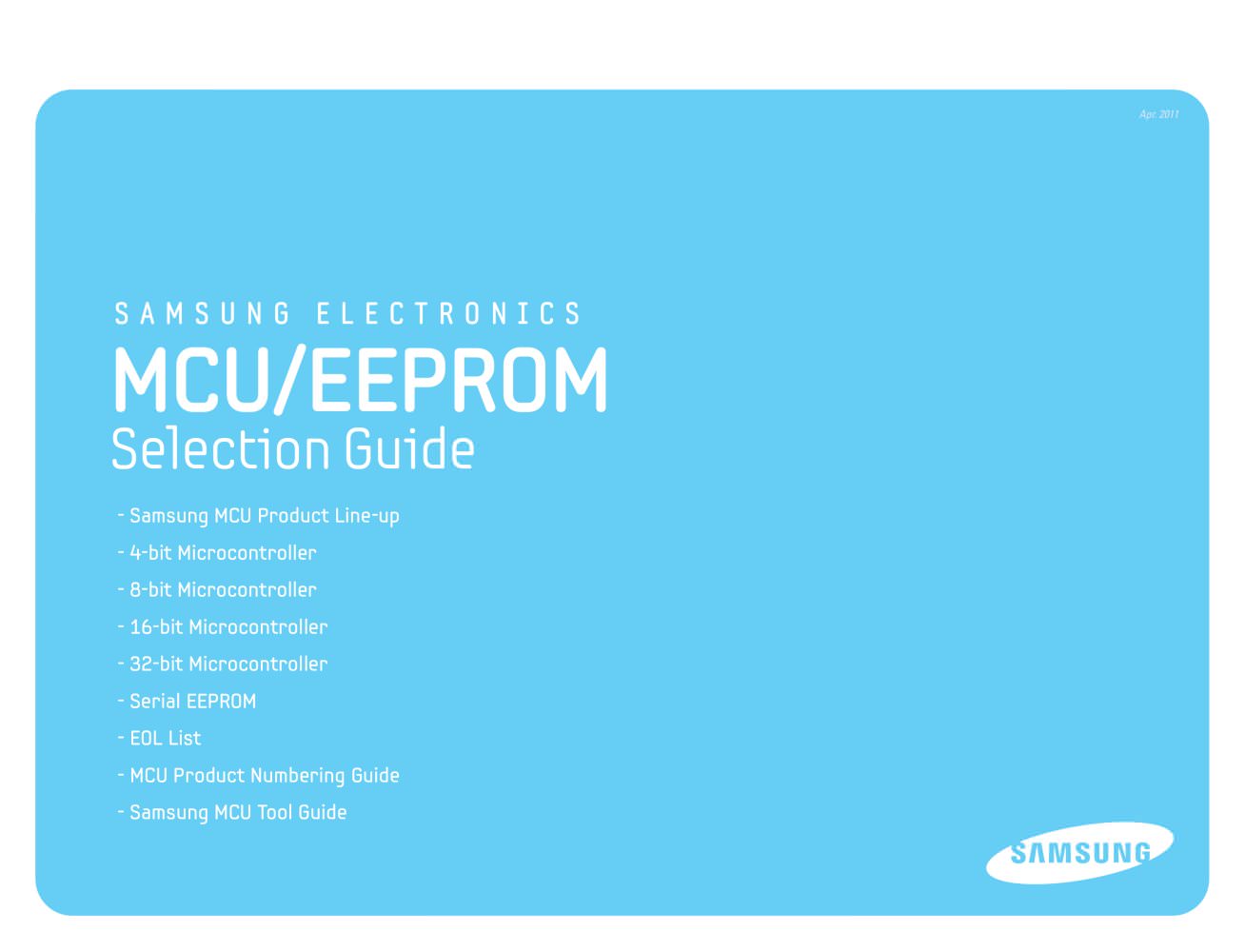

Apr. 2011 SAMSUNG ELECTRONICS MCU/EEPROM Slection Guide Samsung MCU Product Line-up 4-bit Microcontroller 8-bit Microcontroller 16-bit Microcontroller 32-bit Microcontroller Serial EEPROM EOL List MCU Product Numbering Guide Samsung MCU Tool Guide ^^^^^^

8-bit Microcontroller Samsung 8-bit Microc ontrol er Fam iiy Part Name Package Type ROM (KBytes) RAM (Bytes) I/OPins Interrupt (Int/Ext) Timer/Counter Serial Interface LCD (Seg/Com) ADC (BitxCh) PWM (BitxCh) Max.Osc. Freq. Min Exe. Time (ns) Vdd(V) OP Temp (0C) Other Features S3F8xxx (KS88) ! ٮeries S3F84VBXZZ-QT8B S3F84VBXZZ-AT9B 64QFP 64SDIP 64 2098 54 14/16 BT/WDT/WT/ 8TCx3/16TCx2 UARTx2, SIO 28/8 10x8 8x3 16x2 12MHz 333 2.0~5.5 -40~85 LVR, IVC, Voltage Booster&Regulator, PGM S3F84YBXZZ-QW8B S3F84YBXZZ-TW8B 80QFP 80TQFP 64 2114 70 15/16 BT/WDT/WT/ 8TCx4/16TCx2 UARTx2, SIO 44/8 10x8 8x4 16x2...

16-bit Microcontroller Samsung 8-bit Microcontroller Family Part Name Package Type ROM (KBytes) RAM (Bytes) I/O Pins Interrupt (Int/Ext) Timer/Counter Serial Interface LCD (Seg/Com) ADC (BitxCh) DAC (BitxCh) PWM(1) (BitxCh) Max. Osc. Freq. Coprocesserfor DSP function Min Exe. Time (ns) Vdd(V) OP Temp (0C) Other Features S3FCxxx (Calml ) Series S3FC11BXZZ-QX8F S3FC11BXZZ-TX8F 100QFP 100TQFP 64 10K 77 8/9 BT/ WT/8TCx3 SIO 36/8 10x4 8x1 40MHz MAC1616 25 2.0~3.6 -25~85 14-bit ADC/DAC S3FC40DXZZ-QX8D S3FC40DXZZ-TX8D S3FC40DXZZ-QA8D 100QFP 100TQFP 128QFP 128 6 90 30/16 BT/ WT/ 16TCx8/8TCx2 SIOx2 UARTx3...

MCU Product Numbering Guide PAGE 11 (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) S 3 F 9 4C 4 X XX - X X X X ~r ~r ~r ~r iח ~r ~r iח ~r ~r ~r ~r O ROM Size O Packge Pin -O Packge & Lead Free Option B = Tube R = Tray T = Tape & Rel C = Chip Business W = Wafer Business 7 = Lead Free Tape & Rel 8 = Lead Free Tray 9 = Lead Free Tube Mask Option O Packge Type A = SDIP = CHIP (Pellet) = DIP - LQFP = BGA = ELP M = QFPH N = C0B Q = QFP R = TSS0P S = S0P T = TQFT V = SS0P W = Wafer Y=FBGA O Version Suffix X = Commercial type J = Industrial type R = Automotive type -© Memory Type Classification...

Samsung MCU Tool Guide In-Circuit Emulators 8-BIT SAM8 MCU Name (Tool Supplier) OPENice-i500 (YIC) OPENice-i2000 (YIC) SK-1200 (SEMINIX) Features Support SAM4/8 Օ RS232C Communication Real time թmulation at full processor speed Flash MCU debuggging support Օ 64KB Emulation Memory Real Time Trace (32KB) Օ Run Time View OTP/MTP Programming ■Support SAM8 Օ USB2.0 or RS232C interface with PC ■ Real time emulation at full processor speed (25MHz) Real time RAM display Օ Flash mode debuggging Real time trace (32K step) Օ Emulation Memory (64KB) Free S/W IDE (OPENice-SLD) Օ OPT/MTP/FLASH programming...

Samsung MCU Tool Guide In-Circuit Emulators 32-bit ARM MCU Name (Tool Supplier) Ulink2 / Ulink-pro OPENice-A1000 (YIC) SK-3200 (SEMINIX) Features support Cortex-M, ARM7, and ARM9 devices Օ pVision4 IDE, debugger, and simulation environment (MDK-ARM) ULINKpro enables on-the-fly analysis of running applications andrecords every executed Cortex-M instruction Օ Complete Code Coverage information about your program's execution Execution Profiler and Performance Analyzer enable program optimization Օ Support ARM7/9/10/11, Cortex-M3 Multi-processor & multi-core dubugging Օ USB2.0 PC interface (2Mbps...
