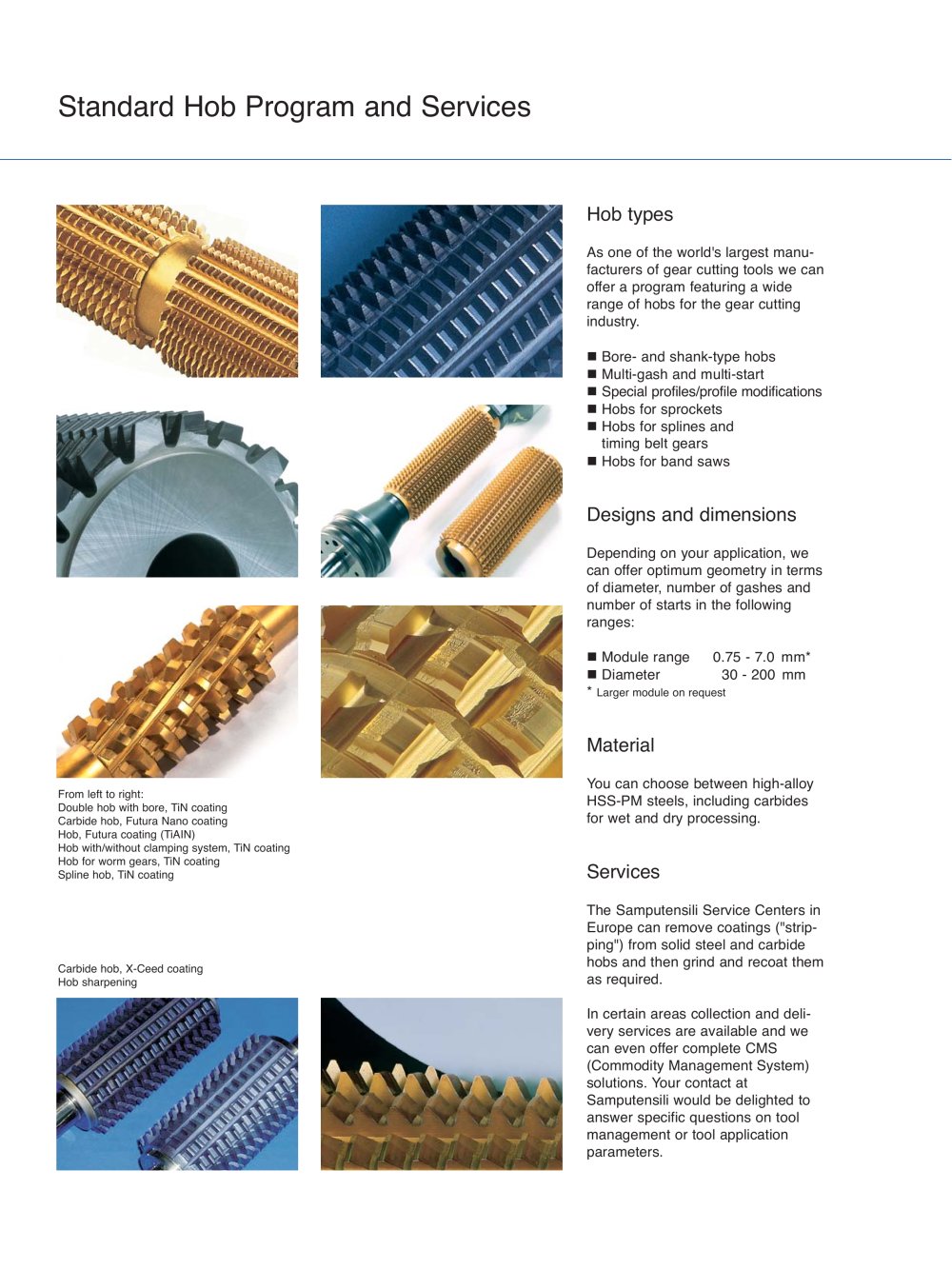

Standard Hob Program and Services

Hob types

As one of the world's largest manu-facturers of gear cutting tools we can offer a program featuring a wide range of hobs for the gear cutting industry. Bore- and shank-type hobs Multi-gash and multi-start Special profiles/profile modifications Hobs for sprockets Hobs for splines andtiming belt gears Hobs for band saws

Designs and dimensions

Depending on your application, wecan offer optimum geometry in terms of diameter, number of gashes and number of starts in the following ranges: Module range0.75 - 7.0mm* Diameter30 - 200mm*
Larger module on request

Material

From left to right: Double hob with bore, TiN coating Carbide hob, Futura Nano coating Hob, Futura coating (TiAIN) Hob with/without clamping system, TiN coating Hob for worm gears, TiN coating Spline hob, TiN coatingCarbide hob, X-Ceed coatingHob sharpening You can choose between high-alloyHSS-PM steels, including carbides for wet and dry processing.

Services

The Samputensili Service Centers in Europe can remove coatings ("strip- ping") from solid steel and carbide hobs and then grind and recoat them as required.In certain areas collection and deli-very services are available and we can even offer complete CMS (Commodity Management System) solutions. Your contact at Samputensili would be delighted to answer specific questions on tool management or tool application parameters.
