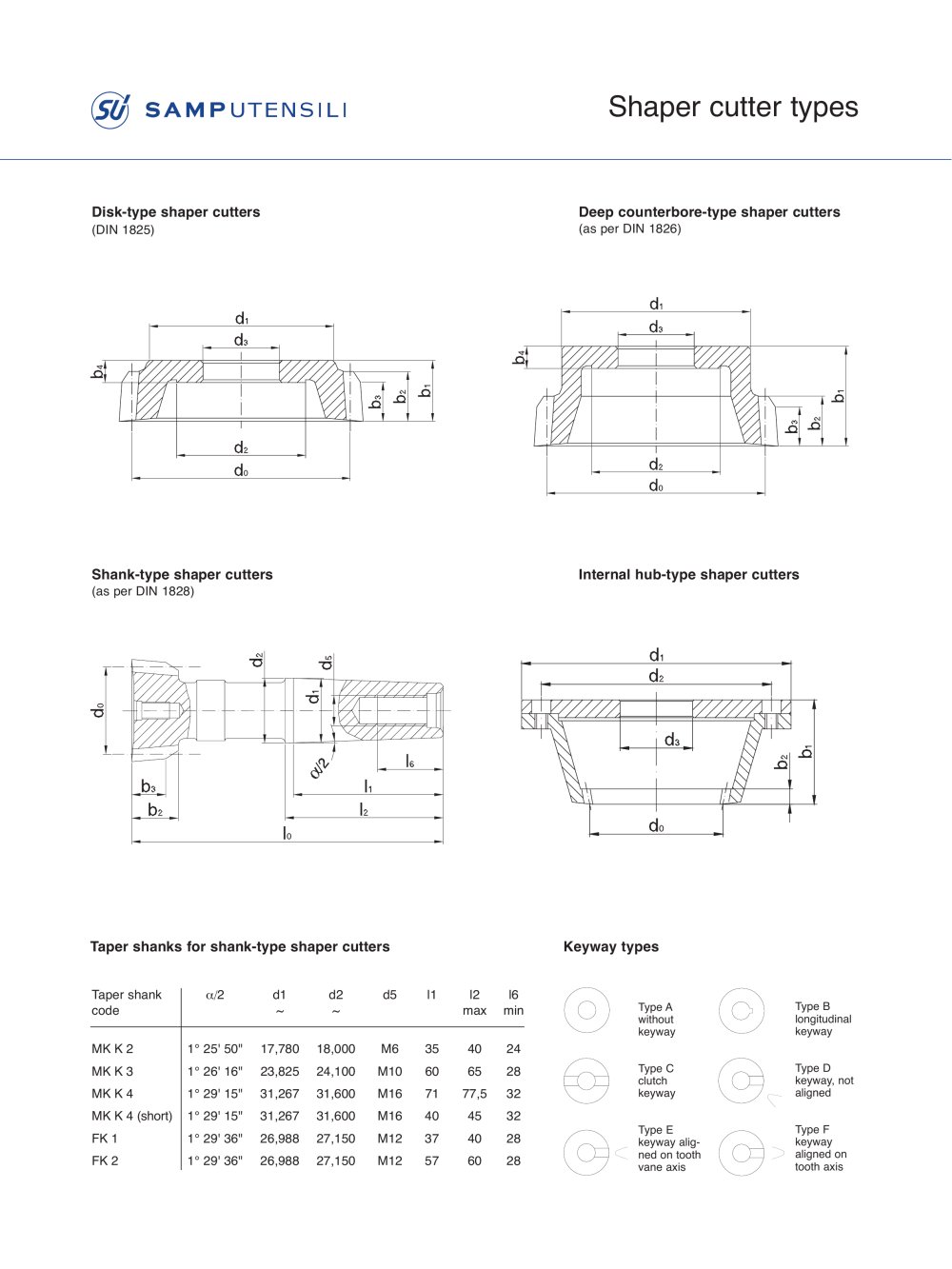

Shaper cutter types

Disk-type shaper cutters

(DIN 1825) (as per DIN 1826)

Shank-type shaper cutters Internal hub-type shaper cutters Deep counterbore-type shaper cutters

(as per DIN 1828)

Taper shanks for shank-type shaper cutters Keyway types

Taper shank α/ 2d1d2d5l1l2l6code~~maxminMK K 21°25' 50"17,78018,000M6354024MK K 31°26' 16"23,82524,100M10606528 MK K 41°29' 15"31,26731,600M167177,532 MK K 4 (short)1°29' 15"31,26731,600M16404532 FK 11°29' 36"26,98827,150M12374028 FK 21°29' 36"26,98827,150M12576028
Type Awithout keywayType C clutch keywayType Ekeyway alig- ned on tooth vane axis Type B longitudinal keywayType Dkeyway, not alignedType Fkeyway aligned on tooth axis
