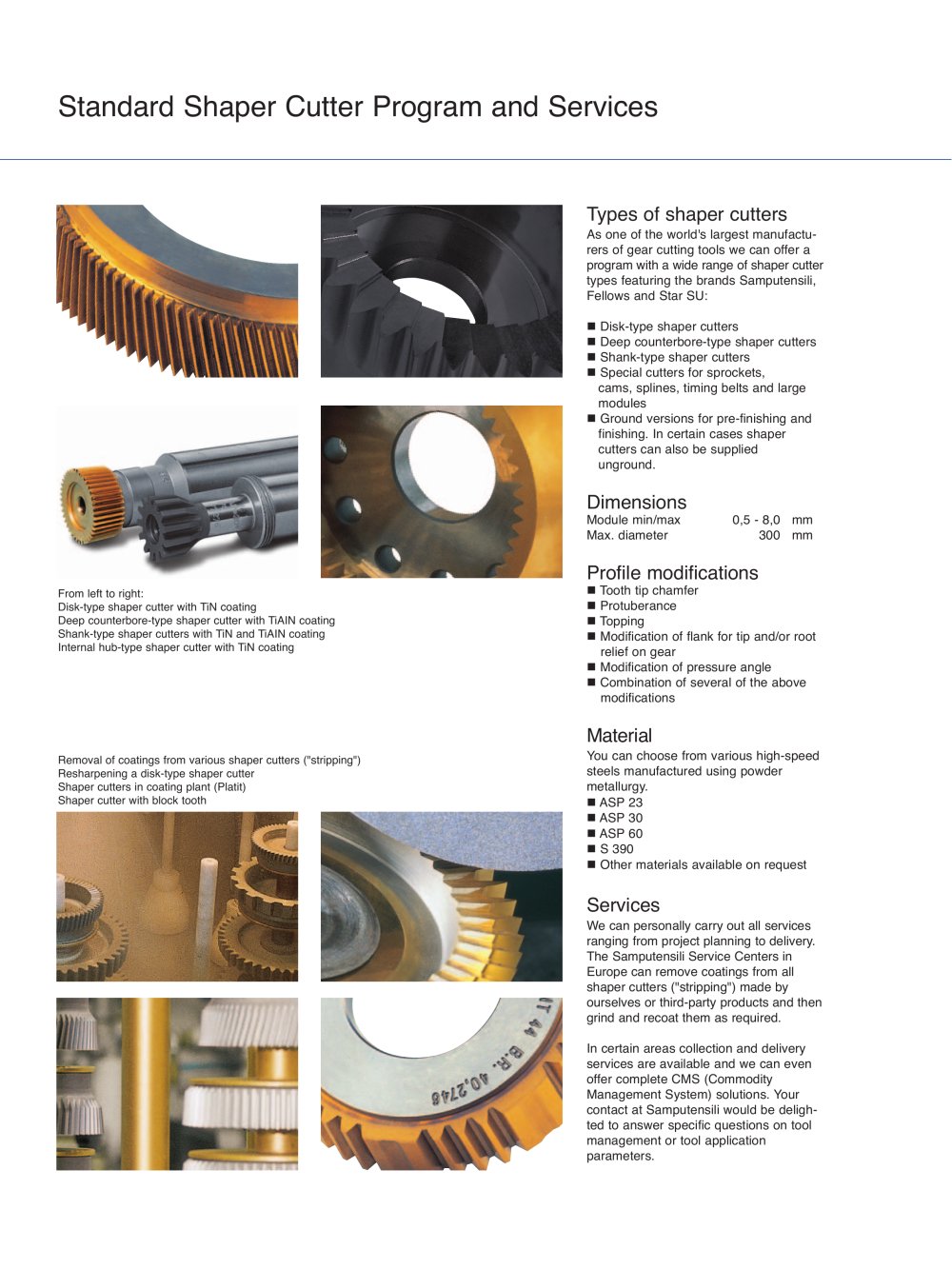

Standard Shaper Cutter Program and Services

Types of shaper cutters

As one of the world's largest manufactu-rers of gear cutting tools we can offer a program with a wide range of shaper cutter types featuring the brands Samputensili, Fellows and Star SU: Disk-type shaper cutters Deep counterbore-type shaper cutters Shank-type shaper cutters Special cutters for sprockets,cams, splines, timing belts and large modules Ground versions for pre-finishing andfinishing. In certain cases shaper cutters can also be supplied unground.

Dimensions

Module min/max 0,5 - 8,0 mm Max. diameter 300 mm

Profile modifications

From left to right: Disk-type shaper cutter with TiN coating Deep counterbore-type shaper cutter with TiAIN coating Shank-type shaper cutters with TiN and TiAIN coating Internal hub-type shaper cutter with TiN coating Removal of coatings from various shaper cutters ("stripping")Resharpening a disk-type shaper cutter Shaper cutters in coating plant (Platit) Shaper cutter with block tooth Tooth tip chamfer Protuberance Topping Modification of flank for tip and/or root relief on gear Modification of pressure angle Combination of several of the above modifications

Material

ASP23 You can choose from various high-speed steels manufactured using powder metallurgy. ASP30 ASP60 S 390 Other materials available on request

Services

We can personally carry out all servicesranging from project planning to delivery. The Samputensili Service Centers in Europe can remove coatings from all shaper cutters ("stripping") made by ourselves or third-party products and then grind and recoat them as required.In certain areas collection and deliveryservices are available and we can even offer complete CMS (Commodity Management System) solutions. Your contact at Samputensili would be deligh- ted to answer specific questions on tool management or tool application parameters.
