Catalogue S 150 - S 400 CDM Series Combined hobbing and chamfering/deburring machine

www.samputensili.com

Page

/ 6

/ 6

See other catalogues for SAMPUTENSILI

Text version of the page

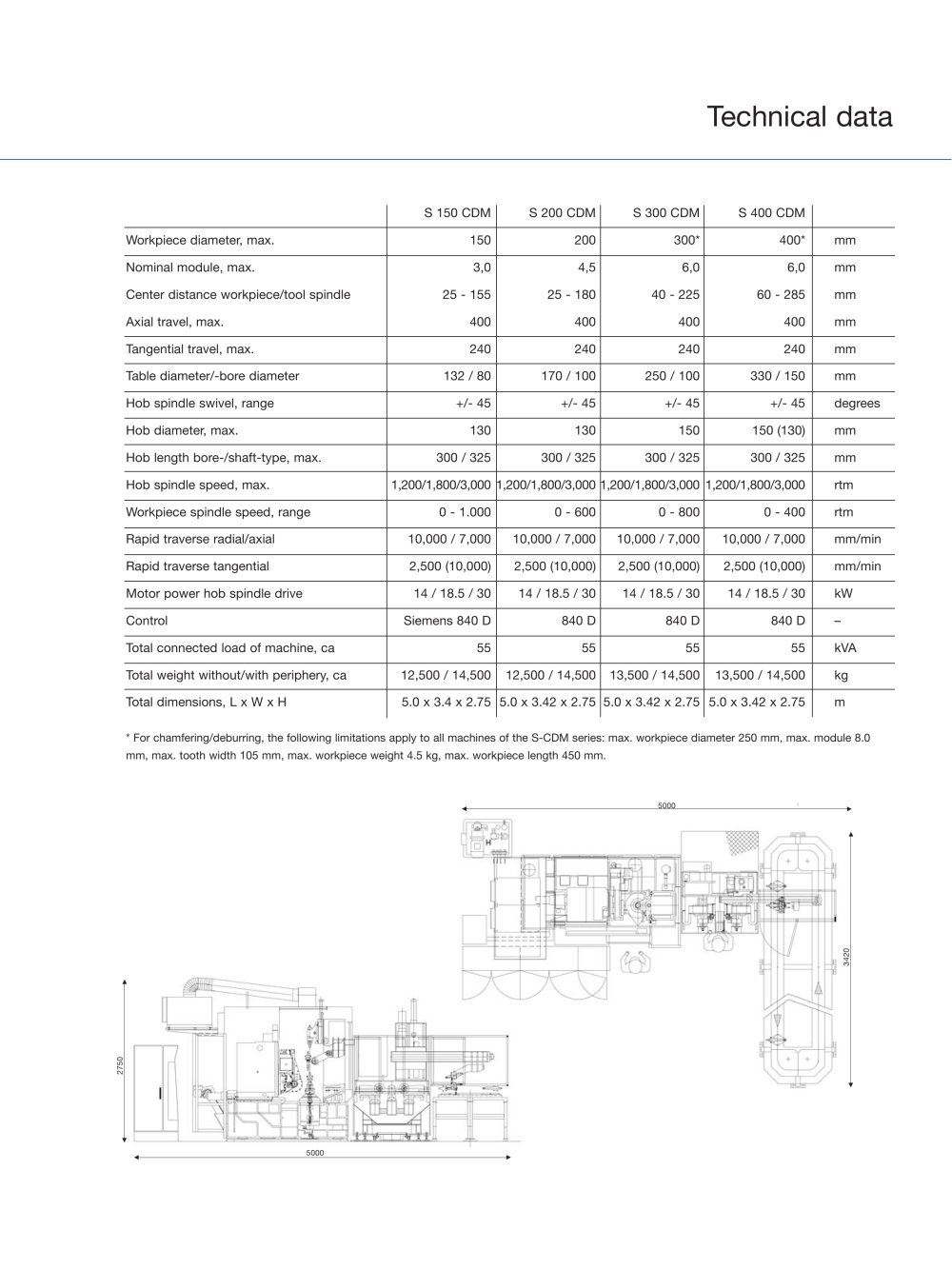

Technical data


	S 150 CDM	S 200 CDM	S 300 CDM	S 400 CDM
Workpiece diameter, max.	150	200	300*	400*	mm
Nominal module, max.	3,0	4,5	6,0	6,0	mm
Center distance workpiece/tool spindle	25 - 155	25 - 180	40 - 225	60 - 285	mm
Axial travel, max.	400	400	400	400	mm
Tangential travel, max.	240	240	240	240	mm
Table diameter/-bore diameter	132 / 80	170 / 100	250 / 100	330 / 150	mm
Hob spindle swivel, range	+/- 45	+/- 45	+/- 45	+/- 45	degrees
Hob diameter, max.	130	130	150	150 (130)	mm
Hob length bore-/shaft-type, max.	300 / 325	300 / 325	300 / 325	300 / 325	mm
Hob spindle speed, max.	1,200/1,800/3,000	1,200/1,800/3,000	1,200/1,800/3,000	1,200/1,800/3,000	rtm
Workpiece spindle speed, range	0 - 1.000	0 - 600	0 - 800	0 - 400	rtm
Rapid traverse radial/axial	10,000 / 7,000	10,000 / 7,000	10,000 / 7,000	10,000 / 7,000	mm/min
Rapid traverse tangential	2,500 (10,000)	2,500 (10,000)	2,500 (10,000)	2,500 (10,000)	mm/min
Motor power hob spindle drive	14 / 18.5 / 30	14 / 18.5 / 30	14 / 18.5 / 30	14 / 18.5 / 30	kW
Control	Siemens 840 D	840 D	840 D	840 D	-
Total connected load of machine, ca	55	55	55	55	kVA
Total weight without/with periphery, ca	12,500 / 14,500	12,500 / 14,500	13,500 / 14,500	13,500 / 14,500	kg
Total dimensions, L x W x H	5.0 x 3.4 x 2.75	5.0 x 3.42 x 2.75	5.0 x 3.42 x 2.75	5.0 x 3.42 x 2.75	m

* For chamfering/deburring, the following limitations apply to all machines of the S-CDM series: max. workpiece diameter 250 mm, max. module 8.0 mm, max. tooth width 105 mm, max. workpiece weight 4.5 kg, max. workpiece length 450 mm.
