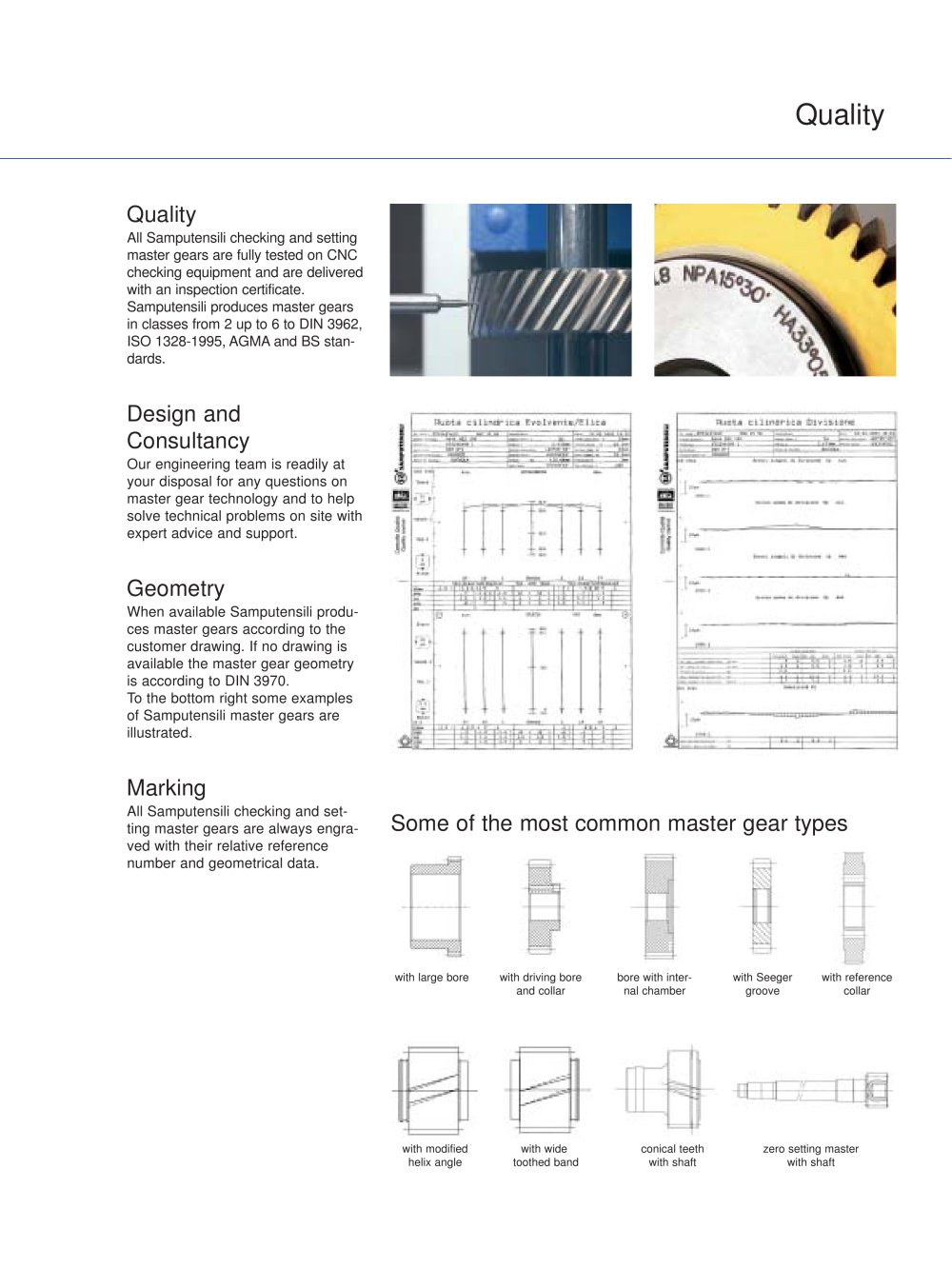

Quality

Quality

All Samputensili checking and settingmaster gears are fully tested on CNC checking equipment and are delivered with an inspection certificate. Samputensili produces master gears in classes from 2 up to 6 to DIN 3962, ISO 1328-1995, AGMAand BS stan- dards.

Design and Consultancy

Our engineering team is readily at your disposal for any questions on master gear technology and to help solve technical problems on site with expert advice and support.

Geometry

When available Samputensili produ- ces master gears according to the customer drawing. If no drawing is available the master gear geometry is according to DIN3970. Tothe bottom right some examples of Samputensili master gears are illustrated.

Marking

All Samputensili checking and set- ting master gears are always engra- ved with their relative reference number and geometrical data.

Some of the most common master gear types

with large bore with driving boreand collar bore with inter-nal chamber with Seegergroove with referencecollar with modifiedhelix angle with widetoothed band conical teeth with shaft zero setting master with shaft
