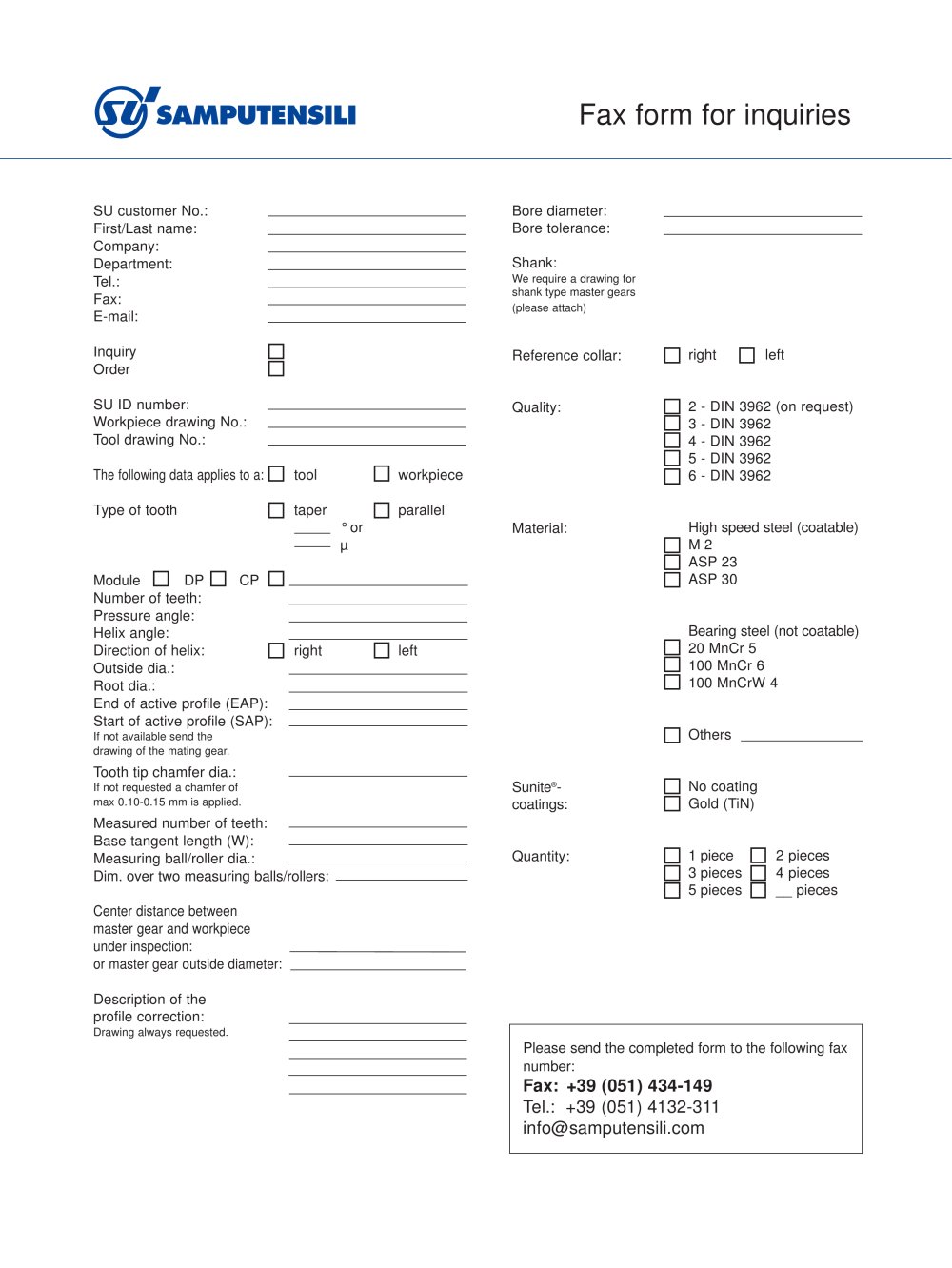

Fax form for inquiries

SU customer No.:

First/Last name:

Company:

Department:

Tel.:

Fax:

E-mail:

Inquiry Order

Bore diameter: Bore tolerance:

Shank:

We require a drawing for shank type master gears (please attach)

□ right □ left

Reference collar:

SU ID number: Workpiece drawing No.: Tool drawing No.:

□ 2 - DIN 3962 (on request)

3 - DIN 3962

4 - DIN 3962

5 - DIN 3962

6 - DIN 3962

Quality:

The following data applies to a: fJ tool

workpiece |~~| parallel

|~1 taper

Type of tooth

High speed steel (coatable)

□ M 2

□ ASP 23

□ ASP 30

Material:

Module □ DP □ CP □ Number of teeth: Pressure angle: Helix angle:

Bearing steel (not coatable)

□ 20 MnCr 5

□ 100 MnCr6

□ 100 MnCrW 4

□ right

Direction of helix:

left

Outside dia.: _

Root dia.: _

End of active profile (EAP): _

Start of active profile (SAP): _

If not available send the drawing of the mating gear.

Tooth tip chamfer dia.: _

If not requested a chamfer of max 0.10-0.15 mm is applied.

Measured number of teeth:

Base tangent length (W): -

Measuring ball/roller dia.: -

Dim. over two measuring balls/rollers:

□ Others

l~l No coating □ Gold (TiN)

Sunite®-coatings:

l~l 1 piece fj 2 pieces |~1 3 pieces fj 4 pieces ] 5 pieces [ _ pieces

Quantity:

Center distance between master gear and workpiece under inspection: or master gear outside diameter:

Description of the profile correction:

Drawing always requested.

Please send the completed form to the following fax number:

Fax: +39 (051) 434-149

Tel.: +39 (051) 4132-311 info@samputensili.com
