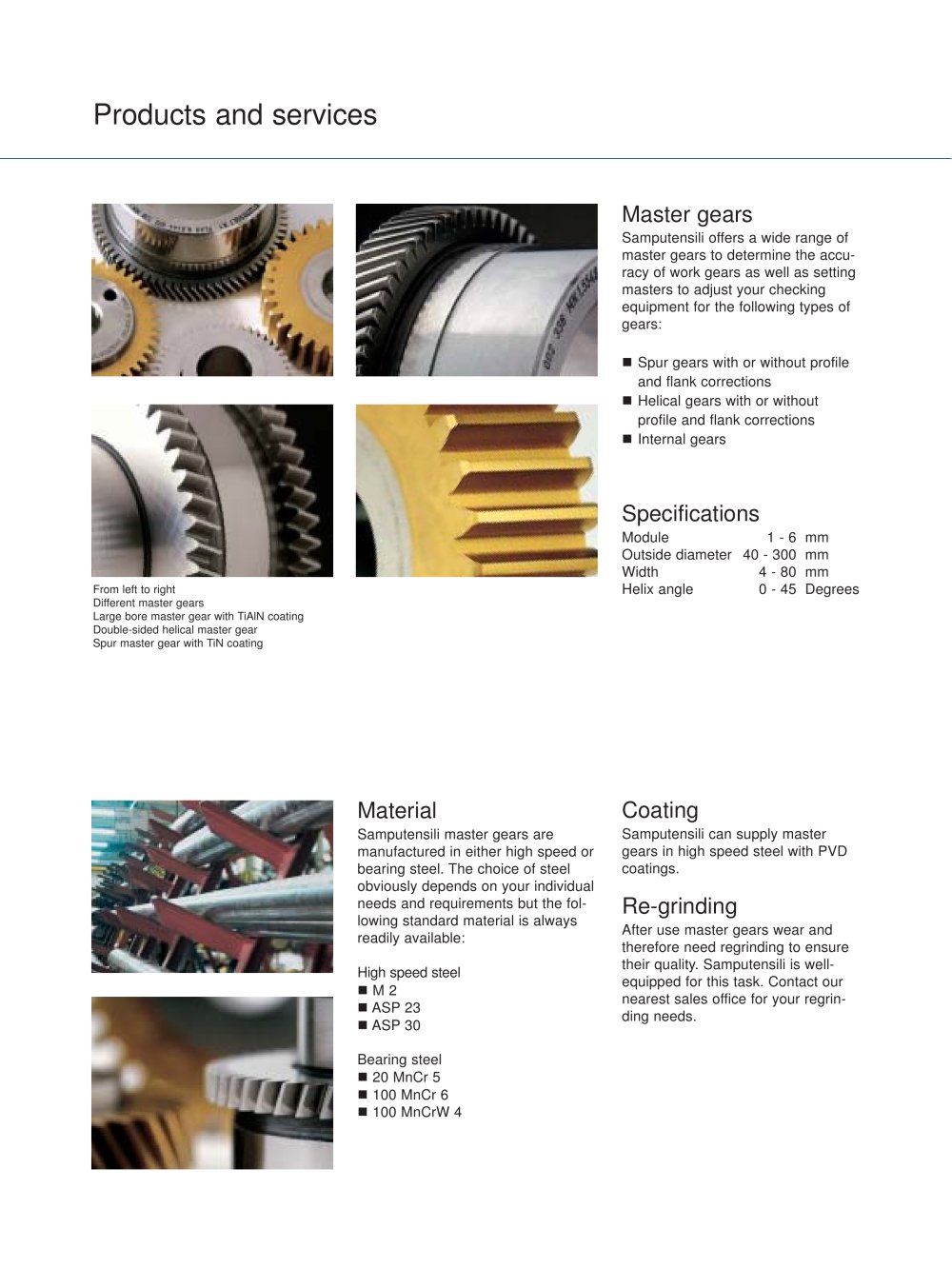

Products and services

Master gears

Spur gears with or without profile and flank corrections Samputensili offers a wide range ofmaster gears to determine the accu- racy of work gears as well as setting masters to adjust your checking equipment for the following types of gears: Helical gears with or without profile and flank corrections Internal gears

Specifications

Module1 - 6mmOutside diameter 40 - 300mm Width4 - 80mm Helix angle0 - 45Degrees
From left to rightDifferent master gears Large bore master gear with TiAlN coating Double-sided helical master gear Spur master gear with TiN coating M 2

Material

ASP23 ASP30Bearing steel

Coating

Samputensili master gears are manufactured in either high speed or bearing steel. The choice of steel obviously depends on your individual needs and requirements but the fol- lowing standard material is always readily available:High speed steel Samputensili can supply master gears in high speed steel with PVD coatings. 20 MnCr 5 100 MnCr 6 100 MnCrW 4

Re-grinding

After use master gears wear and therefore need regrinding to ensure their quality. Samputensili is well- equipped for this task. Contact our nearest sales office for your regrin- ding needs.
