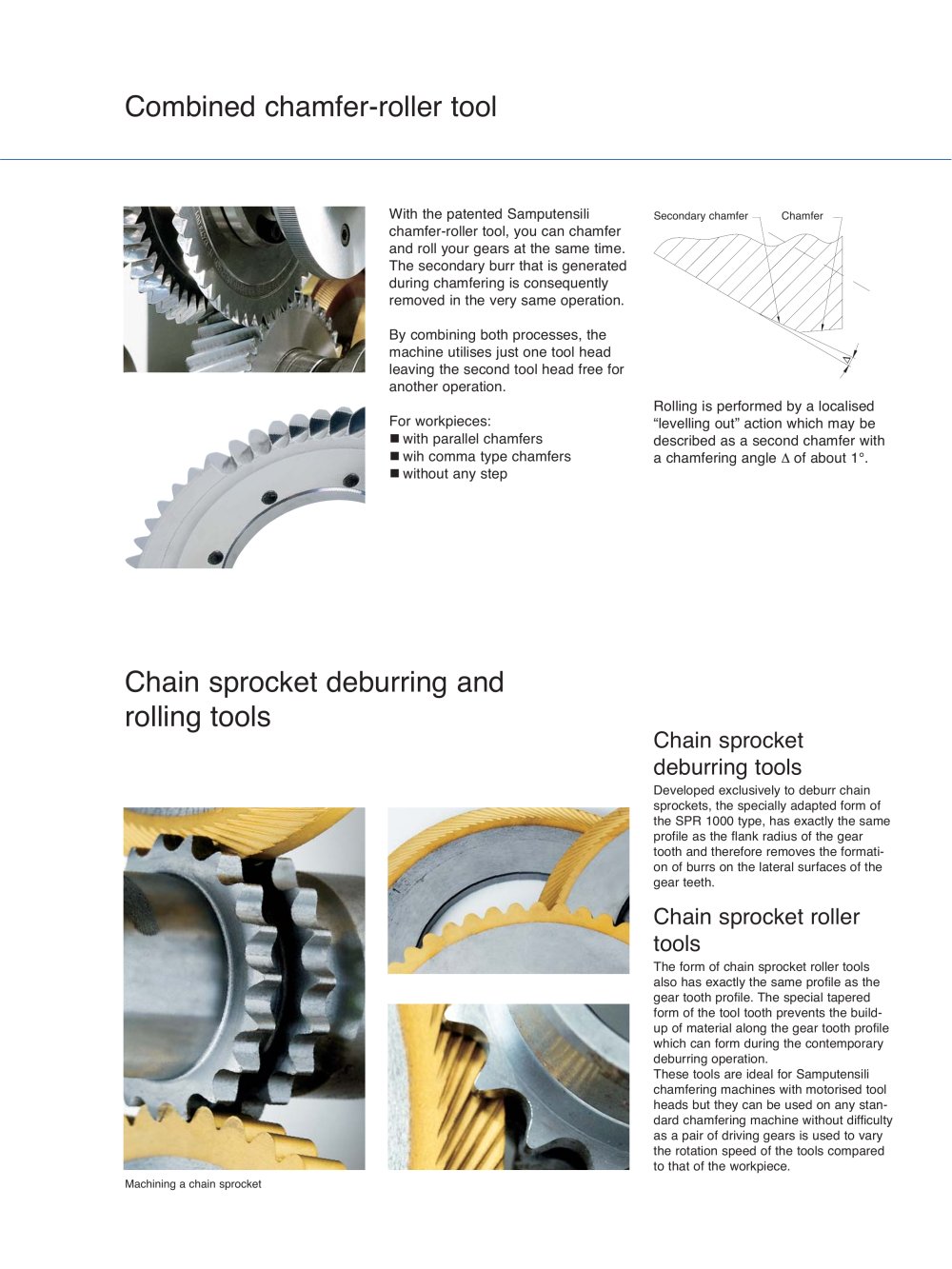

Combined chamfer-roller tool
With the patented Samputensili
chamfer-roller
tool, you can chamfer
and roll your gears at the same time.
The secondary burr that is generated
during chamfering is consequently
removed in the very same operation. By combining both processes, themachine utilises just one
tool head
leaving the second
tool head free for
another operation.For workpieces:
Secondary chamferChamfer with parallel chamfers wih comma type chamfers without any step ∆ of about 1°. Rolling is performed by a localised “levelling out” action which may be
described as a second chamfer with
a chamfering angle
Chain sprocket deburring and rolling tools
Chain sprocket deburring tools
Developed exclusively to deburr chain
sprockets, the specially adapted form of
the SPR 1000 type, has exactly the sameprofile as the flank radius of the geartooth and therefore removes the formati-on of burrs on the lateral surfaces of the
gear teeth.
Chain sprocket roller
tools
The form of chain sprocket roller
tools
also has exactly the same profile as the
gear tooth profile. The special tapered
form of the
tool tooth prevents the build-
up of material along the gear tooth profile
which can form during the contemporary
deburring operation. These
tools are ideal for Samputensili
chamfering machines with motorised
tool
heads but they can be used on any stan-
dard chamfering machine without difficulty
as a pair of driving gears is used to vary
the rotation speed of the
tools compared
to that of the workpiece. Machining a chain sprocket
