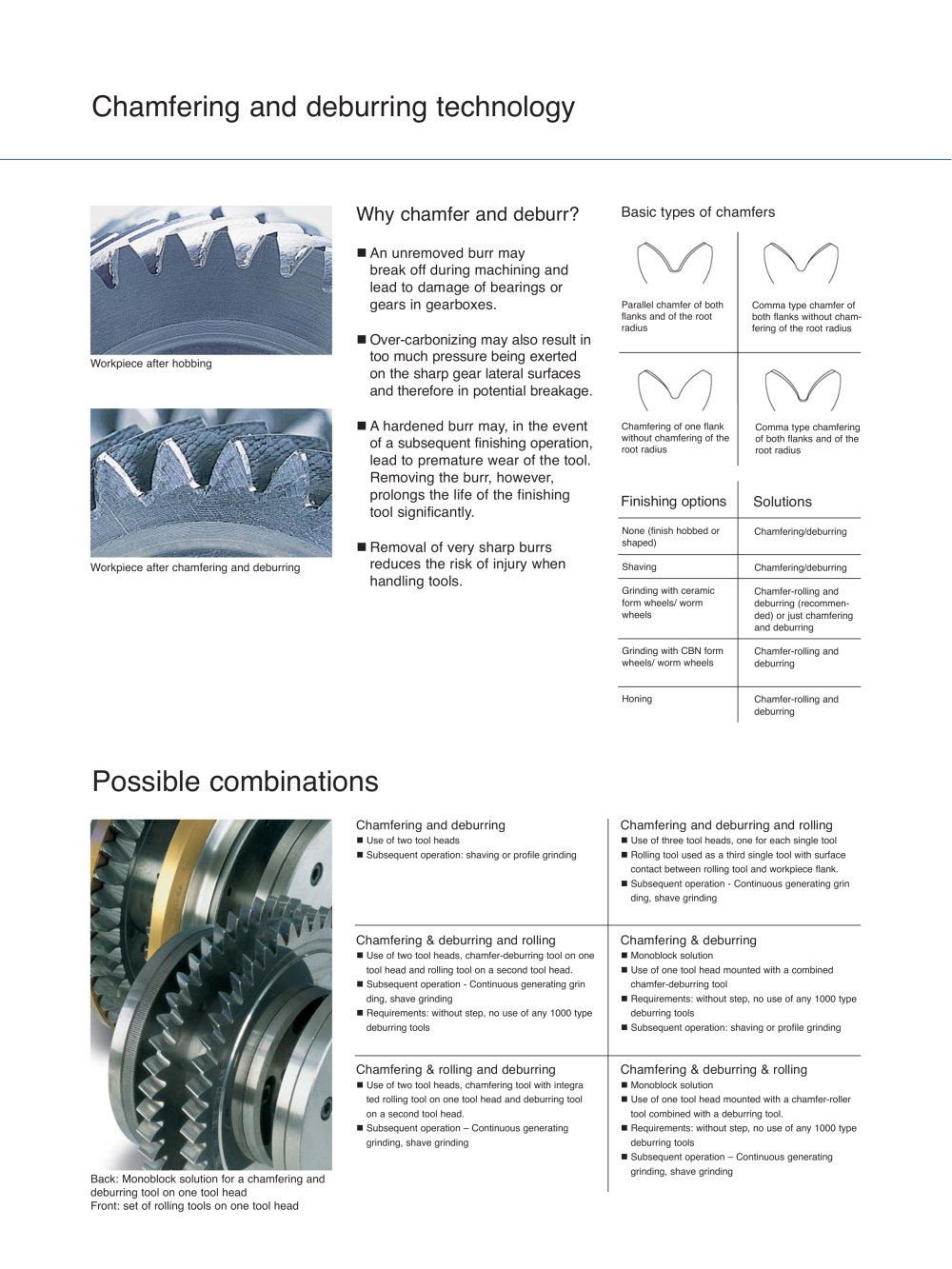

| | | Chamfering and deburring technology | | |
| | | |
| | | Why chamfer and deburr? saisie types °f cirrifere | | |
| | | |
| | | ■ An unremoved burr may break off during machining and lead to damage of bearings or gears in gearboxes. ■ Over-carbonizing may also result in too much pressure being exerted on the sharp gear lateral surfaces and therefore in potential breakage. ■ A hardened burr may, in the event of a subsequent finishing operation, lead to premature wear of the tool. Removing the burr, however, prolongs the life of the finishing tool significantly. | | |
| | | | | | | | | | Parallel chamfer of both flanks and of the root radius | Comma type chamfer of both flanks without chamfering of the root radius | | | | (V? Chamfering of one flank without chamfering of the root radius | Comma type chamfering of both flanks and of the root radius | | | | Finishing options | Solutions | | | | None (finish hobbed or shaped) | Chamfering/deburring | | | | Shaving | Chamfering/deburring | | | | Grinding with ceramic form wheels/ worm wheels | Chamfer-rolling and deburring (recommended) or just chamfering and deburring | | | | Grinding with CBN form wheels/ worm wheels | Chamfer-rolling and deburring | | | | Honing | Chamfer-rolling and deburring | | | | | | | | | |
| | | Workpiece after hobbing | | |
| | | |
| | | |
| | | ■ Removal of very sharp burrs reduces the risk of injury when handling tools. | | |
| | | Workpiece after chamfering and | | deburring | | |
| | | |
| | | |
| | | |
| | | Possible combinations | | |
| | | |
| | | | | | | | | | Chamfering and deburring ■ Use of two tool heads ■ Subsequent operation: shaving or profile grinding | Chamfering and deburring and rolling ■ Use of three tool heads, one for each single tool ■ Rolling tool used as a third single tool with surface contact between rolling tool and workpiece flank. ■ Subsequent operation - Continuous generating grin ding, shave grinding | | | | Chamfering & deburring and rolling ■ Use of two tool heads, chamfer-deburring tool on one tool head and rolling tool on a second tool head. ■ Subsequent operation - Continuous generating grin ding, shave grinding ■ Requirements: without step, no use of any 1000 type deburring tools | Chamfering & deburring ■ Monoblock solution ■ Use of one tool head mounted with a combined chamfer-deburring tool ■ Requirements: without step, no use of any 1000 type deburring tools ■ Subsequent operation: shaving or profile grinding | | | | Chamfering & rolling and deburring ■ Use of two tool heads, chamfering tool with integra ted rolling tool on one tool head and deburring tool on a second tool head. ■ Subsequent operation - Continuous generating grinding, shave grinding | Chamfering & deburring & rolling ■ Monoblock solution ■ Use of one tool head mounted with a chamfer-roller tool combined with a deburring tool. ■ Requirements: without step, no use of any 1000 type deburring tools ■ Subsequent operation - Continuous generating grinding, shave grinding | | | | | | | | | |
| | | Back: Monoblock solution for a chamfering and deburring tool on one tool head Front: set of rolling tools on one tool head | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | |
