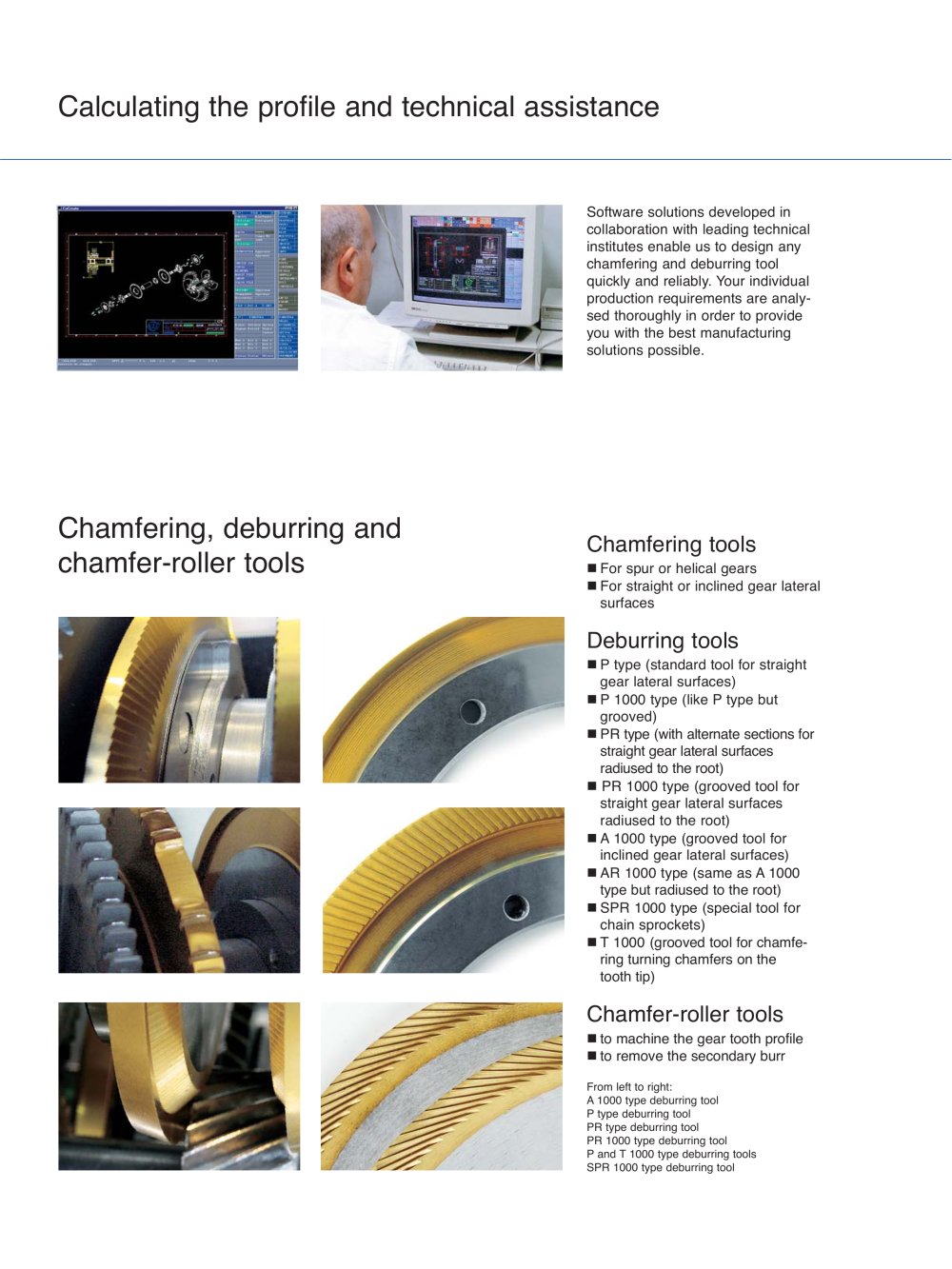

Calculating the profile and technical assistance

Software solutions developed incollaboration with leading technical institutes enable us to design any chamfering and deburring tool quickly and reliably. Your individual production requirements are analy- sed thoroughly in order to provide you with the best manufacturing solutions possible.

Chamfering, deburring and chamfer-roller tools

Chamfering tools

For spur or helical gears For straight or inclined gear lateral surfaces

Deburring tools

Ptype (standard tool for straight gear lateral surfaces) P1000 type (like Ptype but grooved) PR type (with alternate sections for straight gear lateral surfaces radiused to the root) PR 1000 type (grooved tool for straight gear lateral surfaces radiused to the root) A1000 type (grooved tool for inclined gear lateral surfaces) AR 1000 type (same as A1000 type but radiused to the root) SPR 1000 type (special tool for chain sprockets) T1000 (grooved tool for chamfe-ring turning chamfers on the tooth tip)

Chamfer-roller tools

to machine the gear tooth profile to remove the secondary burr
From left to right:A1000 type deburring tool Ptype deburring tool PR type deburring tool PR 1000 type deburring tool Pand T1000 type deburring tools SPR 1000 type deburring tool
