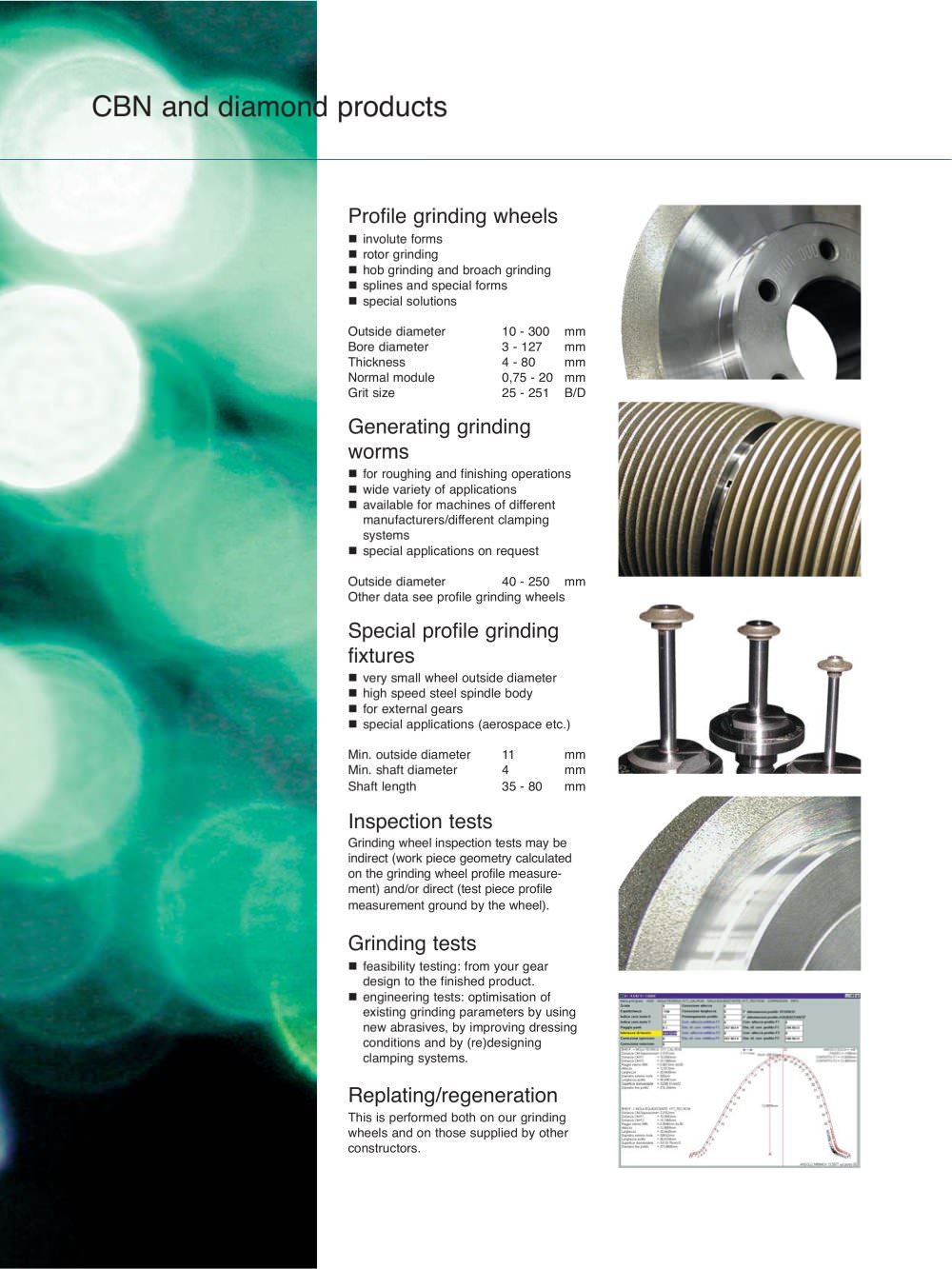

CBN and diamond products

Profile grinding wheels

involute forms rotor grinding hob grinding and broach grinding splines and special forms special solutionsOutside diameter10 - 300mmBore diameter3 - 127mm Thickness4 - 80mm Normal module0,75 - 20mm Grit size25 - 251B/D

Generating grinding worms

for roughing and finishing operations wide variety of applications available for machines of different manufacturers/different clamping systems special applications on requestOutside diameter40 - 250mmOther data see profile grinding wheels

Special profile grinding fixtures

very small wheel outside diameter high speed steel spindle body for external gears special applications (aerospace etc.)Min. outside diameter11 mmMin. shaft diameter4mmShaft length35 - 80mm

Inspection tests

Grinding wheel inspection tests may beindirect (work piece geometry calculated on the grinding wheel profile measure- ment) and/or direct (test piece profile measurement ground by the wheel).

Grinding tests

feasibility testing: from your gear design to the finished product. engineering tests: optimisation of existing grinding parameters by using new abrasives, by improving dressing conditions and by (re)designing clamping systems.

Replating/regeneration

This is performed both on our grinding wheels and on those supplied by other constructors.
