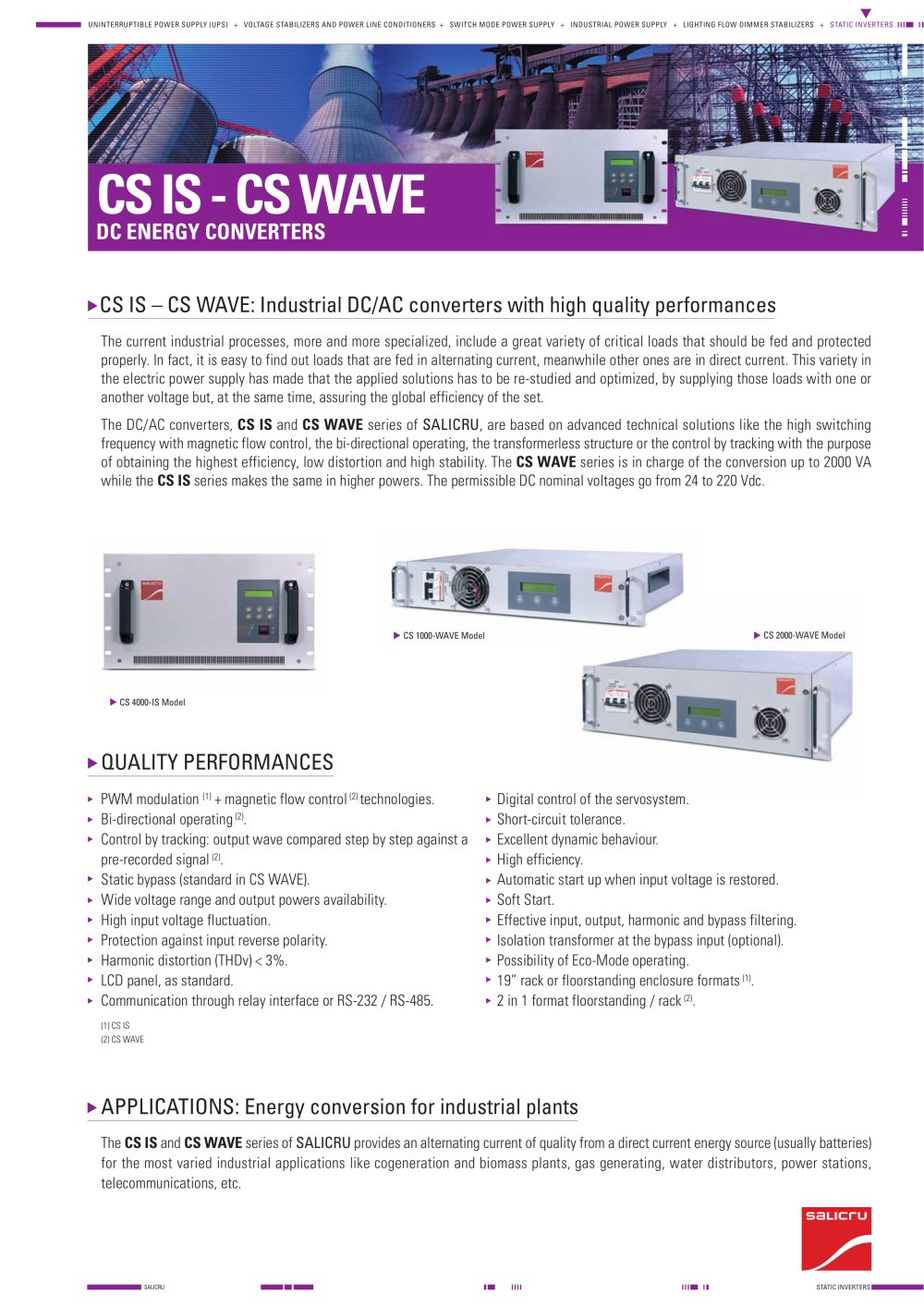

Product datasheet: CS IS - CS WAVE Series - 1

UNINTERRUPTIBLE POWER SUPPLY (UPS) + VOLTAGE STABILIZERS AND POWER LINE CONDITIONERS + SWITCH MODE POWER SUPPLY + INDUSTRIAL POWER SUPPLY + LIGHTING FLOW DIMMER STABILIZERS + STATIC INVERTERS SALICRU The current industrial processes, more and more specialized, include a great variety of critical loads that should be fed and protectedproperly. In fact, it is easy to find out loads that are fed in alternating current, meanwhile other ones are in direct current. This variety inthe electric power supply has made that the applied solutions has to be re-studied and optimized, by supplying those loads with one oranother voltage but, at the same time, assuring the global efficiency of the set.The DC/AC converters, CS IS and CS WAVE series of SALICRU , are based on advanced technical solutions like the high switchingfrequency with magnetic flow control, the bi-directional operating, the transformerless structure or the control by tracking with the purposeof obtaining the highest efficiency, low distortion and high stability. The CS WAVE series is in charge of the conversion up to 2000 VAwhile the CS IS series makes the same in higher powers. The permissible DC nominal voltages go from 24 to 220 Vdc. The > CS 1000-WAVE Model CS 2000-WAVE Model CS 4000-IS Model PWM modulation > (1) + magnetic flow control > (2) technologies.Bi-directional operating > (2) .Control by tracking: output wave compared step by step against a pre-recorded signal > (2) .Static bypass (standard in CS WAVE). Wide voltage range and output powers availability. High input voltage fluctuation. Protection against input reverse polarity. Harmonic distortion (THDv) < 3%. LCD panel, as standard. Communication through relay interface or RS-232 / RS-485. Digital control of the servosystem.Short-circuit tolerance. Excellent dynamic behaviour. High efficiency. Automatic start up when input voltage is restored. Soft Start. Effective input, output, harmonic and bypass filtering. Isolation transformer at the bypass input (optional). Possibility of Eco-Mode operating. 19֔ rack or floorstanding enclosure formats > (1) .2 in 1 format floorstanding / rack > (2) . > (1) CS IS(2) CS WAVE CS IS and CS WAVE series of SALICRU provides an alternating current of quality from a direct current energy source (usually batteries)for the most varied industrial applications like cogeneration and biomass plants, gas generating, water distributors, power stations,telecommunications, etc. > SALICRU STATIC INVERTERS size="-3">
