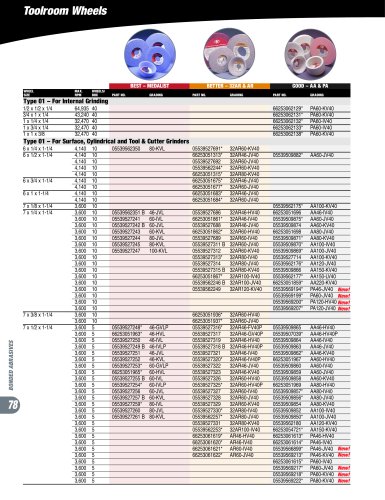

Carborundum CA1000 Bonded Section - 58 Pages
BEST – MEDALIST BETTER – 32AR & AR GOOD – AA & PA
BONDED ABRASIVES
78
Toolroom Wheels
WHEEL MAX. WHEELS/
SIZE RPM BOX PART NO. GRADING PART NO. GRADING PART NO. GRADING
Type 01 – For Internal Grinding
1/2 x 1/2 x 1/4 64,935 40 66253062129* PA60-KV40
3/4 x 1 x 1/4 43,240 40 66253062131* PA60-KV40
1 x 1/4 x 1/4 32,470 40 66253062132* PA60-IV40
1 x 3/4 x 1/4 32,470 40 66253062133* PA60-IV40
1 x 1 x 3/8 32,470 40 66253062138* PA60-KV40
Type 01 – For Surface, Cylindrical and Tool & Cutter Grinders
6 x 1/4 x 1-1/4 4,140 10 05539562350 80-KVL 05539527691* 32AR60-KV40
6 x 1/2 x 1-1/4 4,140 10 66253051313* 32AR46-JV40 05539509882* AA60-JV40
4,140 10 05539527692 32AR60-JV40
4,140 10 05539562244* 32AR60-KV40
4,140 10 66253051315* 32AR80-KV40
6 x 3/4 x 1-1/4 4,140 10 66253051675* 32AR46-JV40
4,140 10 66253051677* 32AR60-JV40
6 x 1 x 1-1/4 4,140 10 66253051683* 32AR46-JV40
4,140 10 66253051684* 32AR60-JV40
7 x 1/8 x 1-1/4 3,600 10 05539562175* AA100-KV40
7 x 1/4 x 1-1/4 3,600 10 05539562351 B 46-JVL 05539527686 32AR46-HV40 66253051696 AA46-IV40
3,600 10 05539527241 60-IVL 66253051861* 32AR46-IV40 05539509875* AA60-JV40
3,600 10 05539527242 B 60-JVL 05539527688 32AR46-JV40 05539509874 AA60-KV40
3,600 10 05539527243 60-KVL 66253051862* 32AR60-HV40 66253051698 AA80-JV40
3,600 10 05539527244 80-JVL 05539527689 32AR60-IV40 05539509871* AA80-KV40
3,600 10 05539527245 80-KVL 05539527311 B 32AR60-JV40 05539509870* AA100-IV40
3,600 10 05539527247 100-KVL 05539527312 32AR60-KV40 05539509869* AA100-JV40
3,600 10 05539527313* 32AR80-IV40 05539527714 AA100-KV40
3,600 10 05539527314 32AR80-JV40 05539562176* AA120-JV40
3,600 10 05539527315 B 32AR80-KV40 05539509866 AA150-KV40
3,600 10 66253051867* 32AR100-IV40 05539562177* AA150-LV40
3,600 10 05539562246 B 32AR100-JV40 66253051859* AA220-KV40
3,600 10 05539562249 32AR120-KV40 05539569194* PA46-JV40
3,600 10 05539569199* PA60-JV40
3,600 10 05539569200* PA120-HV40
3,600 10 05539569207* PA120-JV40
7 x 3/8 x 1-1/4 3,600 10 66253051936* 32AR60-HV40
3,600 10 66253051937* 32AR60-JV40
7 x 1/2 x 1-1/4 3,600 5 05539527248* 46-GVLP 05539527316* 32AR46-FV40P 05539509865 AA46-HV40
3,600 5 66253051963* 46-HVL 05539527317 32AR46-GV40P 05539507039* AA46-HV40P
3,600 5 05539527250 46-IVL 05539527319 32AR46-HV40 05539509864 AA46-IV40
3,600 5 05539527249 B 46-IVLP 05539527318 B 32AR46-HV40P 05539509863 AA46-JV40
3,600 5 05539527251 46-JVL 05539527321 32AR46-IV40 05539509862* AA46-KV40
3,600 5 05539527252 46-KVL 05539527320* 32AR46-IV40P 66253051967 AA60-HV40
3,600 5 05539527253* 60-GVLP 05539527322 32AR46-JV40 05539509860 AA60-IV40
3,600 5 66253051965* 60-HVL 05539527323 32AR46-KV40 05539509859 AA60-JV40
3,600 5 05539527255 B 60-IVL 05539527326 32AR60-HV40 05539509858 AA60-KV40
3,600 5 05539527254* 60-IVLP 05539527325* 32AR60-HV40P 66253051969 AA80-HV40
3,600 5 05539527256 60-JVL 05539527327 32AR60-IV40 05539509857* AA80-IV40
3,600 5 05539527257 B 60-KVL 05539527328 32AR60-JV40 05539509856* AA80-JV40
3,600 5 05539527259* 80-IVL 05539527329 32AR60-KV40 05539509854 AA80-KV40
3,600 5 05539527260 80-JVL 05539527330* 32AR80-IV40 05539509852 AA100-IV40
3,600 5 05539527261 B 80-KVL 05539562257* 32AR80-JV40 05539509850* AA100-JV40
3,600 5 05539527331 32AR80-KV40 05539562180 AA120-KV40
3,600 5 05539562253* 32AR100-IV40 66253054721* AA150-KV40
3,600 5 66253061619* AR46-HV40 66253061613* PA46-HV40
3,600 5 66253061620* AR46-IV40 66253061614* PA46-IV40
3,600 5 66253061621* AR60-IV40 05539566899* PA46-JV40
3,600 5 66253061622* AR60-JV40 05539569213* PA46-KV40
3,600 5 66253061615* PA60-IV40
3,600 5 05539569217* PA60-JV40
3,600 5 05539569218* PA60-KV40
3,600 5 05539569222* PA80-KV40
New!
New!
New!
New!
New!
New!
New!
New!
New!
-
