Primary lithium batteries: selector guide - SAFT - #5

Text version of the page

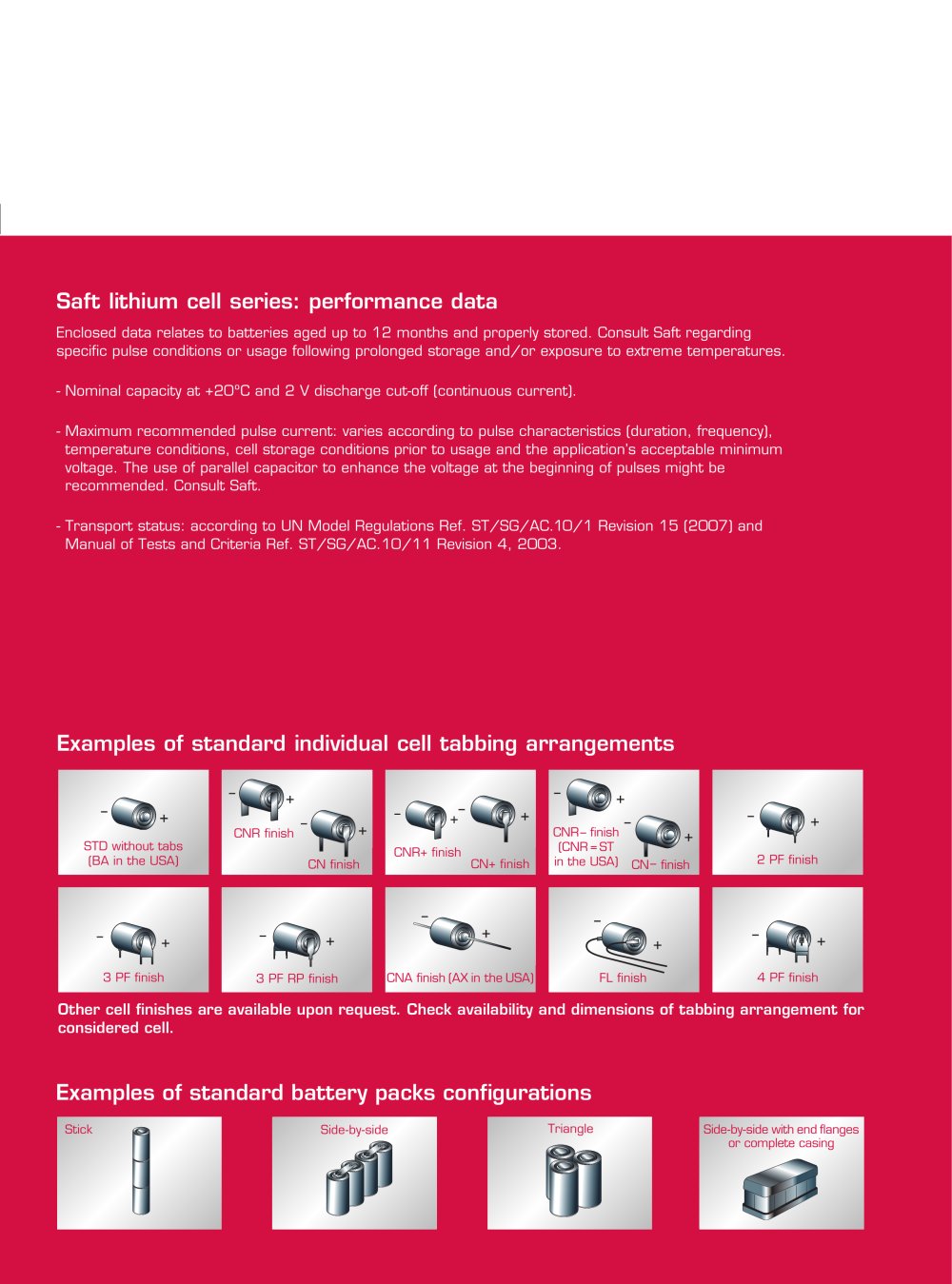

Enclosed data relates to batteries aged up to 12 months and properly stored. Consult Saft regarding specific pulse conditions or usage following prolonged storage and/or exposure to extreme temperatures. - Nominal capacity at +20ºC and 2 V discharge cut-off (continuous current). - Maximum recommended pulse current: varies according to pulse characteristics (duration, frequency), temperature conditions, cell storage conditions prior to usage and the application’s acceptable minimum voltage. The use of parallel capacitor to enhance the voltage at the beginning of pulses might be recommended. Consult Saft. - Transport status: according to UN Model Regulations Ref. ST/SG/AC.10/1 Revision 15 (2007) and Manual of Tests and Criteria Ref. ST/SG/AC.10/11 Revision 4, 2003. Saft lithium cell series: performance data Examples of standard battery packs configurations Examples of standard individual cell tabbing arrangements Stick Side-by-side Triangle Other cell finishes are available upon request. Check availability and dimensions of tabbing arrangement for considered cell. Side-by-side with end flanges or complete casing 2 PF finish 3 PF finish - + 3 PF RP finish CNA finish (AX in the USA) FL finish 4 PF finish CNR finish - + - + CN finish CNR– finish (CNR = ST in the USA) CN– finish CNR+ finish CN+ finish STD without tabs (BA in the USA)
