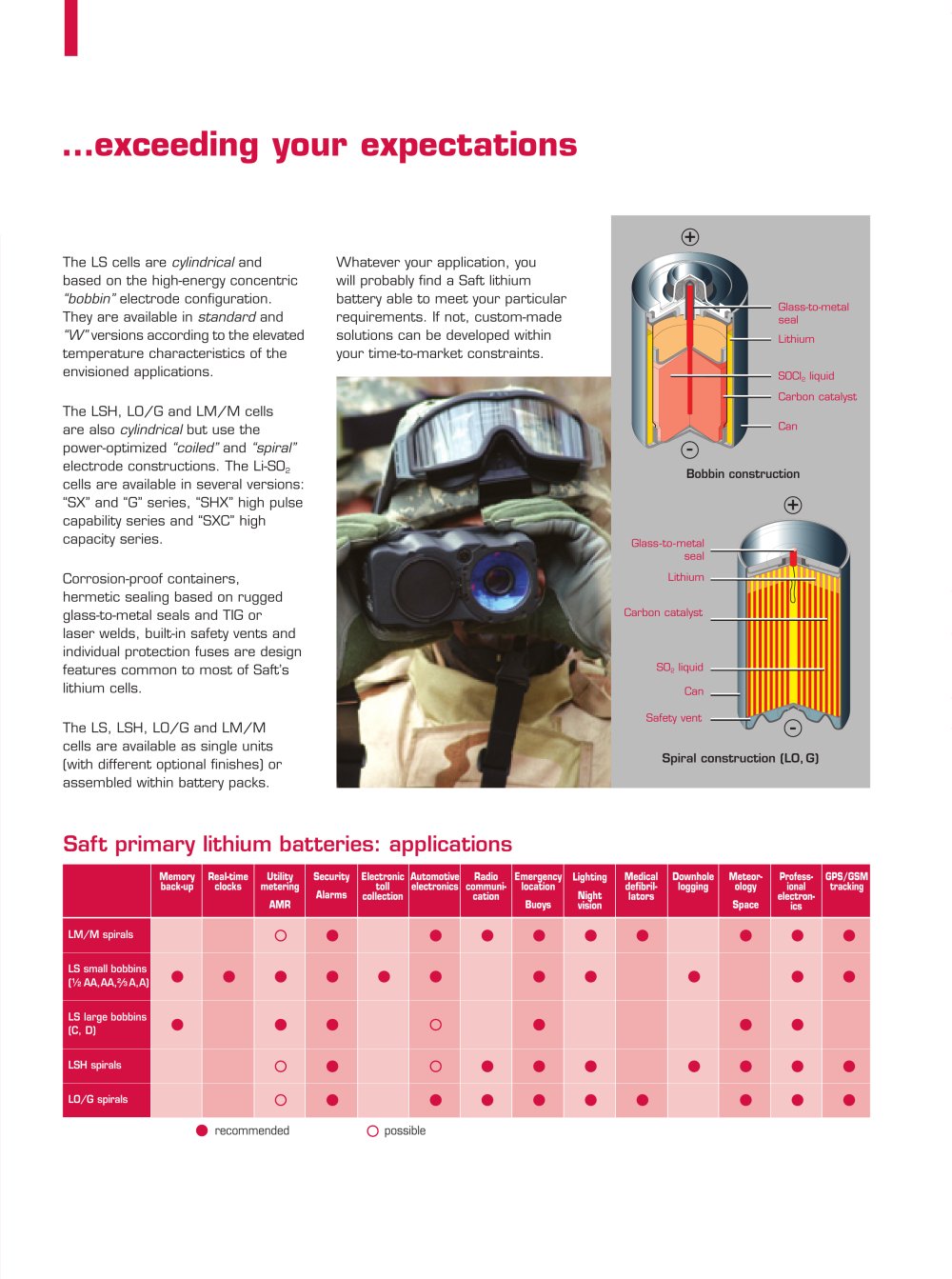

…exceeding your expectations Memory back-up Real-time clocks Utility metering AMR Security Alarms Electronic toll collection Automotive electronics Radio communication Emergency location Buoys Downhole logging Meteorology Space Professional electronics GPS/GSM tracking recommended possible Medical defibrillators Lighting Night vision Saft primary lithium batteries: applications LM/M spirals LS small bobbins (½ AA, AA,²/³ A, A) LS large bobbins (C, D) LSH spirals LO/G spirals The LS cells are cylindrical and based on the high-energy concentric “bobbin” electrode configuration. They are available in standard and “W” versions according to the elevated temperature characteristics of the envisioned applications. The LSH, LO/G and LM/M cells are also cylindrical but use the power-optimized “coiled” and “spiral” electrode constructions. The Li-SO2 cells are available in several versions: “SX” and “G” series, “SHX” high pulse capability series and “SXC” high capacity series. Corrosion-proof containers, hermetic sealing based on rugged glass-to-metal seals and TIG or laser welds, built-in safety vents and individual protection fuses are design features common to most of Saft’s lithium cells. The LS, LSH, LO/G and LM/M cells are available as single units (with different optional finishes) or assembled within battery packs. Whatever your application, you will probably find a Saft lithium battery able to meet your particular requirements. If not, custom-made solutions can be developed within your time-to-market constraints. Glass-to-metal seal Bobbin construction - Lithium Carbon catalyst SOCl2 liquid Can Spiral construction (LO, G) Safety vent + - Glass-to-metal seal Lithium Carbon catalyst SO2 liquid Can +
