2012 MANUAL PRODUCT GUIDE - 35 / 92 Pages

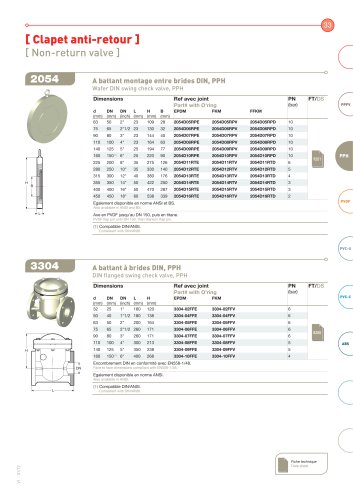

CoverDef_Layout 1 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:18.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Microsoft Sans Serif", sans-serif; } [ Clapet anti-retour ] A battant montage entre brides DIN, PPH Wafer DIN swing check valve, PPH Dimensions Ref avec joint PN Part# with O'ring (bar) d DN DN L H B EPDM FKM FFKM (mm) (mm) (inch) (mm) (mm) (mm) 63 50 2" 23 109 28 2054D05RPE 2054D05RPV 2054D05RPD 10 75 65 2"1/2 23 130 32 2054D06RPE 2054D06RPV 2054D06RPD 10 90 80 3" 23 144 40 2054D07RPE 2054D07RPV 2054D07RPD 10 110 100 4" 23 164 63 2054D08RPE 2054D08RPV 2054D08RPD 10 140 125 5" 25 194 77 2054D09RPE 2054D09RPV 2054D09RPD 10 160 150 <1> 6" 25 220 90 2054D10RPE 2054D10RPV 2054D10RPD 10 225 200 8" 35 275 126 2054D11RTE 2054D11RTV 2054D11RTD 6 280 250 10" 35 330 140 2054D12RTE 2054D12RTV 2054D12RTD 5 315 300 12" 40 380 176 2054D13RTE 2054D13RTV 2054D13RTD 4 355 350 14" 50 422 250 2054D14RTE 2054D14RTV 2054D14RTD 3 400 400 16" 50 470 287 2054D15RTE 2054D15RTV 2054D15RTD 3 450 450 18" 60 538 339 2054D16RTE 2054D16RTV 2054D16RTD 2 9201 Egalement disponible en norme ANSI et BS. Also available in ANSI and BS. Axe en PVDF jusqu'au DN 150, puis en titane. PVDF flap pin until DN 150, then titanium flap pin. (1) Compatible DIN/ANSI. Consistent with DIN/ANSI. PVC-U A battant brides DIN, PPH DIN flanged swing check valve, PPH Dimensions Ref avec joint PN FT/DS Part# with O'ri (bar) d DN DN L H EPDM FKM (mm) (mm) (inch) (mm) (mm) 32 25 1" 160 120 3304-02FFE 3304-02FFV 6 50 40 1"1/2 180 138 3304-04FFE 3304-04FFV 6 63 50 2" 200 164 3304-05FFE 3304-05FFV 6 75 65 2"1/2 260 171 3304-06FFE 3304-06FFV 6 90 80 3" 260 171 3304-07FFE 3304-07FFV 6 8200 110 100 4" 300 213 3304-08FFE 3304-08FFV 5 140 125 5" 350 238 3304-09FFE 3304-09FFV 5 160 150 (1> 6" 400 268 3304-10FFE 3304-10FFV 4 Encombrement DIN en conformit avec EN558-1/48. Face to face dimensions compliant with EN558-1/48. Egalement disponible en norme ANSI. Also available in ANSI. (1) Compatible DIN/ANSI. Consistent with DIN/ANSI. Fiche technique Data sheet
