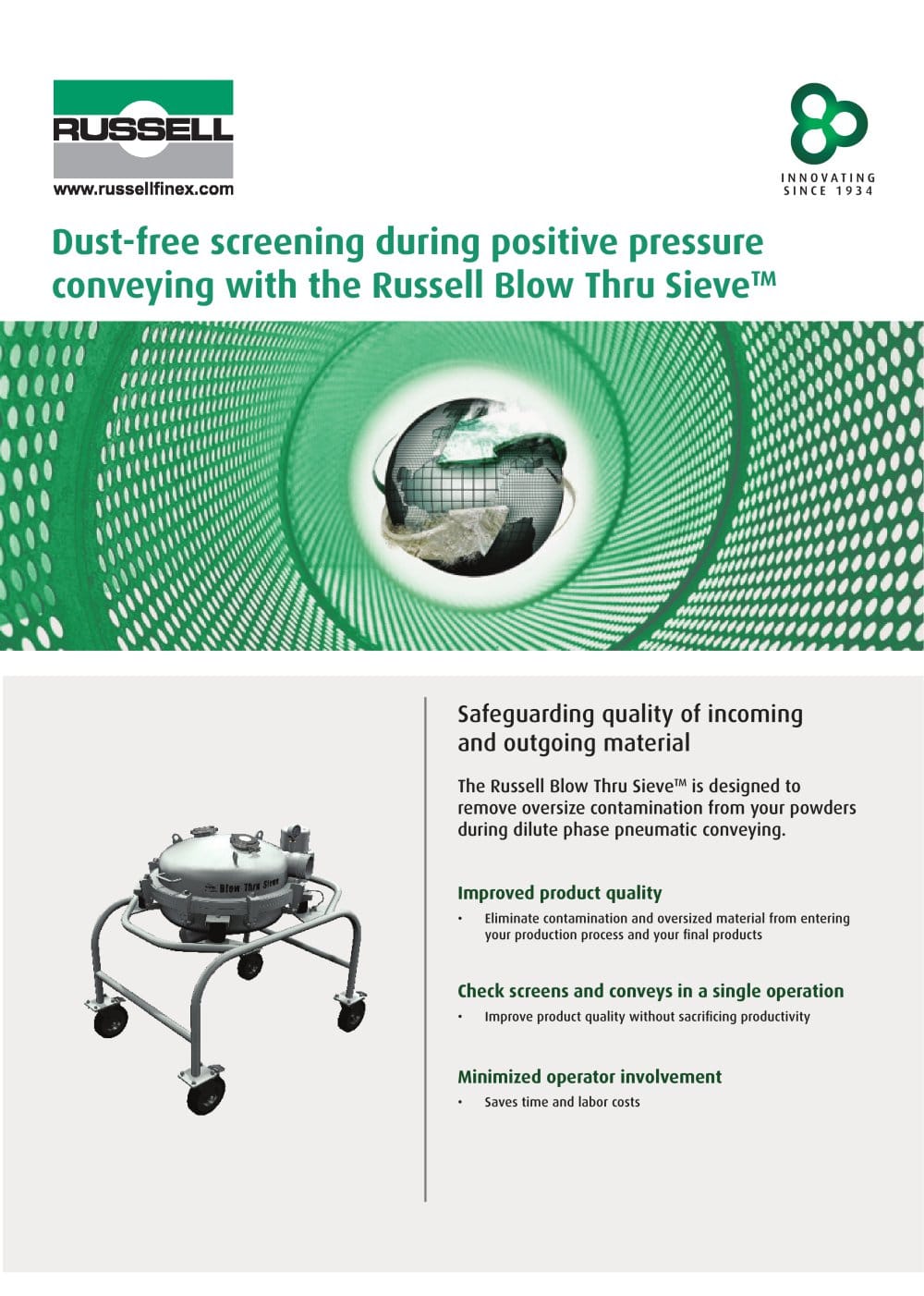

Dust-free screening during positive pressure conveying Benefits • Safeguards the quality of your incoming or outgoing materials and your final products. • Check-screens and conveys in a single operation, allowing you to improve product quality without sacrificing productivity. • Minimal operator involvement and maintenance saves you time and labor costs. • The operating noise of the unit is extremely low, typically less than 65dB(A). ATEX APPROVED Certified for use in zones 20, 21, 22, 0, 1 and 2 Specification The Blow Thru Sieve™ has been designed and built to meet the European Pressure Equipment Directive 97/23/EC. It has been developed to check-screen powder during dilute phase pneumatic conveying. • Certified to operate up to a maximum pressure of 2 bar gauge in Europe. • Suitable for use up to 1 bar/14.5 psi (gauge) in North America. • Tangential inlet and outlet enables throughputs of up to 25 tonnes per hour (55,000 lbs/hr). • Simple operation and design allows access to the mesh screen using a single tool. • Fully mobile, allowing total installation flexibility. Use one unit at multiple locations in your plant. • Various connections available to provide complete compatibility with your existing process and equipment. The Blow Thru Sieve™ is designed to remove oversize contamination from your powders during dilute phase pneumatic conveying Innovating SINCE 1934 75years RUSSELL Embracing the future Celebrating our success
