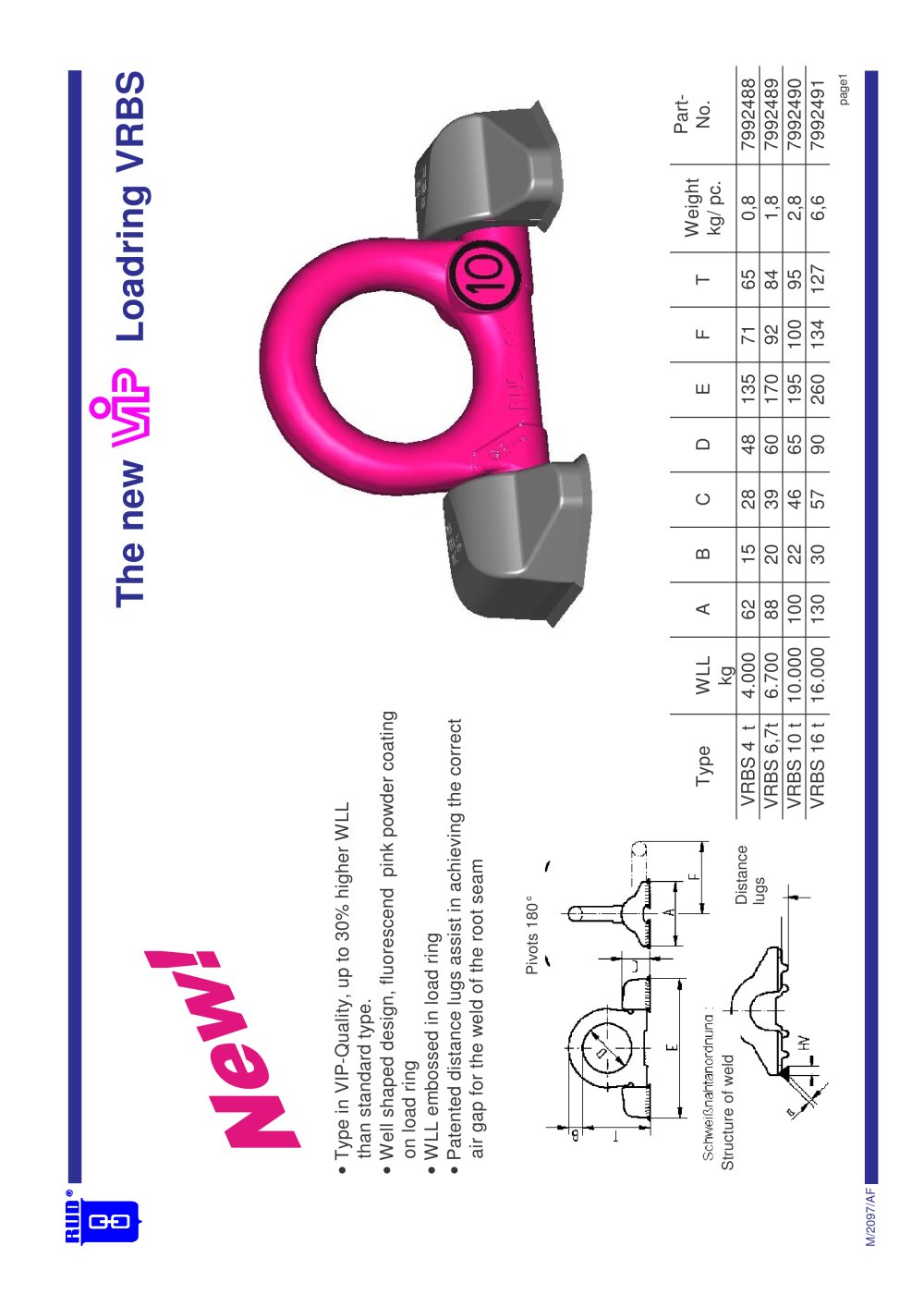

page1 The new Loadring VRBS Type WLL kg A B C D E F T Weight kg/ pc. Part- No. VRBS 4 t 4.000 62 15 28 48 135 71 65 0,8 7992488 VRBS 6,7t 6.700 88 20 39 60 170 92 84 1,8 7992489 VRBS 10 t 10.000 100 22 46 65 195 100 95 2,8 7992490 VRBS 16 t 16.000 130 30 57 90 260 134 127 6,6 7992491 ° Distance lugs Pivots 180 Type in VIP-Quality, up to 30% higher WLL than standard type. Well shaped design, fluorescend pink powder coating on load ring WLL embossed in load ring Patented distance lugs assist in achieving the correct air gap for the weld of the root seam Structure of weld • • • • eite 1 von 1 M/2097/AF
