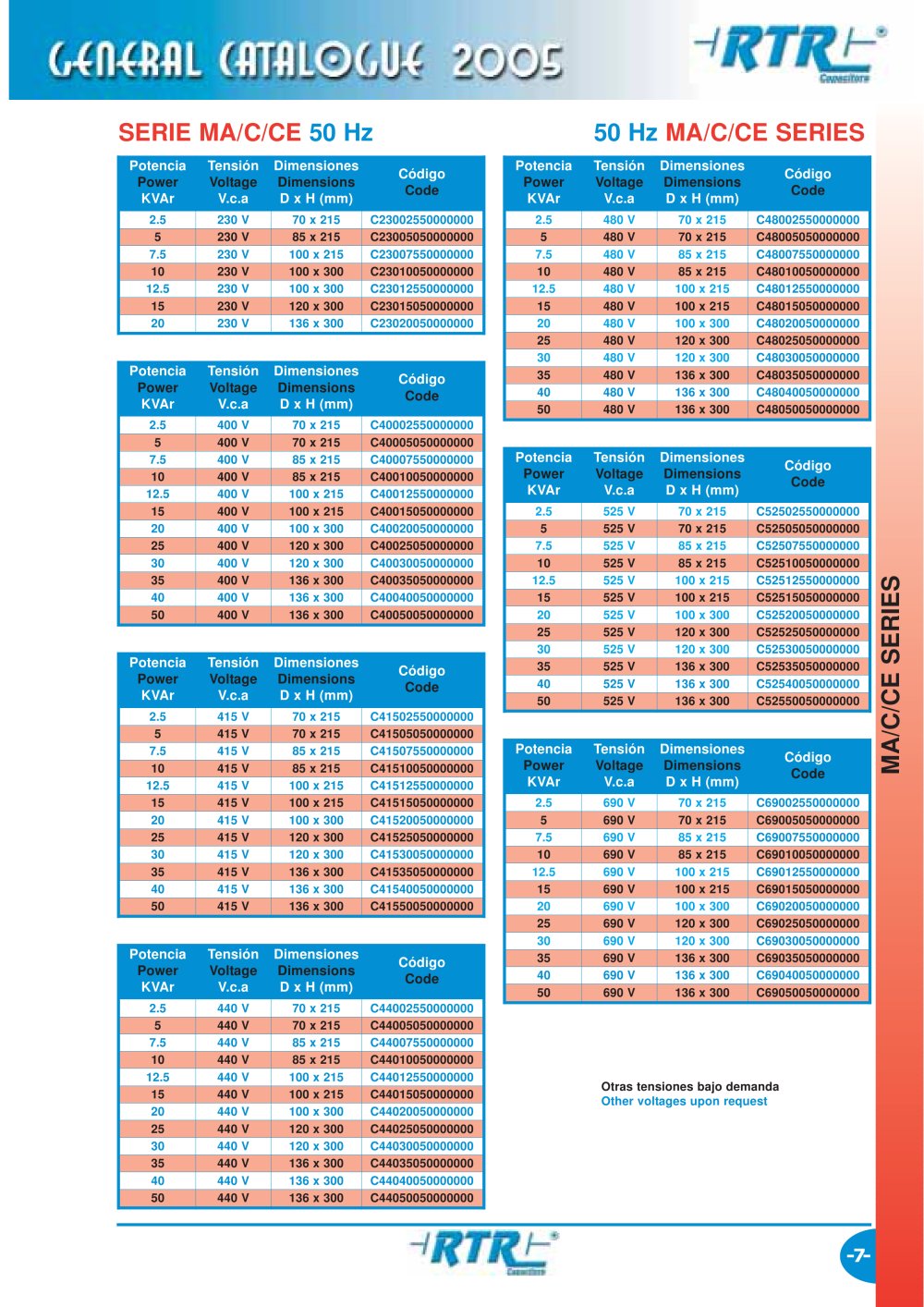

SERIE MA/C/CE50 Hz50 HzMA/C/CE SERIES

PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode

2.5 230 V 70 x 215 C23002550000000 2.5 480 V 70 x 215 C48002550000000 5 230 V 85 x 215 C23005050000000 5 480 V 70 x 215 C48005050000000 7.5 230 V 100 x 215 C23007550000000 7.5 480 V 85 x 215 C48007550000000 10 230 V 100 x 300 C23010050000000 10 480 V 85 x 215 C48010050000000 12.5 230 V 100 x 300 C23012550000000 12.5 480 V 100 x 215 C48012550000000 15 230 V 120 x 300 C23015050000000 15 480 V 100 x 215 C48015050000000 20 230 V 136 x 300 C23020050000000 20 480 V 100 x 300 C48020050000000 25 480 V 120 x 300 C48025050000000 30 480 V 120 x 300 C48030050000000

PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode

35 480 V 136 x 300 C48035050000000 40 480 V 136 x 300 C48040050000000 50 480 V 136 x 300 C48050050000000 2.5 400 V 70 x 215 C40002550000000 5 400 V 70 x 215 C40005050000000 7.5 400 V 85 x 215 C40007550000000

PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode

10 400 V 85 x 215 C40010050000000 12.5 400 V 100 x 215 C40012550000000 15 400 V 100 x 215 C40015050000000 2.5 525 V 70 x 215 C52502550000000 20 400 V 100 x 300 C40020050000000 5 525 V 70 x 215 C52505050000000 25 400 V 120 x 300 C40025050000000 7.5 525 V 85 x 215 C52507550000000 30 400 V 120 x 300 C40030050000000 10 525 V 85 x 215 C52510050000000 35 400 V 136 x 300 C40035050000000 12.5 525 V 100 x 215 C52512550000000 40 400 V 136 x 300 C40040050000000 15 525 V 100 x 215 C52515050000000 50 400 V 136 x 300 C40050050000000 20 525 V 100 x 300 C52520050000000 25 525 V 120 x 300 C52525050000000 30 525 V 120 x 300 C52530050000000

PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode

35 525 V 136 x 300 C52535050000000 40 525 V 136 x 300 C52540050000000 50 525 V 136 x 300 C52550050000000 2.5 415 V 70 x 215 C41502550000000 5 415 V 70 x 215 C41505050000000 7.5 415 V 85 x 215 C41507550000000

PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode

10 415 V 85 x 215 C41510050000000
MA/C/CE SERIES 12.5 415 V 100 x 215 C41512550000000 15 415 V 100 x 215 C41515050000000 2.5 690 V 70 x 215 C69002550000000 20 415 V 100 x 300 C41520050000000 5 690 V 70 x 215 C69005050000000 25 415 V 120 x 300 C41525050000000 7.5 690 V 85 x 215 C69007550000000 30 415 V 120 x 300 C41530050000000 10 690 V 85 x 215 C69010050000000 35 415 V 136 x 300 C41535050000000 12.5 690 V 100 x 215 C69012550000000 40 415 V 136 x 300 C41540050000000 15 690 V 100 x 215 C69015050000000 50 415 V 136 x 300 C41550050000000 20 690 V 100 x 300 C69020050000000 25 690 V 120 x 300 C69025050000000 30 690 V 120 x 300 C69030050000000

PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsD x H (mm) CódigoCode

35 690 V 136 x 300 C69035050000000 40 690 V 136 x 300 C69040050000000 50 690 V 136 x 300 C69050050000000 2.5 440 V 70 x 215 C44002550000000 5 440 V 70 x 215 C44005050000000 7.5 440 V 85 x 215 C44007550000000 10 440 V 85 x 215 C44010050000000 12.5 440 V 100 x 215 C44012550000000 15 440 V 100 x 215 C44015050000000 Otras tensiones bajo demanda Other voltages upon request 20 440 V 100 x 300 C44020050000000 25 440 V 120 x 300 C44025050000000 30 440 V 120 x 300 C44030050000000 35 440 V 136 x 300 C44035050000000 40 440 V 136 x 300 C44040050000000 50 440 V 136 x 300 C44050050000000
