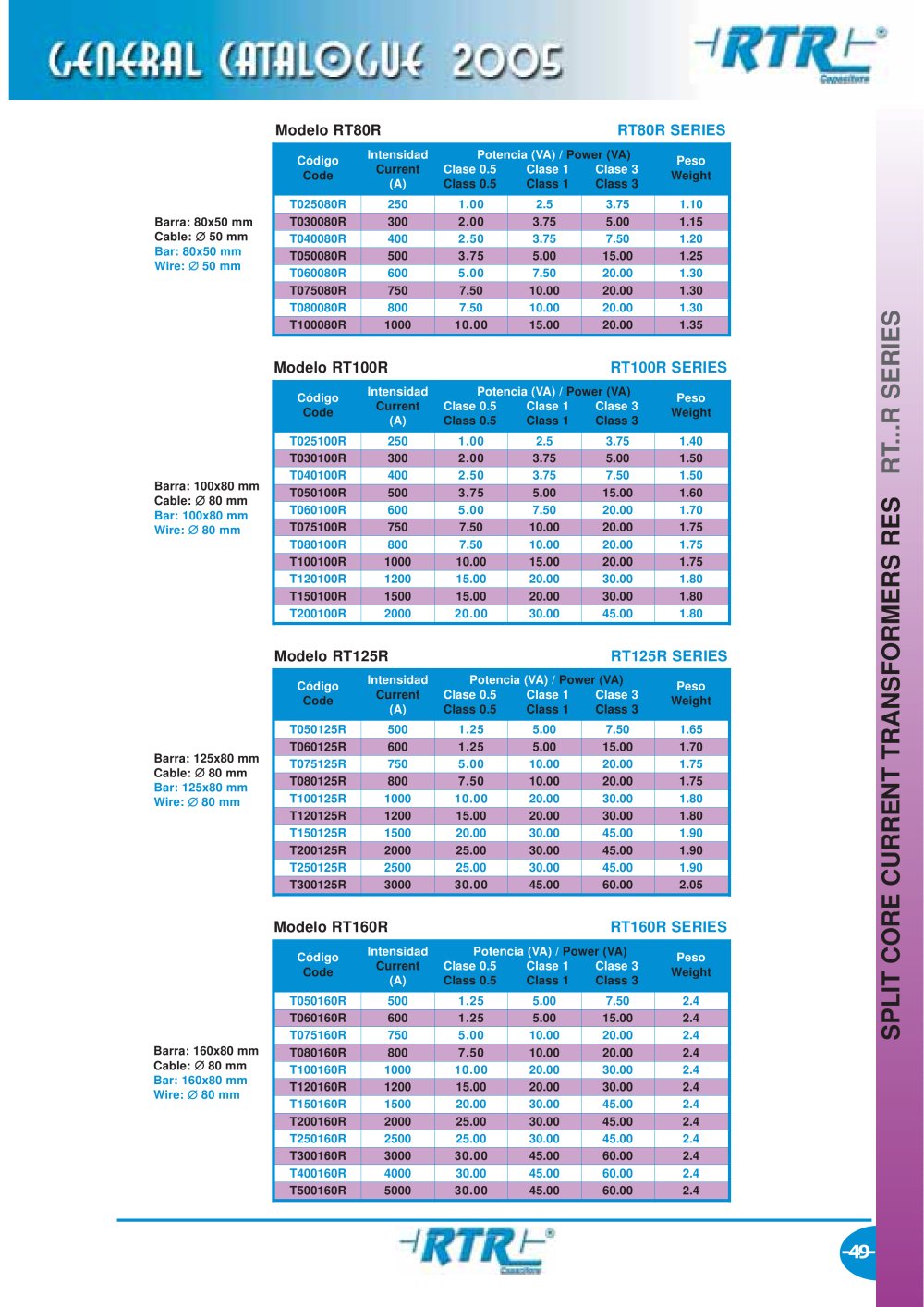

Modelo RT80RRT80R SERIES

C digoCode IntensidadCurrent(A) Potencia (VA) /Power (VA)Clase 0.5 Clase 1 Clase 3 Class 0.5 Class 1 Class 3 PesoWeight T025080R 250 1.00 2.5 3.75 1.10 Barra: 80x50 mm Cable: T030080R 300 2.00 3.75 5.00 1.15 ∅ 50 mmBar: 80x50 mmWire: T040080R 400 2.50 3.75 7.50 1.20 T050080R 500 3.75 5.00 15.00 1.25 ∅ 50 mm T060080R 600 5.00 7.50 20.00 1.30 T075080R 750 7.50 10.00 20.00 1.30 T080080R 800 7.50 10.00 20.00 1.30 T100080R 1000 10.00 15.00 20.00 1.35

Modelo RT100RRT100R SERIES

C digoCode IntensidadCurrent(A) Potencia (VA) /Power (VA)Clase 0.5 Clase 1 Clase 3 Class 0.5 Class 1 Class 3 PesoWeight T025100R 250 1.00 2.5 3.75 1.40 T030100R 300 2.00 3.75 5.00 1.50 T040100R 400 2.50 3.75 7.50 1.50 Barra: 100x80 mm Cable: ∅ 80 mmBar: 100x80 mmWire: T050100R 500 3.75 5.00 15.00 1.60 T060100R 600 5.00 7.50 20.00 1.70 ∅ 80 mm T075100R 750 7.50 10.00 20.00 1.75 T080100R 800 7.50 10.00 20.00 1.75 T100100R 1000 10.00 15.00 20.00 1.75 T120100R 1200 15.00 20.00 30.00 1.80 T150100R 1500 15.00 20.00 30.00 1.80 T200100R 2000 20.00 30.00 45.00 1.80

Modelo RT125RRT125R SERIES

C digoCode IntensidadCurrent(A) Potencia (VA) /Power (VA)Clase 0.5 Clase 1 Clase 3 Class 0.5 Class 1 Class 3 PesoWeight T050125R 500 1.25 5.00 7.50 1.65 T060125R 600 1.25 5.00 15.00 1.70 Barra: 125x80 mm Cable: ∅ 80 mmBar: 125x80 mmWire: T075125R 750 5.00 10.00 20.00 1.75 T080125R 800 7.50 10.00 20.00 1.75 ∅ 80 mm T100125R 1000 10.00 20.00 30.00 1.80 T120125R 1200 15.00 20.00 30.00 1.80 T150125R 1500 20.00 30.00 45.00 1.90 T200125R 2000 25.00 30.00 45.00 1.90 T250125R 2500 25.00 30.00 45.00 1.90 T300125R 3000 30.00 45.00 60.00 2.05

Modelo RT160RRT160R SERIES

C digoCode IntensidadCurrent(A) Potencia (VA) /Power (VA)Clase 0.5 Clase 1 Clase 3 Class 0.5 Class 1 Class 3 PesoWeight T050160R 500 1.25 5.00 7.50 2.4 T060160R 600 1.25 5.00 15.00 2.4 T075160R 750 5.00 10.00 20.00 2.4
SPLIT CORE CURRENT TRANSFORMERS RES RT...R SERIES Barra: 160x80 mmCable: T080160R 800 7.50 10.00 20.00 2.4 ∅ 80 mmBar: 160x80 mmWire: T100160R 1000 10.00 20.00 30.00 2.4 ∅ 80 mm T120160R 1200 15.00 20.00 30.00 2.4 T150160R 1500 20.00 30.00 45.00 2.4 T200160R 2000 25.00 30.00 45.00 2.4 T250160R 2500 25.00 30.00 45.00 2.4 T300160R 3000 30.00 45.00 60.00 2.4 T400160R 4000 30.00 45.00 60.00 2.4 T500160R 5000 30.00 45.00 60.00 2.4

Power Factor Correction - 19823 -49-
