STORAGE The standard RAM provided allows to store to 1360 events. Data retrieval can be done using the standard JBUS protocol, orby means of a SW driver which generates the files as text format file, or as dbase format file. AdBase or spreadsheet program can be afterward used for analyzing the data.APC based application software can be supplied that allows alsoto configurate the equipment. Its requirements are WINDOWS 95 or NT. TECHNICALCHARACTERISTICS

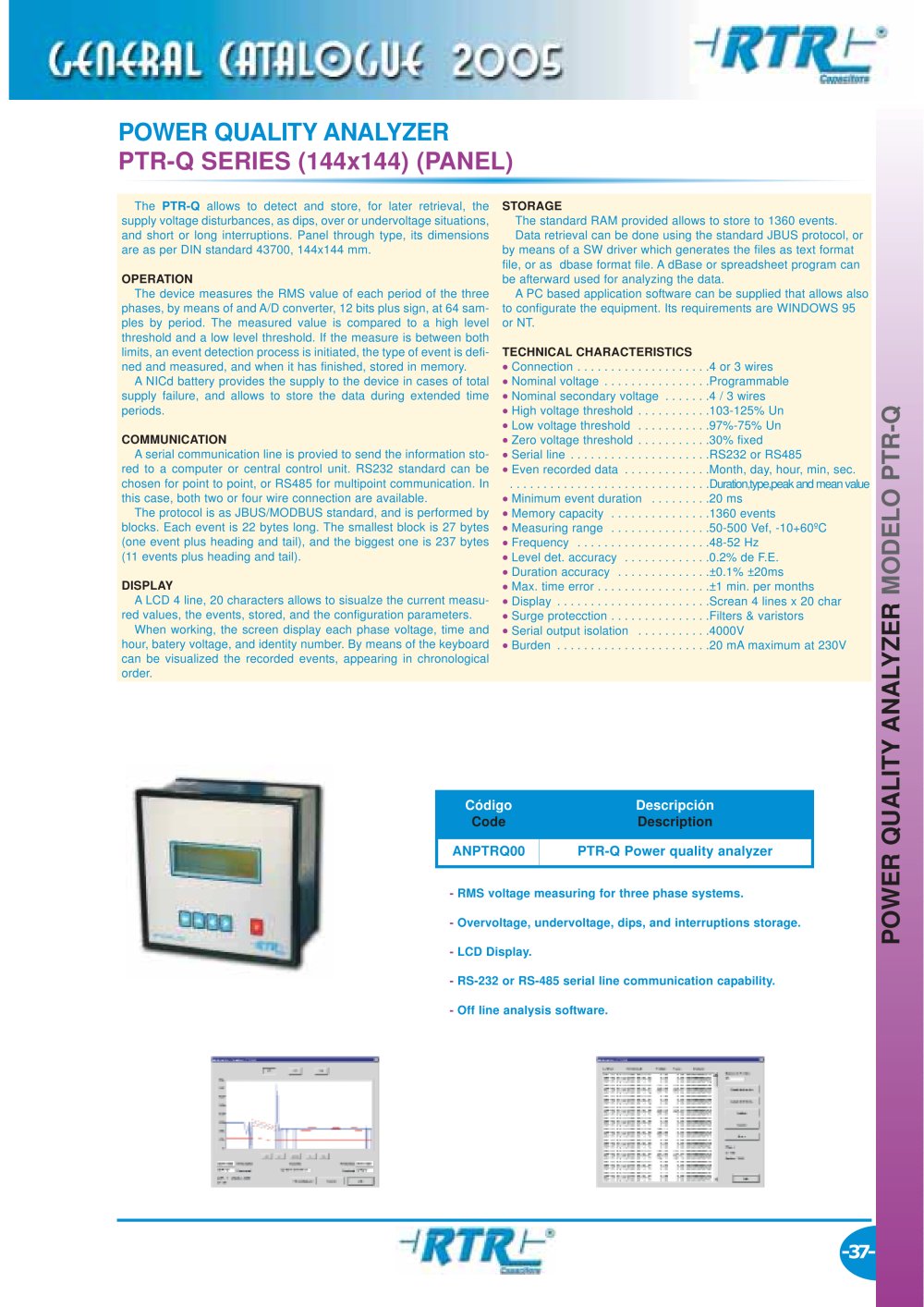

Power Factor Correction - 19823 POWER QUALITYANALYZERPTR-Q SERIES (144x144) (PANEL)

The PTR-Q allows to detect and store, for later retrieval, thesupply voltage disturbances, as dips, over or undervoltage situations, and short or long interruptions. Panel through type, its dimensions are as per DIN standard 43700, 144x144 mm. OPERATION COMMUNICATION The device measures the RMS value of each period of the threephases, by means of and A/D converter, 12 bits plus sign, at 64 sam- ples by period. The measured value is compared to a high level threshold and a low level threshold. If the measure is between both limits, an event detection process is initiated, the type of event is defi- ned and measured, and when it has finished, stored in memory.ANICd battery provides the supply to the device in cases of totalsupply failure, and allows to store the data during extended time periods. Aserial communication line is provied to send the information sto-red to a computer or central control unit. RS232 standard can be chosen for point to point, or RS485 for multipoint communication. In this case, both two or four wire connection are available.The protocol is as JBUS/MODBUS standard, and is performed byblocks. Each event is 22 bytes long. The smallest block is 27 bytes (one event plus heading and tail), and the biggest one is 237 bytes (11 events plus heading and tail). DISPLAY ALCD 4 line, 20 characters allows to sisualze the current measu-red values, the events, stored, and the configuration parameters.When working, the screen display each phase voltage, time andhour, batery voltage, and identity number. By means of the keyboard can be visualized the recorded events, appearing in chronological order. • Connection . . . . . . . . . . . . . . . . . . . .4 or 3 wires • Nominal voltage . . . . . . . . . . . . . . . .Programmable • Nominal secondary voltage . . . . . . .4 / 3 wires • High voltage threshold . . . . . . . . . . .103-125% Un • Low voltage threshold . . . . . . . . . . .97%-75% Un • Zero voltage threshold . . . . . . . . . . .30% fixed • Serial line . . . . . . . . . . . . . . . . . . . . .RS232 or RS485 • Even recorded data . . . . . . . . . . . . .Month, day, hour, min, sec. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Duration,type,peak and mean value • Minimum event duration . . . . . . . . .20 ms • Memory capacity . . . . . . . . . . . . . . .1360 events • Measuring range . . . . . . . . . . . . . . .50-500 Vef, -10+60”C • Frequency . . . . . . . . . . . . . . . . . . . .48-52 Hz • Level det. accuracy . . . . . . . . . . . . .0.2% de F.E. • Duration accuracy . . . . . . . . . . . . . .–0.1% –20ms • Max. time error . . . . . . . . . . . . . . . . .–1 min. per months • Display . . . . . . . . . . . . . . . . . . . . . . .Screan 4 lines x 20 char • Surge protecction . . . . . . . . . . . . . . .Filters & varistors • Serial output isolation . . . . . . . . . . .4000V • Burden . . . . . . . . . . . . . . . . . . . . . . .20 mAmaximum at 230V

CódigoCode DescripciónDescription ANPTRQ00 PTR-Q Power quality analyzer

-RMS voltage measuring for three phase systems.-Overvoltage, undervoltage, dips, and interruptions storage.-LCD Display.-RS-232 or RS-485 serial line communication capability.-Off line analysis software.
POWER QUALITYANALYZER MODELO PTR-Q

-37-
