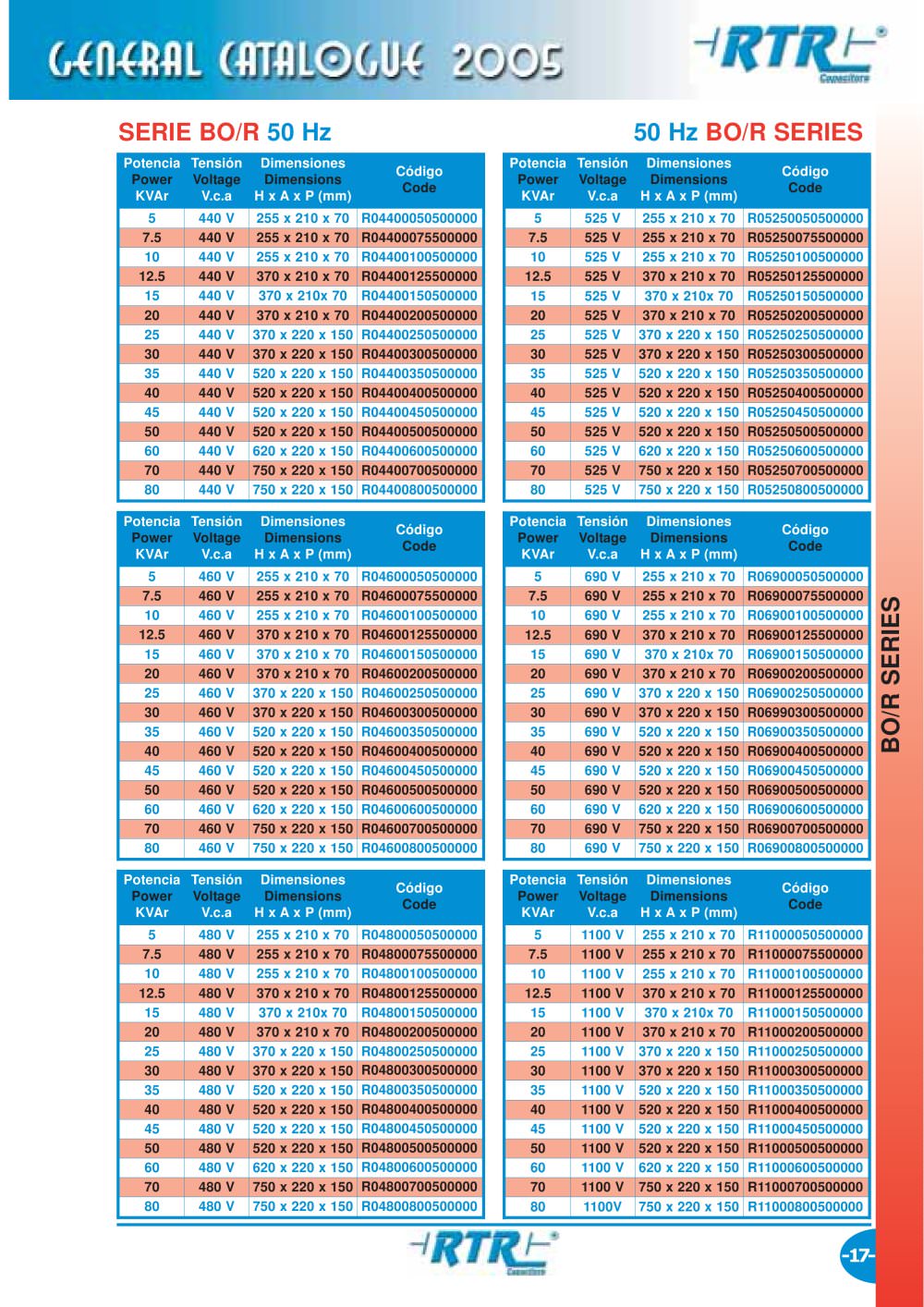

SERIE BO/R50 Hz50 HzBO/R SERIES
PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsH x Ax P(mm) CódigoCode PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsH x Ax P(mm) CódigoCode 5 440 V 255 x 210 x 70 R04400050500000 5 525 V 255 x 210 x 70 R05250050500000 7.5 440 V 255 x 210 x 70 R04400075500000 7.5 525 V 255 x 210 x 70 R05250075500000 10 440 V 255 x 210 x 70 R04400100500000 10 525 V 255 x 210 x 70 R05250100500000 12.5 440 V 370 x 210 x 70 R04400125500000 12.5 525 V 370 x 210 x 70 R05250125500000 15 440 V 370 x 210x 70 R04400150500000 15 525 V 370 x 210x 70 R05250150500000 20 440 V 370 x 210 x 70 R04400200500000 20 525 V 370 x 210 x 70 R05250200500000 25 440 V 370 x 220 x 150 R04400250500000 25 525 V 370 x 220 x 150 R05250250500000 30 440 V 370 x 220 x 150 R04400300500000 30 525 V 370 x 220 x 150 R05250300500000 35 440 V 520 x 220 x 150 R04400350500000 35 525 V 520 x 220 x 150 R05250350500000 40 440 V 520 x 220 x 150 R04400400500000 40 525 V 520 x 220 x 150 R05250400500000 45 440 V 520 x 220 x 150 R04400450500000 45 525 V 520 x 220 x 150 R05250450500000 50 440 V 520 x 220 x 150 R04400500500000 50 525 V 520 x 220 x 150 R05250500500000 60 440 V 620 x 220 x 150 R04400600500000 60 525 V 620 x 220 x 150 R05250600500000 70 440 V 750 x 220 x 150 R04400700500000 70 525 V 750 x 220 x 150 R05250700500000 80 440 V 750 x 220 x 150 R04400800500000 80 525 V 750 x 220 x 150 R05250800500000 PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsH x Ax P(mm) CódigoCode PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsH x Ax P(mm) CódigoCode 5 460 V 255 x 210 x 70 R04600050500000 5 690 V 255 x 210 x 70 R06900050500000 7.5 460 V 255 x 210 x 70 R04600075500000 7.5 690 V 255 x 210 x 70 R06900075500000 10 460 V 255 x 210 x 70 R04600100500000 10 690 V 255 x 210 x 70 R06900100500000 12.5 460 V 370 x 210 x 70 R04600125500000 12.5 690 V 370 x 210 x 70 R06900125500000 15 460 V 370 x 210 x 70 R04600150500000 15 690 V 370 x 210x 70 R06900150500000 20 460 V 370 x 210 x 70 R04600200500000 20 690 V 370 x 210 x 70 R06900200500000 25 460 V 370 x 220 x 150 R04600250500000 25 690 V 370 x 220 x 150 R06900250500000 30 460 V 370 x 220 x 150 R04600300500000 30 690 V 370 x 220 x 150 R06990300500000 35 460 V 520 x 220 x 150 R04600350500000 35 690 V 520 x 220 x 150 R06900350500000 40 460 V 520 x 220 x 150 R04600400500000 40 690 V 520 x 220 x 150 R06900400500000BO/R SERIES 45 460 V 520 x 220 x 150 R04600450500000 45 690 V 520 x 220 x 150 R06900450500000 50 460 V 520 x 220 x 150 R04600500500000 50 690 V 520 x 220 x 150 R06900500500000 60 460 V 620 x 220 x 150 R04600600500000 60 690 V 620 x 220 x 150 R06900600500000 70 460 V 750 x 220 x 150 R04600700500000 70 690 V 750 x 220 x 150 R06900700500000 80 460 V 750 x 220 x 150 R04600800500000 80 690 V 750 x 220 x 150 R06900800500000 PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsH x Ax P(mm) CódigoCode PotenciaPowerKVAr TensiónVoltageV.c.a DimensionesDimensionsH x Ax P(mm) CódigoCode 5 480 V 255 x 210 x 70 R04800050500000 5 1100 V 255 x 210 x 70 R11000050500000 7.5 480 V 255 x 210 x 70 R04800075500000 7.5 1100 V 255 x 210 x 70 R11000075500000 10 480 V 255 x 210 x 70 R04800100500000 10 1100 V 255 x 210 x 70 R11000100500000 12.5 480 V 370 x 210 x 70 R04800125500000 12.5 1100 V 370 x 210 x 70 R11000125500000 15 480 V 370 x 210x 70 R04800150500000 15 1100 V 370 x 210x 70 R11000150500000 20 480 V 370 x 210 x 70 R04800200500000 20 1100 V 370 x 210 x 70 R11000200500000 25 480 V 370 x 220 x 150 R04800250500000 25 1100 V 370 x 220 x 150 R11000250500000 30 480 V 370 x 220 x 150 R04800300500000 30 1100 V 370 x 220 x 150 R11000300500000 35 480 V 520 x 220 x 150 R04800350500000 35 1100 V 520 x 220 x 150 R11000350500000 40 480 V 520 x 220 x 150 R04800400500000 40 1100 V 520 x 220 x 150 R11000400500000 45 480 V 520 x 220 x 150 R04800450500000 45 1100 V 520 x 220 x 150 R11000450500000 50 480 V 520 x 220 x 150 R04800500500000 50 1100 V 520 x 220 x 150 R11000500500000 60 480 V 620 x 220 x 150 R04800600500000 60 1100 V 620 x 220 x 150 R11000600500000 70 480 V 750 x 220 x 150 R04800700500000 70 1100 V 750 x 220 x 150 R11000700500000 80 480 V 750 x 220 x 150 R04800800500000 80 1100V 750 x 220 x 150 R11000800500000
