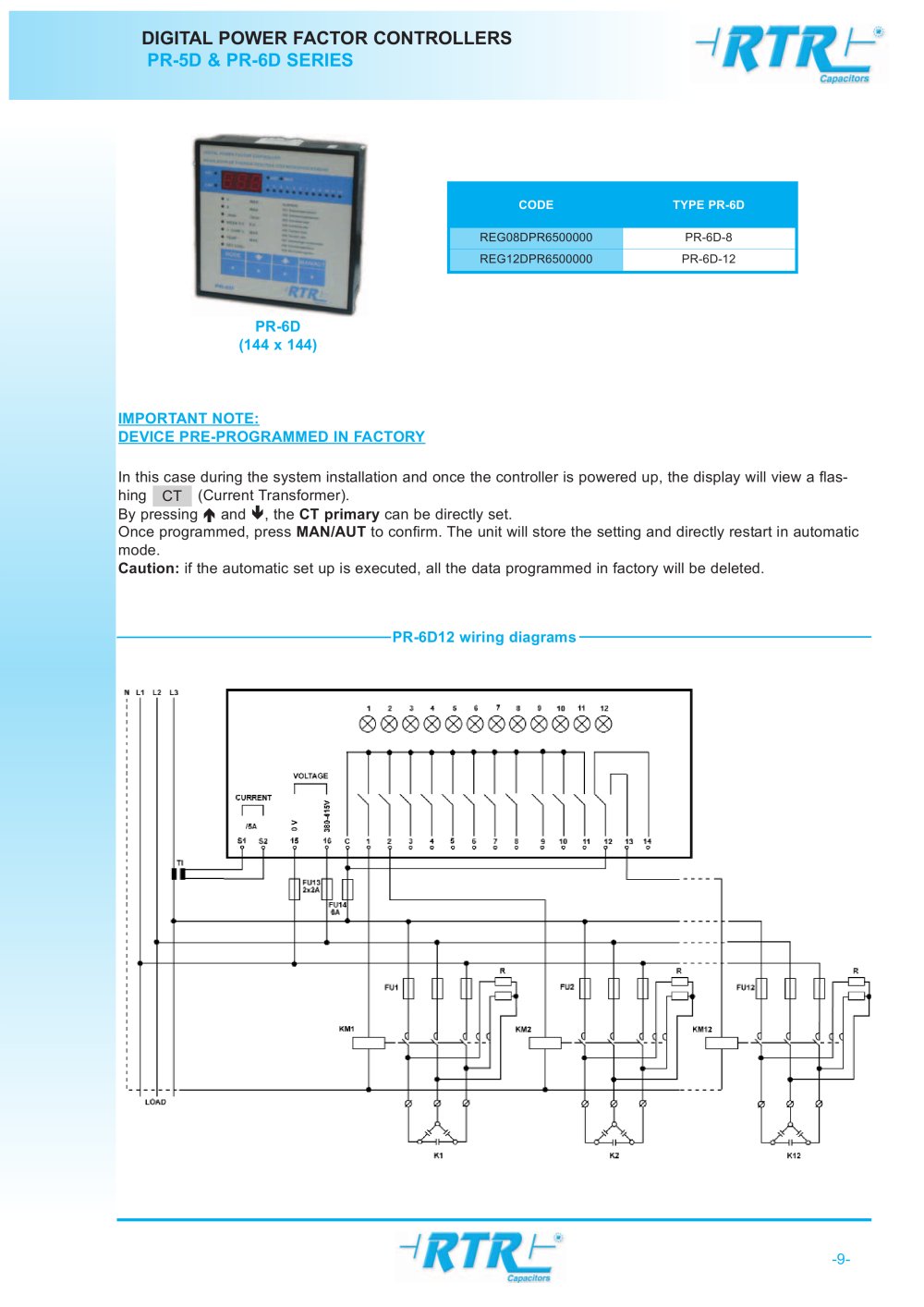

DIGITALPOWER FACTOR CONTROLLERSPR-5D & PR-6D SERIES

CODE TYPE PR-6D REG08DPR6500000 PR-6D-8 REG12DPR6500000 PR-6D-12 PR-6D(144 x 144) IMPORT ANT NOTE: DEVICE PRE-PROGRAMMED IN F ACT OR Y In this case during the system installation and once the controller is powered up, the display will view a flas- hing (Current Transformer). By pressing CT and , the CT primary can be directly set.Once programmed, press Caution: if the automatic set up is executed, all the data programmed in factory will be deleted. MAN/AUT to confirm. The unit will store the setting and directly restart in automaticmode. PR-6D12 wiring diagrams -9-
