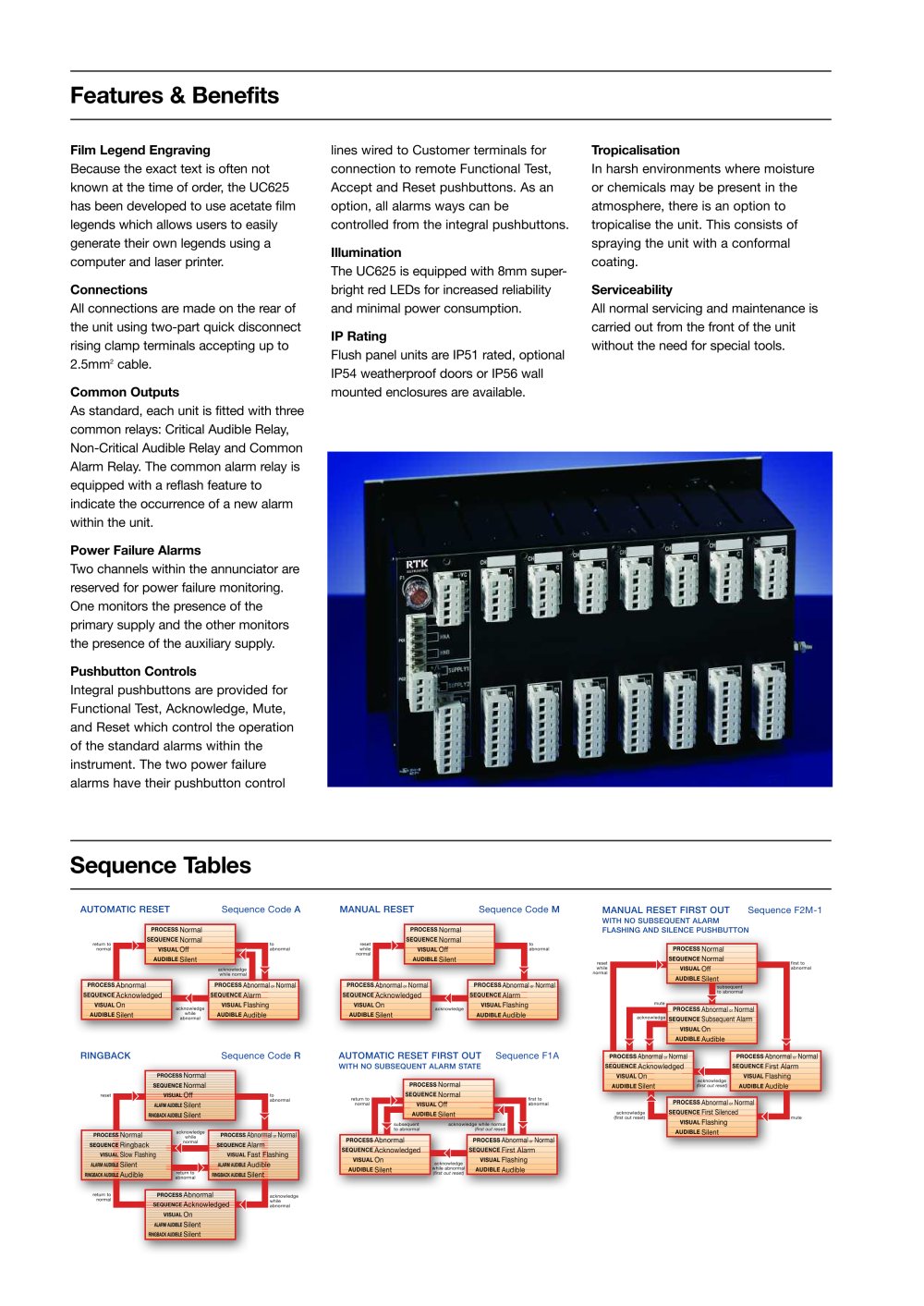

Because the exact text is often not known at the time of order, the UC625 has been developed to use acetate film legends which allows users to easily generate their own legends using a computer and laser printer.

All connections are made on the rear of the unit using two-part quick disconnect rising clamp terminals accepting up to 2.5mm² cable.

As standard, each unit is fitted with three common relays: Critical Audible Relay, Non-Critical Audible Relay and Common Alarm Relay. The common alarm relay is equipped with a reflash feature to indicate the occurrence of a new alarm within the unit.

Two channels within the annunciator are reserved for power failure monitoring. One monitors the presence of the primary supply and the other monitors the presence of the auxiliary supply.

Integral pushbuttons are provided for Functional Test, Acknowledge, Mute, and Reset which control the operation of the standard alarms within the instrument. The two power failure alarms have their pushbutton control

lines wired to Customer terminals for connection to remote Functional Test, Accept and Reset pushbuttons. As an option, all alarms ways can be controlled from the integral pushbuttons.

The UC625 is equipped with 8mm super-bright red LEDs for increased reliability and minimal power consumption.

Flush panel units are IP51 rated, optional IP54 weatherproof doors or IP56 wall mounted enclosures are available.

In harsh environments where moisture or chemicals may be present in the atmosphere, there is an option to tropicalise the unit. This consists of spraying the unit with a conformal coating.

All normal servicing and maintenance is carried out from the front of the unit without the need for special tools.

Sequence Code A

Sequence Code M

MANUAL RESET FIRST OUT Sequence F2M-

process Normal sequence Normal

visual Off audible Silent

process Normal sequence Normal

visual Off audible Silent

reset

process Normal sequence Normal

visual Off audible Silent

abnormal

while normal

abnormal

first to

abnormal

reset while

acknowledge

process Abnormal sequence Acknowledged

I visual On audible Silent

process Abnormal orNormal sequence Alarm visual Flashing audible Audible

process Abnormal or Normal sequence Acknowledged

visual On audible Silent

process Abnormal or Normal sequence Alarm visual Flashing audible Audible

to abnormal

acknowledge while abnormal

acknowledge

Sequence Code R

Sequence F1A

process Abnormal or Normal sequence Acknowledged

visual On audible Silent

process Abnormal or Normal sequence First Alarm visual Flashing audible Audible

process Normal sequence Normal

visual Off

alarm audible Silent ringback audible Silent

acknowledge

process Normal sequence Normal

—

first to

hab

process Abnormal orNormal sequence First Silenced visual Flashing audible Silent

visual Oaudible Si

"acknowledge while normal 1*

acknowledge while

process Normal sequence Ringback

visual Slow Flashing alarm audible Silent ringback audible Audible

process Abnormal orNormal sequence Alarm

visual Fast Flashing alarm audible Audible ringback audible Silent

process Abnormal sequence Acknowledged

visual On

process Abnormal orNormal sequence First Alarm visual Flashing audible Audible

return to

abnormal

process Abnormal sequence Acknowledged

visual On

alarm audible Silent ringback audible Silent

return to normal

acknowledge

while

abnormal
