SIL725 Safety Annunciator - RTK - #7

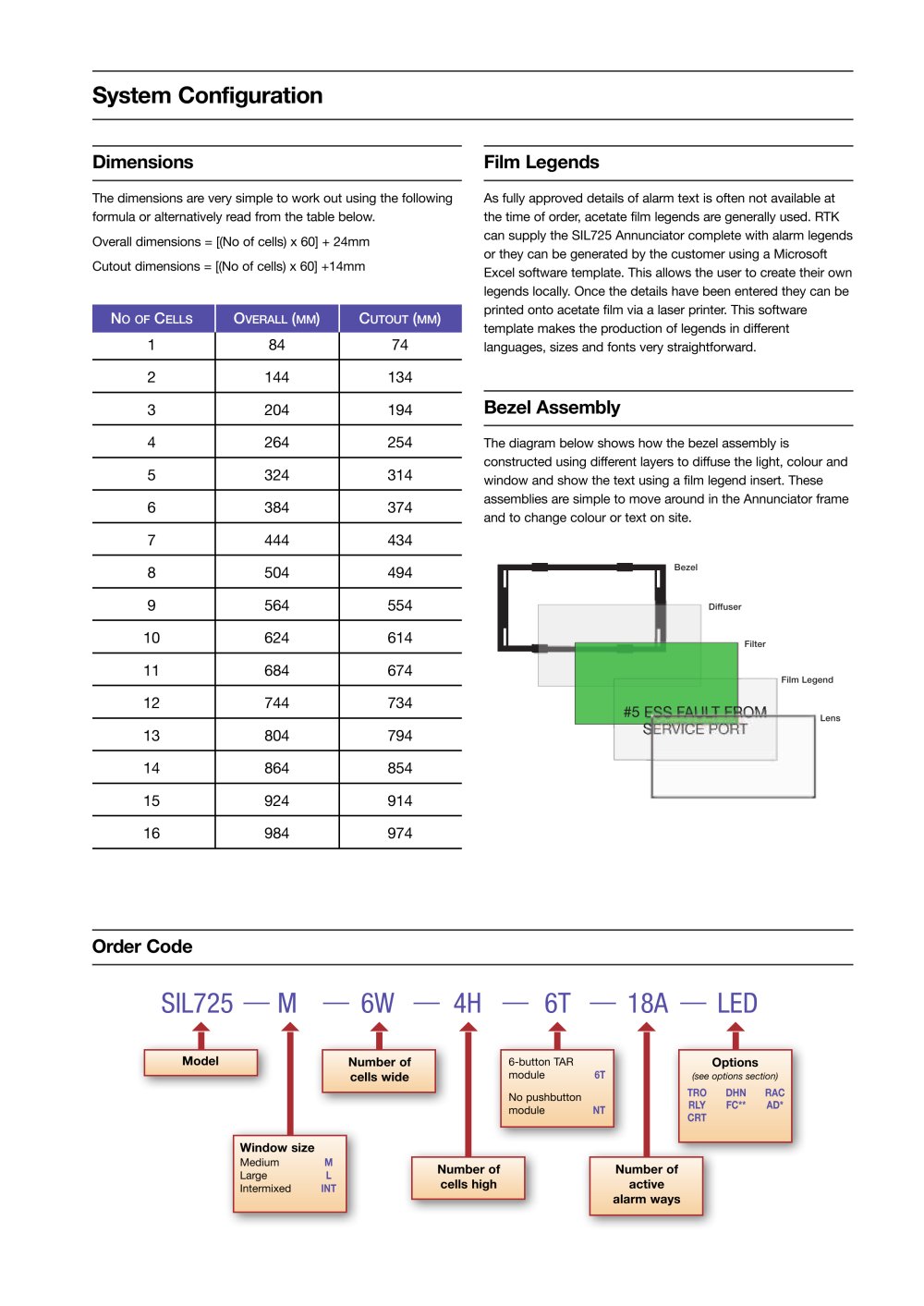

The dimensions are very simple to work out using the following formula or alternatively read from the table below.

As fully approved details of alarm text is often not available at the time of order, acetate film legends are generally used. RTK can supply the SIL725 Annunciator complete with alarm legends or they can be generated by the customer using a Microsoft Excel software template. This allows the user to create their own legends locally. Once the details have been entered they can be printed onto acetate film via a laser printer. This software template makes the production of legends in different languages, sizes and fonts very straightforward.

The diagram below shows how the bezel assembly is constructed using different layers to diffuse the light, colour and window and show the text using a film legend insert. These assemblies are simple to move around in the Annunciator frame and to change colour or text on site.

SIL725

M

6W

4H

6T m.

18A
