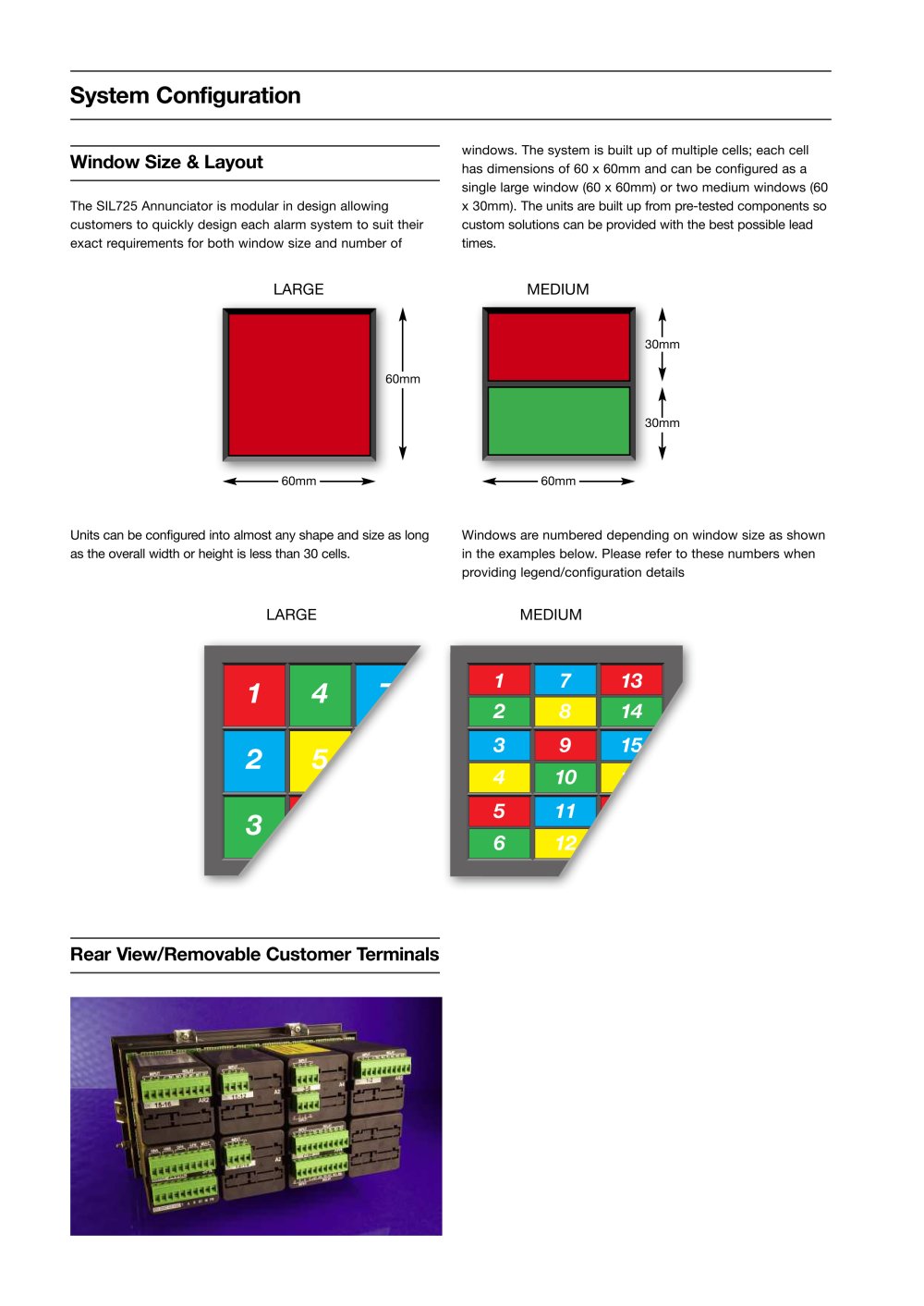

| System Configuration | |||||||||||||||||
| windows. The system is built up of multiple cells; each cell has dimensions of 60 x 60mm and can be configured as a single large window (60 x 60mm) or two medium windows (60 x 30mm). The units are built up from pre-tested components so custom solutions can be provided with the best possible lead times. | |||||||||||||||||
| Window Size & Layout | |||||||||||||||||
| The SIL725 Annunciator is modular in design allowing customers to quickly design each alarm system to suit their exact requirements for both window size and number of | |||||||||||||||||
| LARGE MEDIUM | |||||||||||||||||
| >*-60mm-► -<-60mm-*> | |||||||||||||||||
| Units can be configured into almost any shape and size as long as the overall width or height is less than 30 cells. | Windows are numbered depending on window size as shown in the examples below. Please refer to these numbers when providing legend/configuration details | ||||||||||||||||
| Rear View/Removable Customer Terminals | |||||||||||||||||
