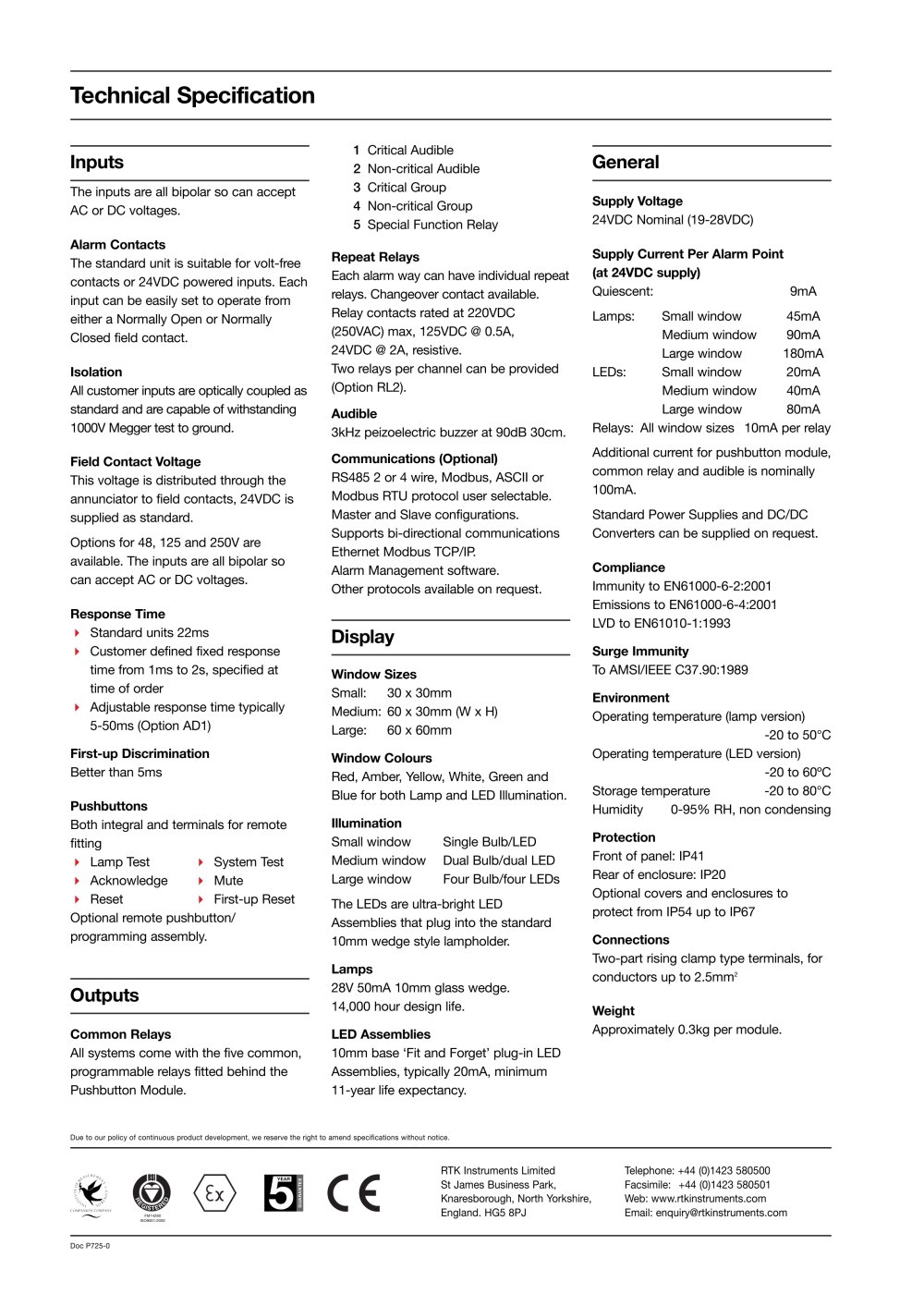

Technical Specification
1 Critical Audible 2 Non-critical Audible Audible 3 Critical Group 3kHz peizoelectric buzzer at 90dB 30cm. 4 Non-critical Group
Inputs
5 Special Function Relay
General
Communications (Optional) The inputs are all bipolar so can acceptAC or DC voltages. Repeat Relays RS485 2 or 4 wire, Modbus, ASCII or
Modbus RTU protocol user selectable.
Master and Slave configurations.
Supports bi-directional communications
Ethernet Modbus TCP/IP.
Alarm Management software.
Other protocols available on request. Supply Voltage 24VDC Nominal (19-28VDC) Isolation Each alarm way can have individual repeat
relays. Changeover contact available.
Relay contacts rated at 220VDC
(250VAC) max, 125VDC @ 0.5A, 24VDC @ 2A, resistive.
Two relays per channel can be provided
(Option RL2). Alarm Contacts All customer inputs are optically coupled as
standard and are capable of withstanding
1000V Megger test to ground. Field Contact Voltage Supply Current Per Alarm Point (at 24VDC supply) Quiescent:9mALamps:Small window45mAMedium window90mA
Large window180mALEDs:Small window20mAMedium window40mALarge window80mARelays:All window sizes 10mA per relayAdditional current for pushbutton module,common relay and audible is nominally
100mA.Standard Power Supplies and DC/DCConverters can be supplied on request. The standard unit is suitable for volt-free
contacts or 24VDC powered inputs. Each
input can be easily set to operate from
either a Normally Open or Normally
Closed field contact. This voltage is distributed through the
annunciator to field contacts, 24VDC is
supplied as standard.Options for 48, 125 and 250V areavailable. The inputs are all bipolar so
can accept AC or DC voltages. Response Time Standard units 22ms Customer defined fixed response time from 1ms to 2s, specified at time of order Adjustable response time typically 5-50ms (Option AD1) First-up Discrimination Better than 5ms Pushbuttons Compliance Both integral and terminals for remotefitting Immunity to EN61000-6-2:2001
Emissions to EN61000-6-4:2001
LVD to EN61010-1:1993 Surge Immunity ToAMSI/IEEE C37.90:1989 Lamp Test System Test Environment Acknowledge Mute Operating temperature(lamp version)-20 to 50°COperating temperature(
LED version)-20 to 60ºCStorage temperature-20 to 80°C
Humidity0-95% RH, non condensing Reset First-up ResetOptional remote pushbutton/programming assembly. Protection Connections Front of panel: IP41
Rear of enclosure: IP20
Optional covers and enclosures to
protect from IP54 up to IP67 Two-part rising clamp type terminals, for
conductors up to 2.5mm
Display
Window Sizes Small:30 x 30mm
Medium:60 x 30mm (W x H)
Large:60 x 60mm Window Colours Red, Amber, Yellow, White, Green and
Blue for both Lamp and
LED Illumination. Illumination Small windowSingle Bulb/LED
Medium windowDual Bulb/dual
LED
Large windowFour Bulb/four LEDsThe
LEDs are ultra-bright LEDAssemblies that plug into the standard10mm wedge style lampholder. Lamps 28V 50mA 10mm glass wedge.
14,000 hour design life.
LED Assemblies 10mm base ‘Fit and Forget’ plug-in
LED
Assemblies, typically 20mA, minimum
11-year life expectancy.
2
Outputs
Approximately 0.3kg per module. Weight Common Relays All systems come with the five common,
programmable relays fitted behind the
Pushbutton Module.
Due to our policy of continuous product development, we reserve the right to amend specifications without notice.
Doc P725-0
