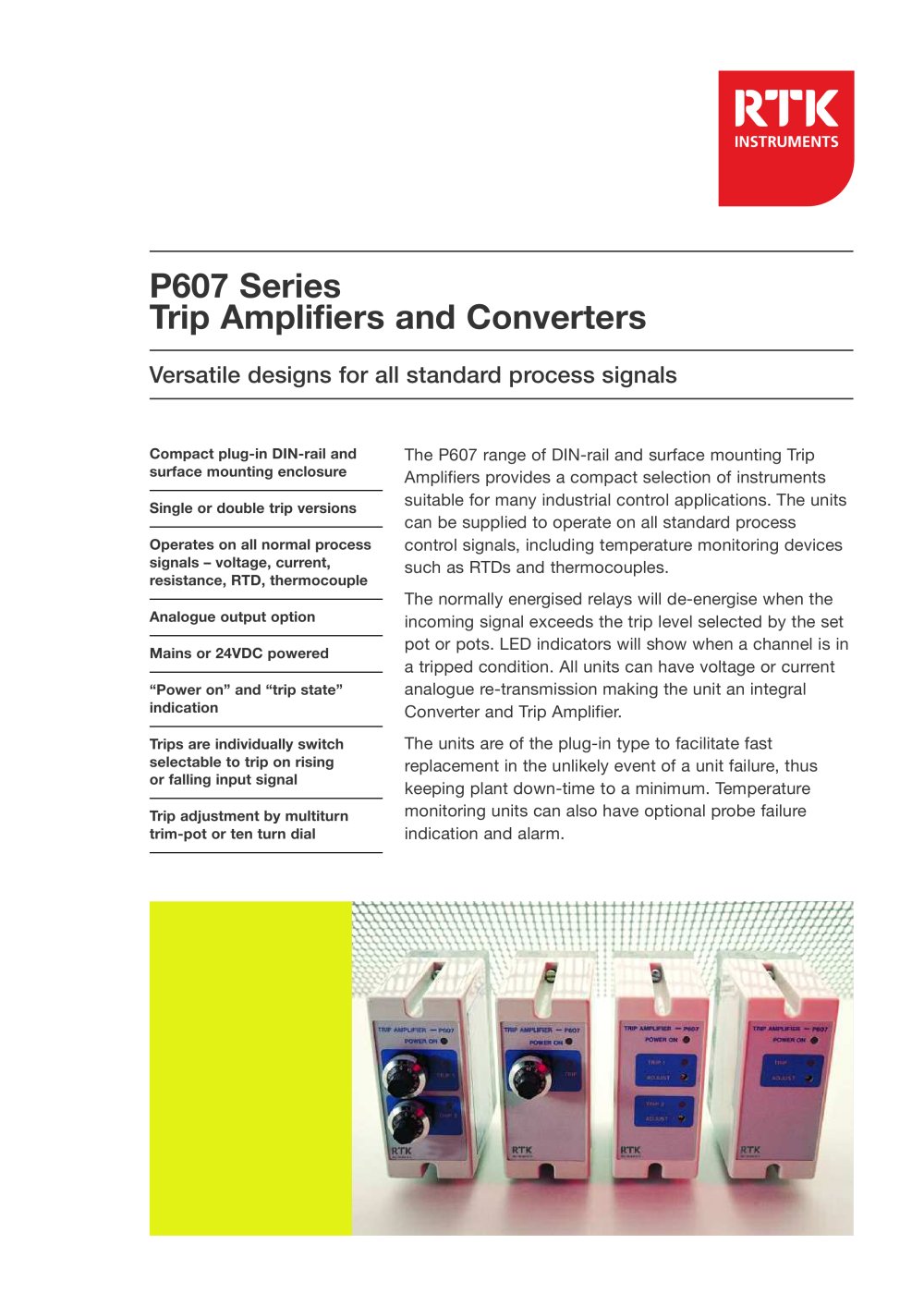

P607 SeriesTrip Amplifiers and Converters

Versatile designs for all standard process signals

Compact plug-in DIN-rail and

The P607 range of DIN-rail and surface mounting TripAmplifiers provides a compact selection of instruments suitable for many industrial control applications. The units can be supplied to operate on all standard process control signals, including temperature monitoring devices such as RTDs and thermocouples.The normally energised relays will de-energise when theincoming signal exceeds the trip level selected by the set pot or pots. LED indicators will show when a channel is in atripped condition. All units can have voltage or current analogue re-transmission making the unit an integral Converter and Trip Amplifier.The units areof the plug-in type to facilitate fastreplacement in the unlikely event of a unit failure, thus keeping plant down-time to a minimum. Temperature monitoring units can also have optional probe failure indication and alarm.

surface mounting enclosure Single or double trip versionsOperates on all normal processsignals – voltage, current, resistance, RTD, thermocouple Analogue output option Mains or 24VDC powered“Power on” and “trip state” indication Trips are individually switchselectable to trip on rising or falling input signalTrip adjustment by multiturn trim-pot or ten turn dial
