Safety Parameters Ui=45V Ii=2A Pi=1.2W (max ambient temp. = 60ºC) Pi=1.3W (max ambient temp. = 40ºC) Ci=Li = 0The device can be powered from an EEx ia IIC certified interface with output parameters lower than those shown above. Mounting Aspecial anti-vibration absorber built into the lower portion of the moulding effectively reduces vibration to the LED Lamps. The unit can be pole or direct basemounting. Configuration It is easy to change the order of the colours. Lenses simply unscrew and LED Lamps can be installed in any position. Certification ATEX certified to EN50014:1997 and EN50020:2002Group II, Category 2G, EEx ia IIC T4 (Ta –20ºC to +60ºC) Location Zones 1 or 2. Gas Group, IIC, IIB or IIA,Temp Class up to T4 Certificate No. Kema03ATEX1022X

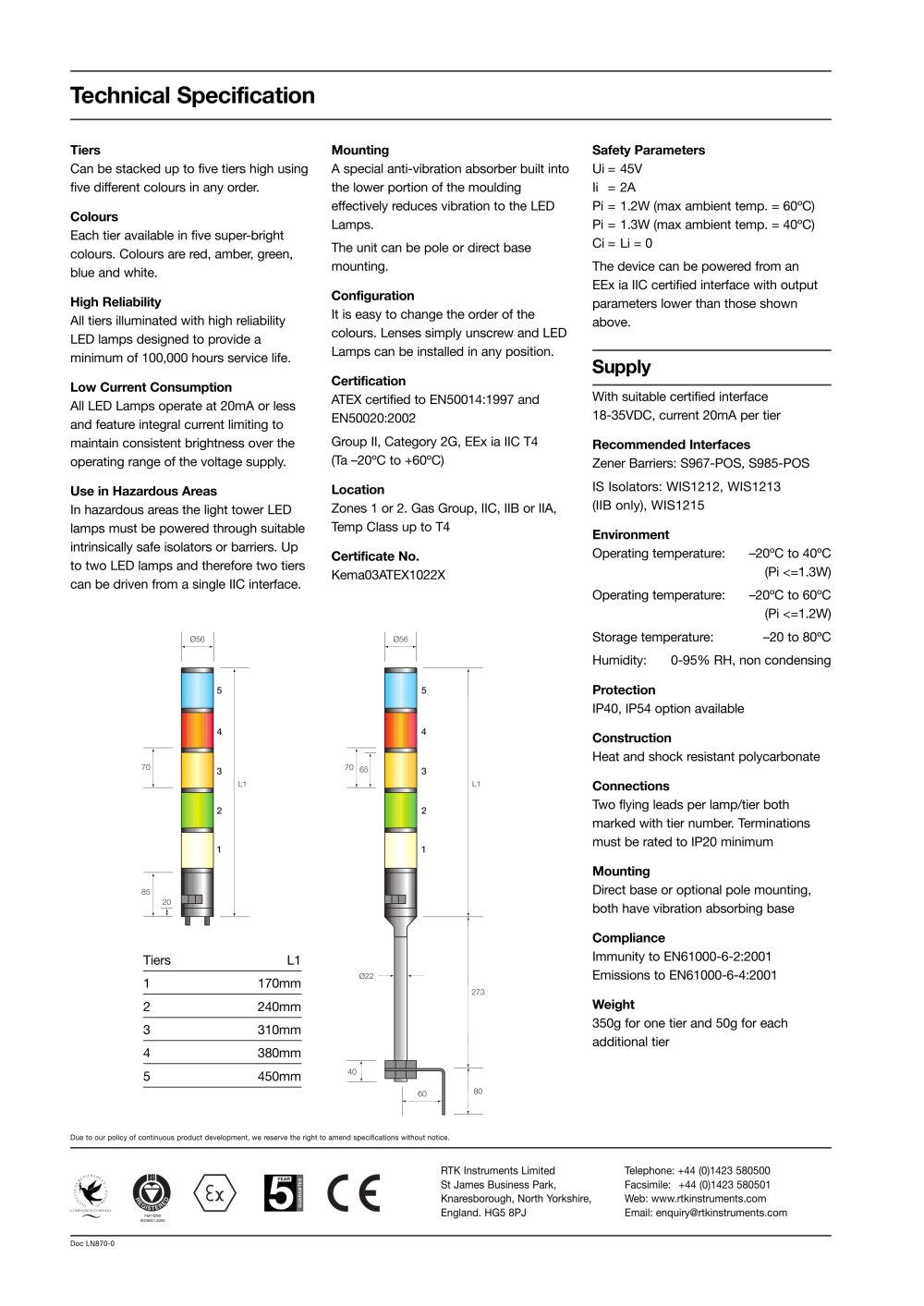

Technical Specification

Tiers Can be stacked up to five tiers high using five different colours in any order. Colours Each tier available in five super-bright colours. Colours are red, amber, green, blue and white. High Reliability Use in Hazardous Areas All tiers illuminated with high reliability LED lamps designed to provide a minimum of 100,000 hours service life. Low Current Consumption All LED Lamps operate at 20mA or less and feature integral current limiting to maintain consistent brightness over the operating range of the voltage supply. In hazardous areas the light tower LED lamps must be powered through suitable intrinsically safe isolators or barriers. Up to two LED lamps and thereforetwo tiers can be driven from a single IIC interface.

Supply

With suitable certified interface 18-35VDC, current 20mA per tier Recommended Interfaces Zener Barriers: S967-POS, S985-POSIS Isolators: WIS1212, WIS1213 (IIB only), WIS1215 Environment Operating temperature:–20ºC to 40ºC (Pi <=1.3W)Operating temperature:–20ºC to 60ºC (Pi <=1.2W)Storage temperature:–20 to 80ºC Humidity:0-95% RH, non condensing Protection IP40, IP54 option available Construction Heat and shock resistant polycarbonate Connections Two flying leads per lamp/tier both marked with tier number. Terminations must be rated to IP20 minimum Mounting Direct base or optional pole mounting, both have vibration absorbing base
70 6570 Compliance
L1 Ø56 L1 273 Ø56 Immunity to EN61000-6-2:2001 Emissions to EN61000-6-4:2001 Weight 350g for one tier and 50g for each additional tier
123 45 123 45 2085 TiersL1 1170mm
Ø22 2240mm 3310mm 4380mm 5450mm
40 60 80 Due to our policy of continuous product development, we reserve the right to amend specifications without notice. Doc LN870-0

LN870 Intrinsically Safe Light Towers - 19514 5

YEAR RTK Instruments Limited St James Business Park, Knaresborough, North Yorkshire, England. HG5 8PJTelephone: +44 (0)1423 580500Facsimile:+44 (0)1423 580501 Web: www.rtkinstruments.com Email: enquiry@rtkinstruments.com GUARANTEE FM14290ISO9001:2000
