Supply With suitable certified interface 18-35VDC, current 20mA Recommended Interfaces Zener Barriers: S951-POS, S967-POS
IS Isolators: WIS1211, WIS1212 Environment Operating temperature:–20ºC to 60ºC Storage temperature:–20ºC to 80ºCHumidity:0-95% RH, non condensing Compliance Immunity to EN61000-6-2:2001
Emissions to EN61000-6-4:2001 Construction Lens – Polycarbonate Protection IP65 when panel mounted Connections M3.5 screw terminal for cables from 0.5 to 2.5mm
ModelNameColour Configuration ATEX certified to EN50014:1997 and EN50020:2002 Group II, Category 2G, EEx ia IIC T4 (Ta –20ºC to +60ºC) Zones 1 or 2. Gas Group IIC, IIB or IIA, Temp Class up to T4 Certificate No. Use in Hazardous Areas It is a simple procedure to replace or change the colour of a panel indicator. Access is from the front of the panel and no tools are required. Simply unscrew the lens and replace the BA9s LED lamp Kema03ATEX1021X In hazardous areas the LED lamps must be powered through suitable intrinsically safe Isolators or Barriers. Up to two LED lamps can be driven from a single IIC interface
RD =Red Safety Parameters
GN =Green AM =Amber Ui = determined by Ii and PiIi = 2APi=1W Ci = Li = 0The device can be powered from anEEx ia IIC certified interface with output parameters lower than those shown above
YW =Yellow WT =White BL =Blue 2 22.5mm diameter hole 85mm apart Mounting

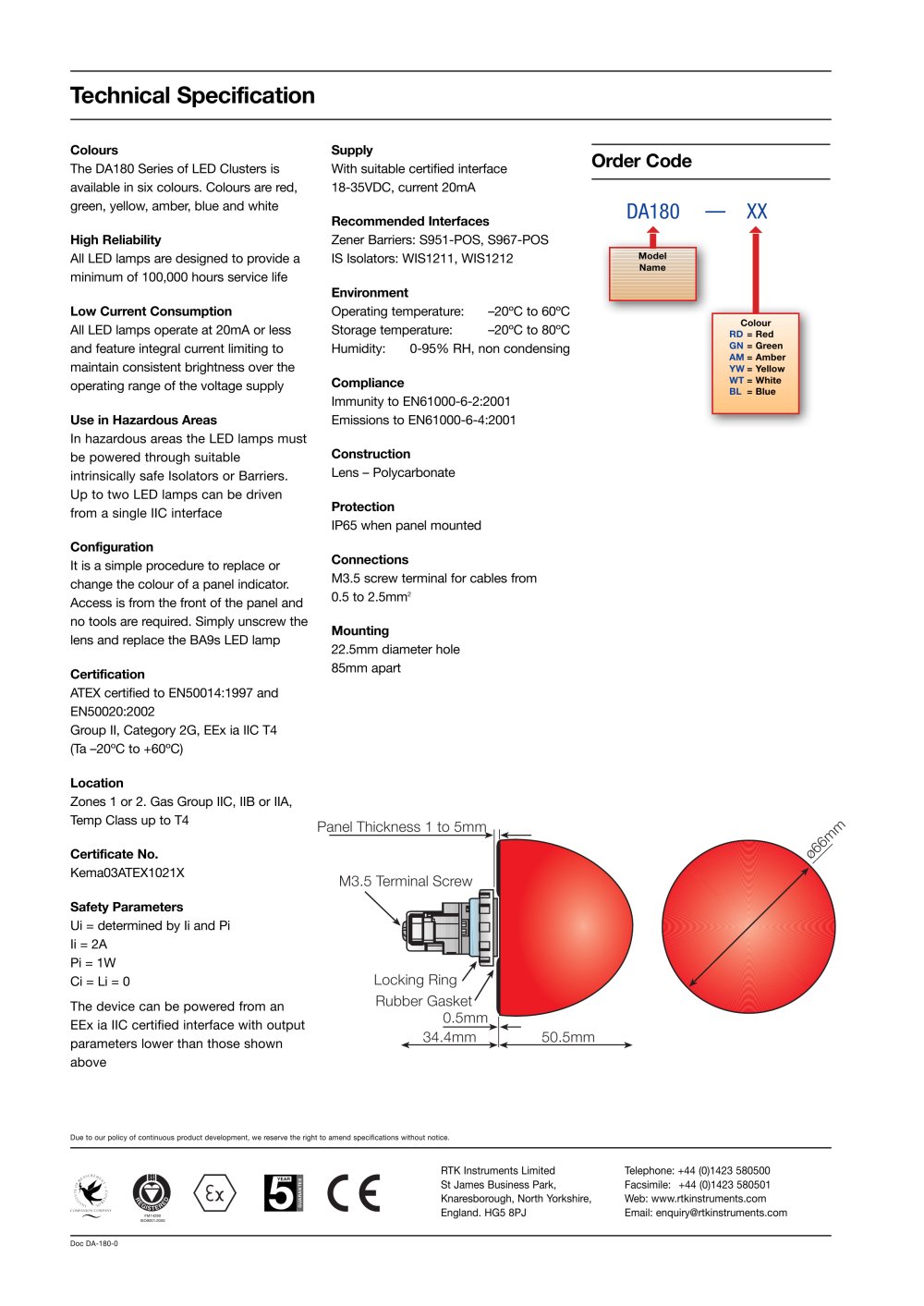

Technical Specification
Colours The DA180 Series of LED Clusters is available in six colours. Colours are red, green, yellow, amber, blue and white High ReliabilityOrder Code
All LED lamps are designed to provide a minimum of 100,000 hours service life Low Current Consumption All LED lamps operate at 20mA or lessand feature integral current limiting tomaintain consistent brightness over theoperating range of the voltage supplyDA180XX
Certification LocationModelNameColour Configuration ATEX certified to EN50014:1997 and EN50020:2002 Group II, Category 2G, EEx ia IIC T4 (Ta –20ºC to +60ºC) Zones 1 or 2. Gas Group IIC, IIB or IIA, Temp Class up to T4 Certificate No. Use in Hazardous Areas It is a simple procedure to replace or change the colour of a panel indicator. Access is from the front of the panel and no tools are required. Simply unscrew the lens and replace the BA9s LED lamp Kema03ATEX1021X In hazardous areas the LED lamps must be powered through suitable intrinsically safe Isolators or Barriers. Up to two LED lamps can be driven from a single IIC interface
RD =Red Safety Parameters
GN =Green AM =Amber Ui = determined by Ii and PiIi = 2APi=1W Ci = Li = 0The device can be powered from anEEx ia IIC certified interface with output parameters lower than those shown above
YW =Yellow WT =White BL =Blue 2 22.5mm diameter hole 85mm apart Mounting
