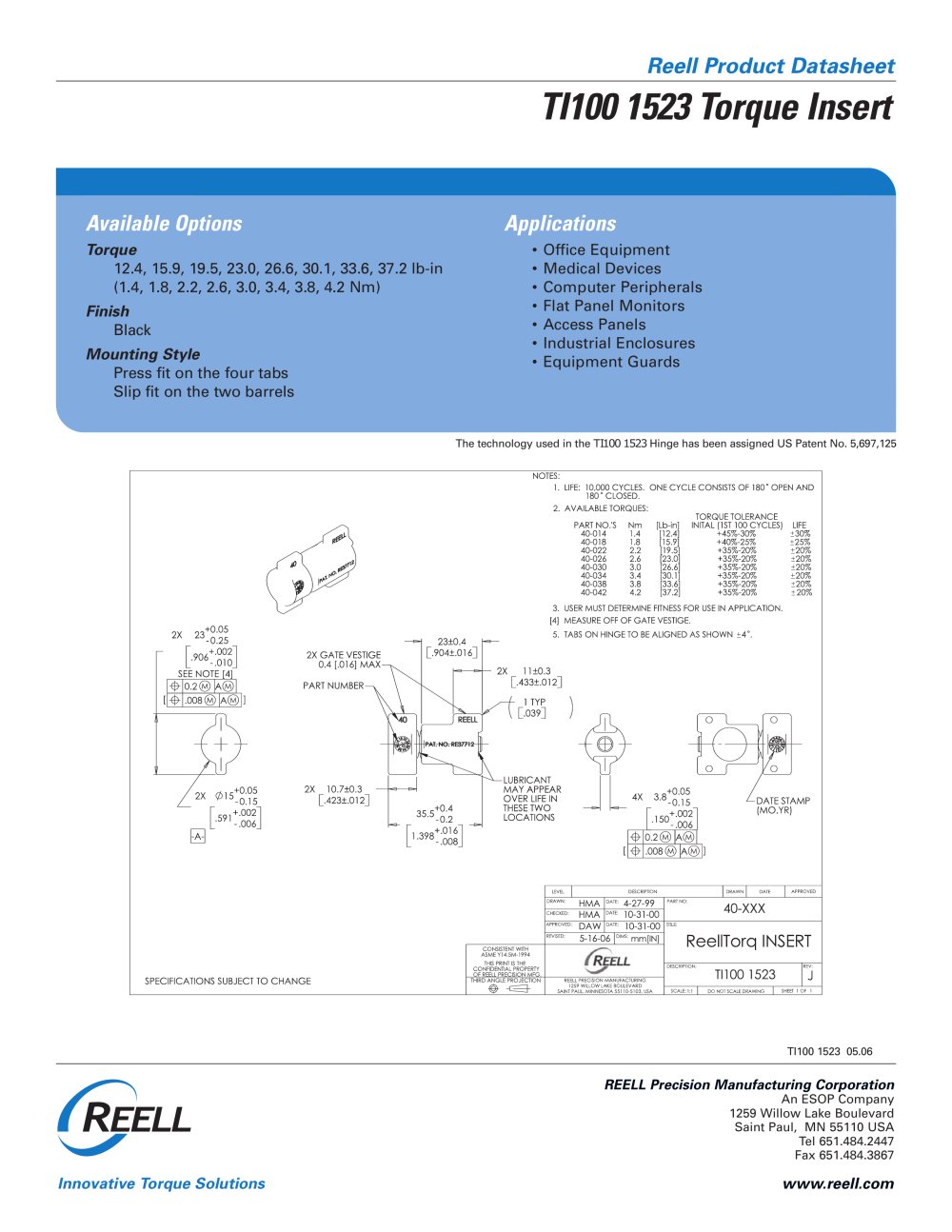

Reell Product Datasheet

Torque Insert :: TI100 1523 - 14319 TI100 1523 Torque Insert

Available Options Applications

Torque •Office Equipment •Medical Devices •Computer Peripherals •Flat Panel Monitors •Access Panels •Industrial Enclosures •Equipment Guards Finish 12.4, 15.9, 19.5, 23.0, 26.6, 30.1, 33.6, 37.2 lb-in (1.4, 1.8, 2.2, 2.6, 3.0, 3.4, 3.8, 4.2 Nm) Black Mounting Style Press fit on the four tabs Slip fit on the two barrels
The technology used in the TI100 1523 Hinge has been assigned US Patent No. 5,697,125 TI100 1523 05.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com
