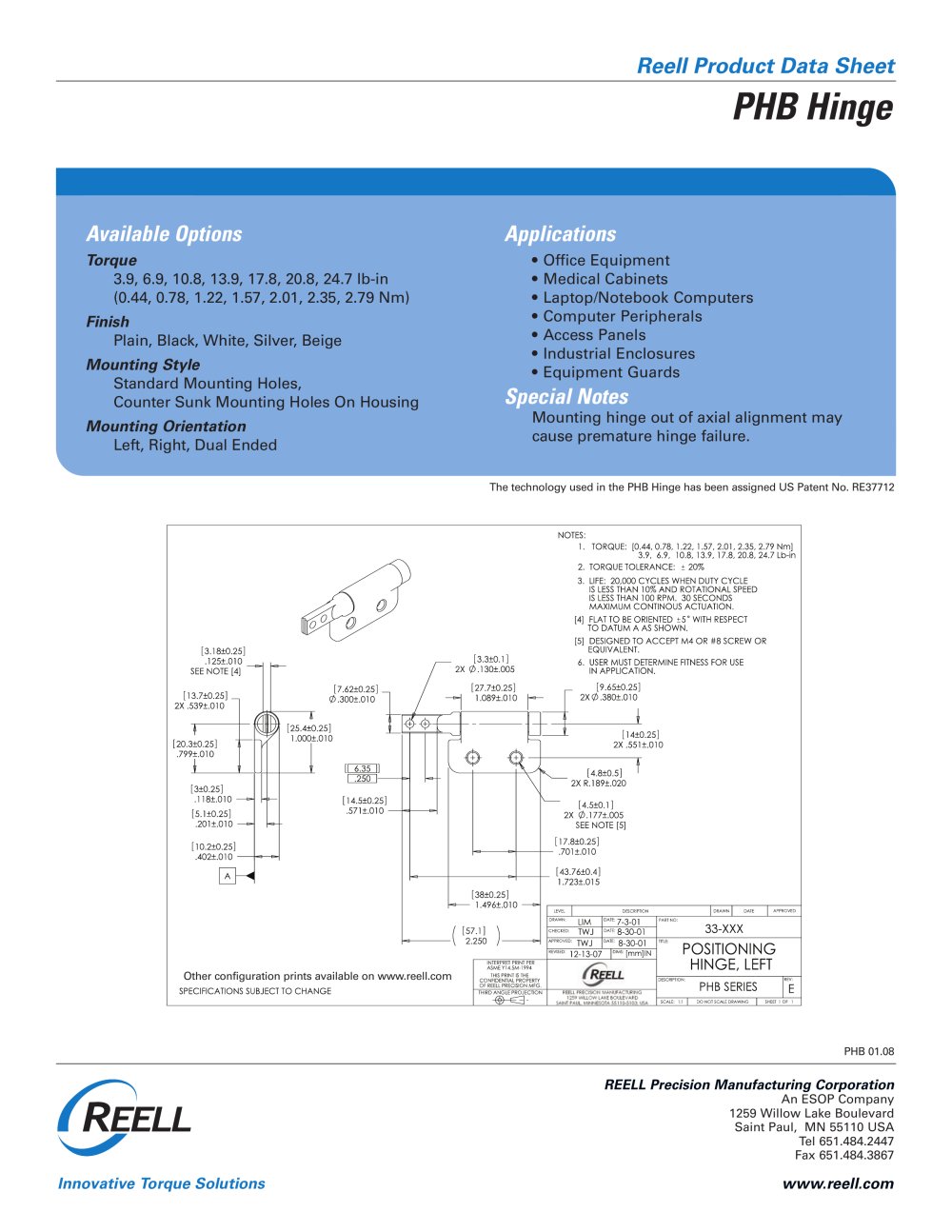

Reell Product Data Sheet

Hinge :: PHB - 14319 PHB Hinge

Available Options Applications

Torque •Office Equipment •Medical Cabinets •Laptop/Notebook Computers •Computer Peripherals •Access Panels •Industrial Enclosures •Equipment Guards Finish 3.9, 6.9, 10.8, 13.9, 17.8, 20.8, 24.7 lb-in (0.44, 0.78, 1.22, 1.57, 2.01, 2.35, 2.79 Nm) Plain, Black, White, Silver, Beige Mounting Style Mounting Orientation Standard Mounting Holes, Counter Sunk Mounting Holes On Housing Left, Right, Dual Ended

Special Notes

Mounting hinge out of axial alignment may cause premature hinge failure.
The technology used in the PHB Hinge has been assigned US Patent No. RE37712 Other configuration prints available on www.reell.comPHB 01.08 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com
