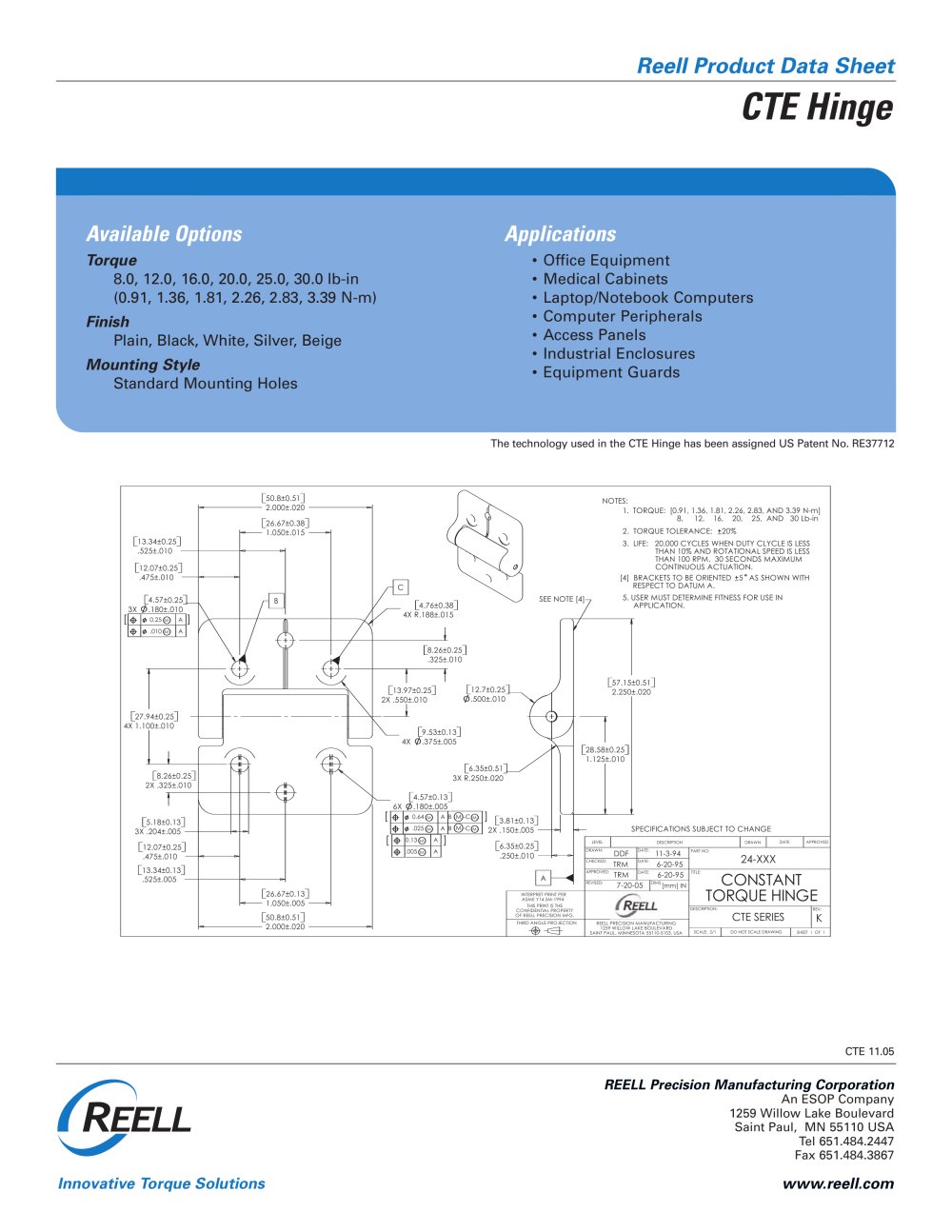

Reell Product Data Sheet

CTE Hinge

Hable Options

Applications

• Office Equipment

• Medical Cabinets

• Laptop/Notebook Computers

• Computer Peripherals

• Access Panels

• Industrial Enclosures

• Equipment Guards

Torque

8.0, 12.0, 16.0, 20.0, 25.0, 30.0 lb-in (0.91, 1.36, 1.81, 2.26, 2.83, 3.39 N-m)

Finish

Plain, Black, White, Silver, Beige

Mounting Style

Standard Mounting Holes

The technology used in the CTE Hinge has been assigned US Patent No. RE37712

[50.8±0.5l] - 2.000±.020

[l3.34±0.25] .525±.010

[12.07±0.25] .475±.010

[13.34±0.13]

.525±.005

NOTES:

1. TORQUE: [0.91, 1.36, 1.81, 2.26, 2.83, AND 3.39 N-m' 8, 12, 16, 20, 25, AND 30 Lb-in

TORQUE TOLERANCE: ±20%

3. LIFE: 20,000 CYCLES WHEN DUTY CLYCLE IS LESS THAN 10% AND ROTATIONAL SPEED IS LESS THAN 100 RPM. 30 SECONDS MAXIMUM

CONTINUOUS ACTUATION.

[4] BRACKETS TO BE ORIENTED ±5'

AS SHOWN WITH

RESPECT TO DATUM A.

5. USER MUST DETERMINE FITNESS FOR USE IN APPLICATION.

[57.15±0.5l] 2.250±.020

SPECIFICATIONS SUBJECT TO CHANGE


^L„ \| o.™ 1 _ \| o„ \|^APPR°»
DDF	^DATE: 11-3-94	24-XXX
™^ED: TRM	^DATE: 6-20-95	24-XXX
APPR°VE^D:	^DATE: 6-20-95	^TTLE CONSTANT TORQUE HINGE
^REVSED: 7-20-05 \|^DIM!Tmm] IN
*(reell*
*(reell*		CTE SERIES K
^ree₂^l₅^l9^pvj^ellc°^io^^a^o^faleva^rrd^g		CTE SERIES K
^ree₂^l₅^l9^pvj^ellc°^io^^a^o^faleva^rrd^g		^SCALE: ^2/1 \| DO NOT SCALE DRAWING \| SHEET 1 OF 1

CTE 11.05

Reell

REELL Precision Manufacturing Corporation

An ESOP Company 1259 Willow Lake Boulevard Saint Paul, MN 55110 USA Tel 651.484.2447 Fax 651.484.3867

Innovative Torque Solutions

www.reell.com
