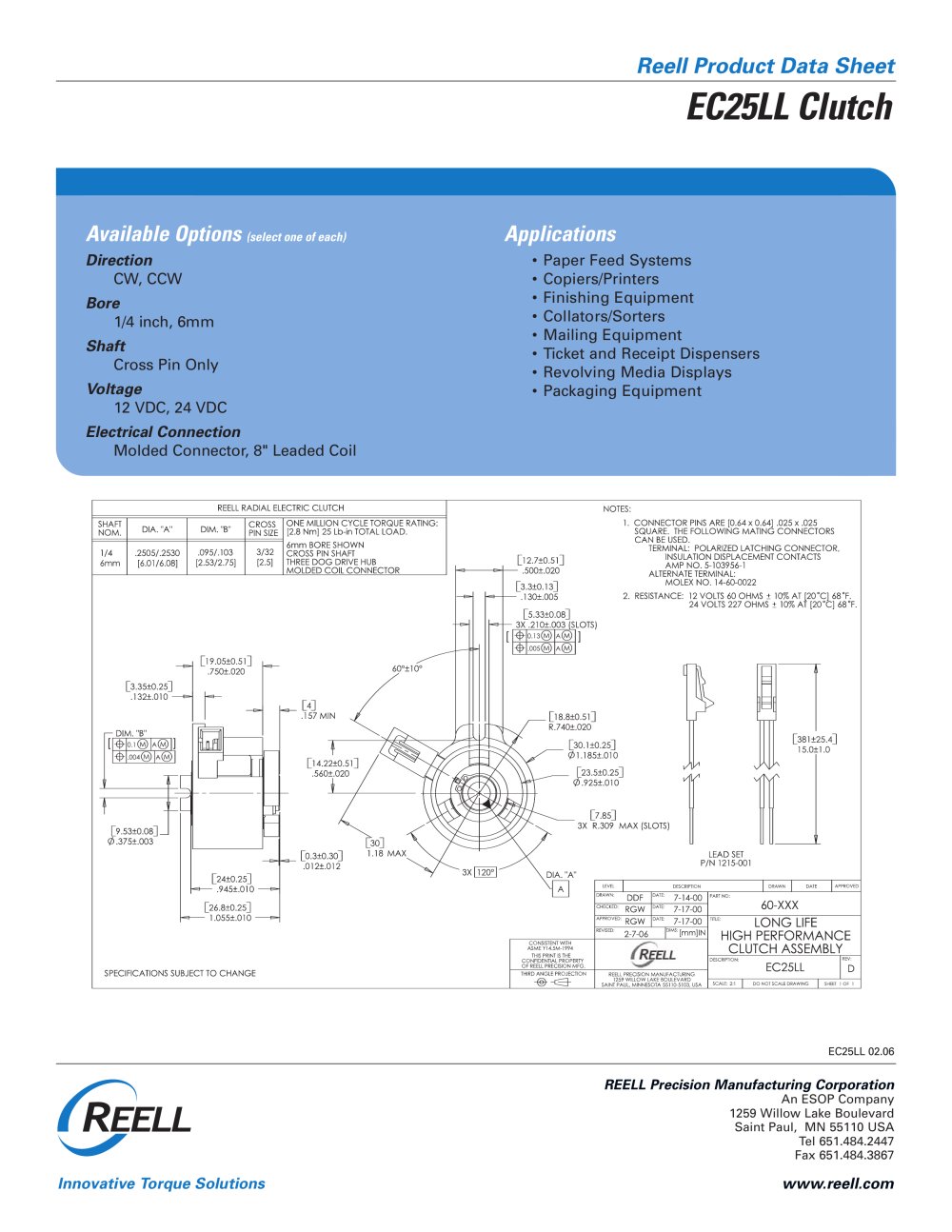

Reell Product Data Sheet

Clutch :: EC25LL - 14319 EC25LL Clutch

Available Options

(select one of each)

Applications

Direction •Paper Feed Systems •Copiers/Printers •Finishing Equipment •Collators/Sorters •Mailing Equipment •Ticket and Receipt Dispensers •Revolving Media Displays •Packaging Equipment CW, CCW Bore 1/4 inch, 6mm Shaft Cross Pin Only Voltage 12 VDC, 24 VDC Electrical Connection Molded Connector, 8" Leaded Coil
EC25LL 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com
